QUICKDESIGNER GE GENIUS •
••
• 105
Port Button
No settings are required since GE GENIUS communication parameters are controlled by the option
module.
Protocol Button

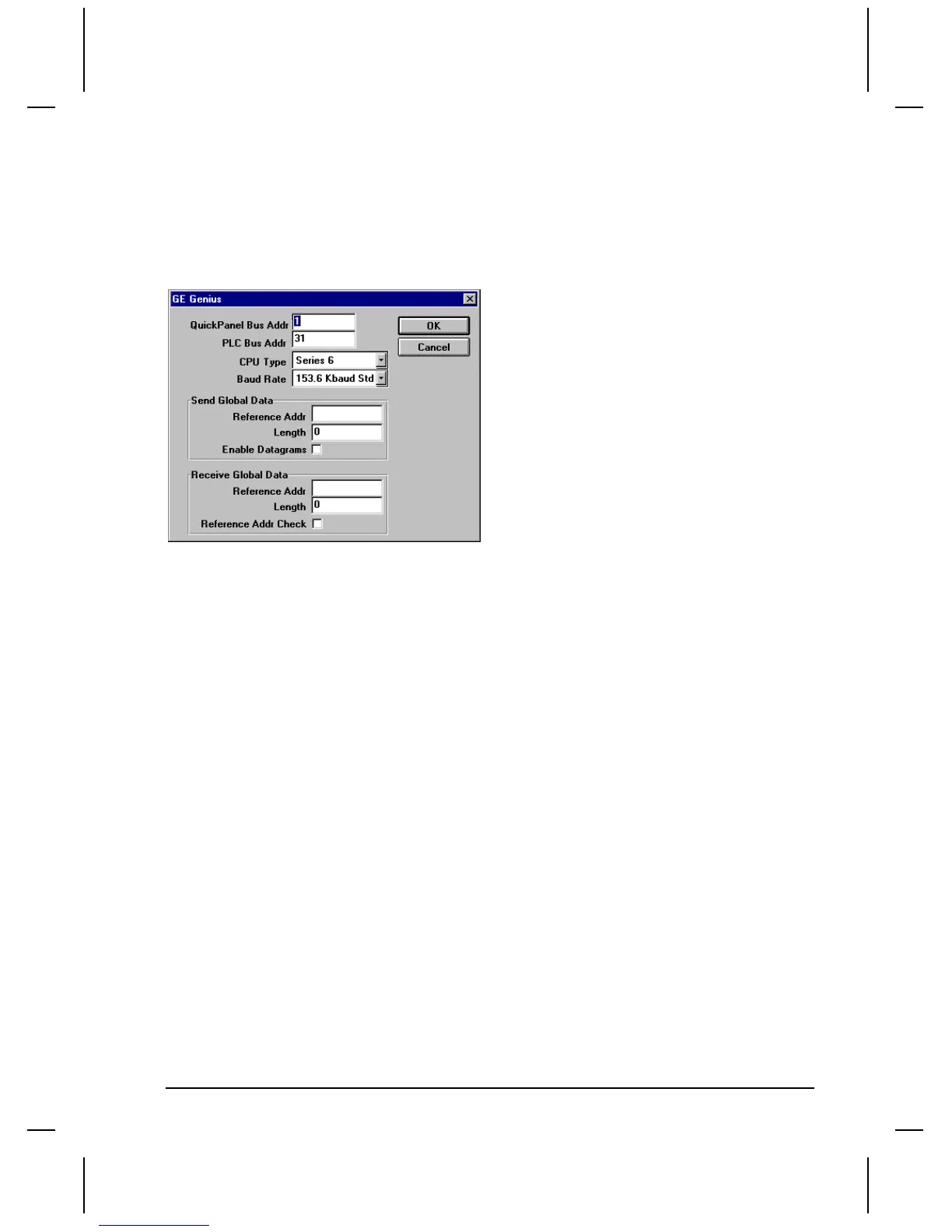

Click the Protocol button to display the dialog box associated with the selected PLC.
QuickPanel Bus Addr
This is the QuickPanel number on the Genius bus. It must be unique. This means that no other device
can have the same Genius bus ID number. Valid bus ID numbers are 0 - 31.
PLC Bus Addr
This is the Genius bus controller node number that is on the bus. It must be unique. This means that no
other device can have the same Genius bus ID number. Valid bus ID numbers are 0 - 31. When global
data is received from this ID number it will be put into the receive data table of this QuickPanel. All
other global data broadcasted from other nodes on the Genius bus network will be ignored (not stored
by this QuickPanel).
CPU Type
Series 6
Series 90
Baud Rate
38.4 Kbaud
76.8 Kbaud
153.6 Kbaud Std (Standard)
153.6 Kbaud Ext (Extended)
