QUICKDESIGNER Toshiba •
••
• 235
Toshiba
Toshiba T1, T2, T3, EX100, EX200B, EX250, EX500, M20/40
This section describes the operation of the target display with the Toshiba series Programmable Logic
Controllers. The T2 and M40 series are presented in detail. The other series are similar in design and
the interface connection is the same.

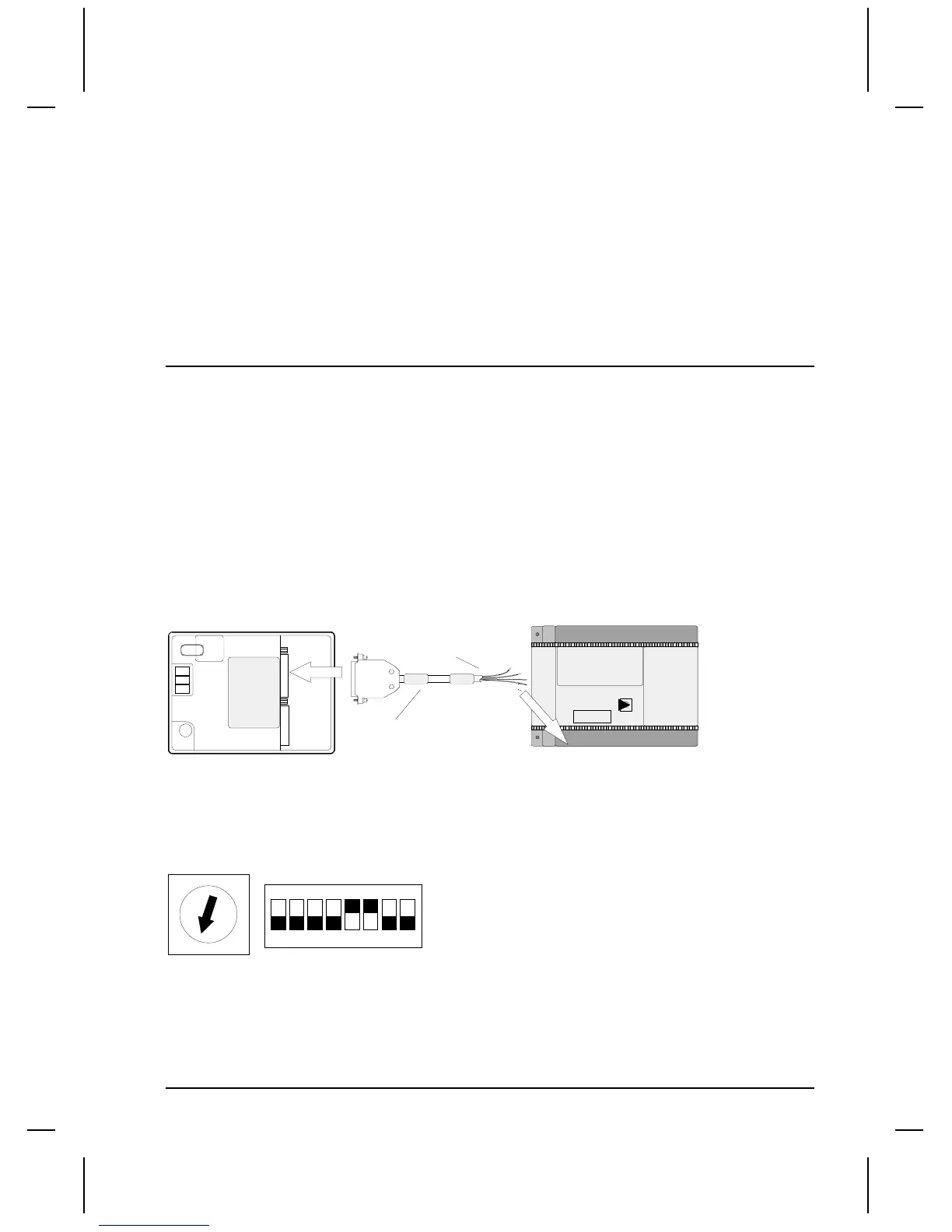

Connecting a target display to a Toshiba M20/40
The connection between a target display and the EX100 and M20/40 series PLC is RS-485, half
duplex. The protocol can support 16 stations up to a maximum distance of 1km.
The terminal connections are located under the lower terminal cover. RXA and RXB should be
jumpered with a 120 ohm, 1/2 watt resistor.
M40
0
1
2
3
4
5
6
7
8
9
A
B
C
D
E
F
QUICKPANEL jr.
TO TOSHIBA
EX100, M20/40
TO TCP DEVICE
HMI-CAB-C96
TOSHIBA M40
M20/40 Computer Link Switch Settings
The station selector switch and the dipswitches are located under the operation control switch cover.
Set the station number on the rotary switch. The dipswitch settings shown in the following drawing are
9600, no parity, computer link enabled and 4K-step mode.
0
1
2
3
4
5
6
7
8
9
A
B
C
E
F
D
1 2345678
ON
