Allen-Bradley SLC 500 Manual

QUICKDESIGNER Allen-Bradley •
••
• 13

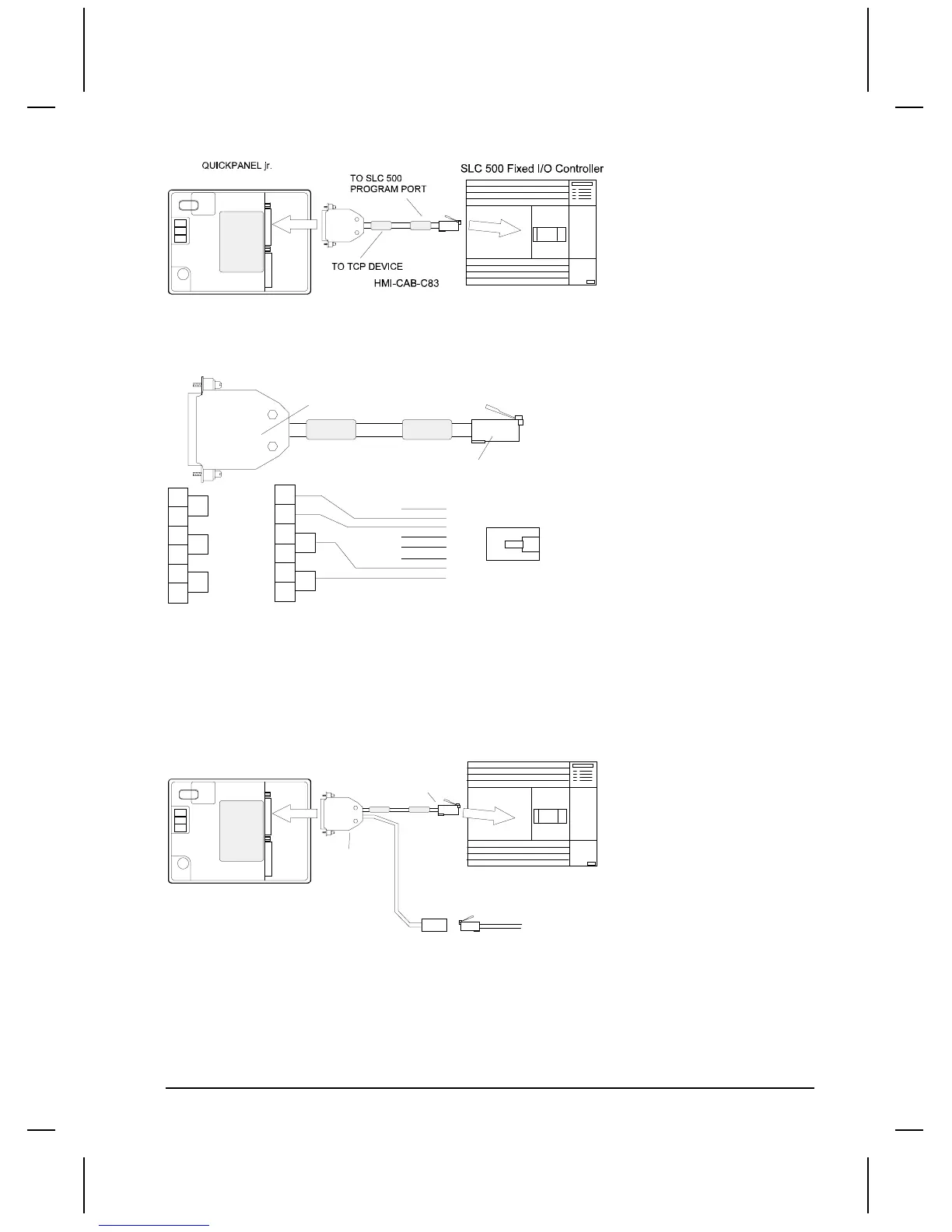

HMI-CAB-C83 Cable
This cable connects the target display serial port to the Allen-Bradley SLC 500 Programming Port.
TO TCP DEVICE
TO SLC 500
25-PIN MALE
8-PIN MODULAR PHONE
RJ-45
PROGRAM PORT
HMI-CAB-C83/A
RJ-45
shield
(--)
red
black
green
TOP
10
(+)
11
15
16
7
GND
1
SHIELD
orange
blue
white
brown
PROPRIETARY INFORMATION
THIS INFORMATION IS PROVIDED AS A
CONVENIENCE TO OUR CUSTOMERS.
YOU ARE NOT AUTHORIZED TO
CONSTRUCT THIS CABLE.
UNAUTHORIZED CABLES ARE
NOT SUPPORTED BY TOTAL CONTROL.
5
4
18
19
21
22
SLC 500 Network Connection for Programming Equipment (DH485)
This connection allows two devices to be connected to the PLC. In this case, a programming terminal
can be connected to the PLC using a 1747-PIC Interface Converter connected to the HMI-CAB-C84
cable.
The drawing shows the connections for adding a second device to the network connection.
HMI-CAB-C84
TO SLC 500
PROGRAM PORT
QUICKPANEL jr.
SLC 500 Fixed I/O Controller
TO TCP DEVICE
TO: Allen-Bradley 1747-PIC
Interface Converter

Allen-Bradley SLC 500 Specifications

General

Programming Software	RSLogix 500
Communication Ports	RS-232, DH-485, DH+
Power Supply	120/240V AC or 24V DC
Programming Languages	Ladder Logic
Operating Temperature	0°C to 60°C (32°F to 140°F)
Relative Humidity	5% to 95% (non-condensing)
Memory	4K to 64K words (depending on the processor)
