50 •
••
• Allen-Bradley QUICKDESIGNER
Allen-Bradley MicroLogix 1000
The MicroLogix 1000 has an RS-232-C communication port configurable for DF1 protocol for direct
connection to a programming device or operator interface. In this configuration, the MicroLogix 1000
is identical to the SLC500 DF1 protocol. To connect a QuickPanel to a MicroLogix 1000 PLC, use the
SLC 500 DF1 protocol selection and an HMI-CAB-C106 cable.

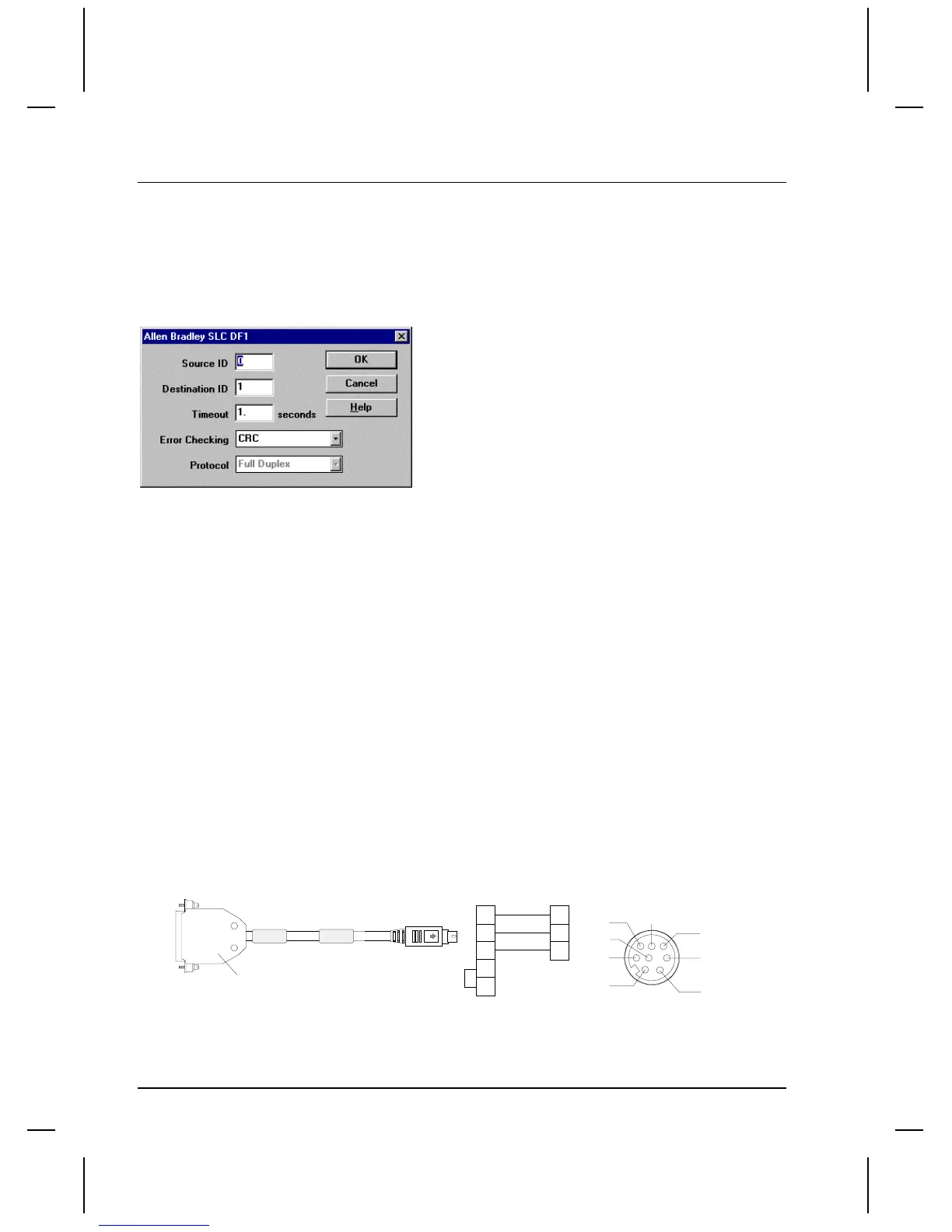

The drawing shows the setup dialog box for A-B SLC500 DF1.
The Source ID is the target display address. The Destination ID is the PLC address where the target
display will get variable data. Enter Timeout in seconds. Select error checking (CRC or BCC) to match
the PLC. Note the Protocol is currently fixed at Full Duplex. Click OK to return to the Project Setup
dialog box.
Serial Port Parameters
Click the Port button to display the Serial Parameters dialog. The port values are automatically set to
standard default values. The following settings are recommended for AB SLC DF1.
Elect. Format RS232
Baud Rate 9600
Data Bits 8
Parity None
Stop Bits 1
Handshake None
HMI-CAB-C106 Cable
This cable is used to connect the target display to a MicroLogix 1000.
A label is placed on each end of the cable to indicate which device should be connected to that end.
One of the labels will also indicate the cable part number so you can quickly verify you are using the
right cable for your application. You can make your own cable using the following wiring diagram.
HMI-CAB-C106
TO TCP DEVICE
TO PLC PORT
3
7
7
4
1
25 PIN MALE
TO PLC PORTTO TCP DEVICE
2
4
5
PIN 8
PIN 5
PIN 2
PIN 1
PIN 3
PIN 4
PIN 6
PIN 7
