MCCP30, MCCP31, MCCP32

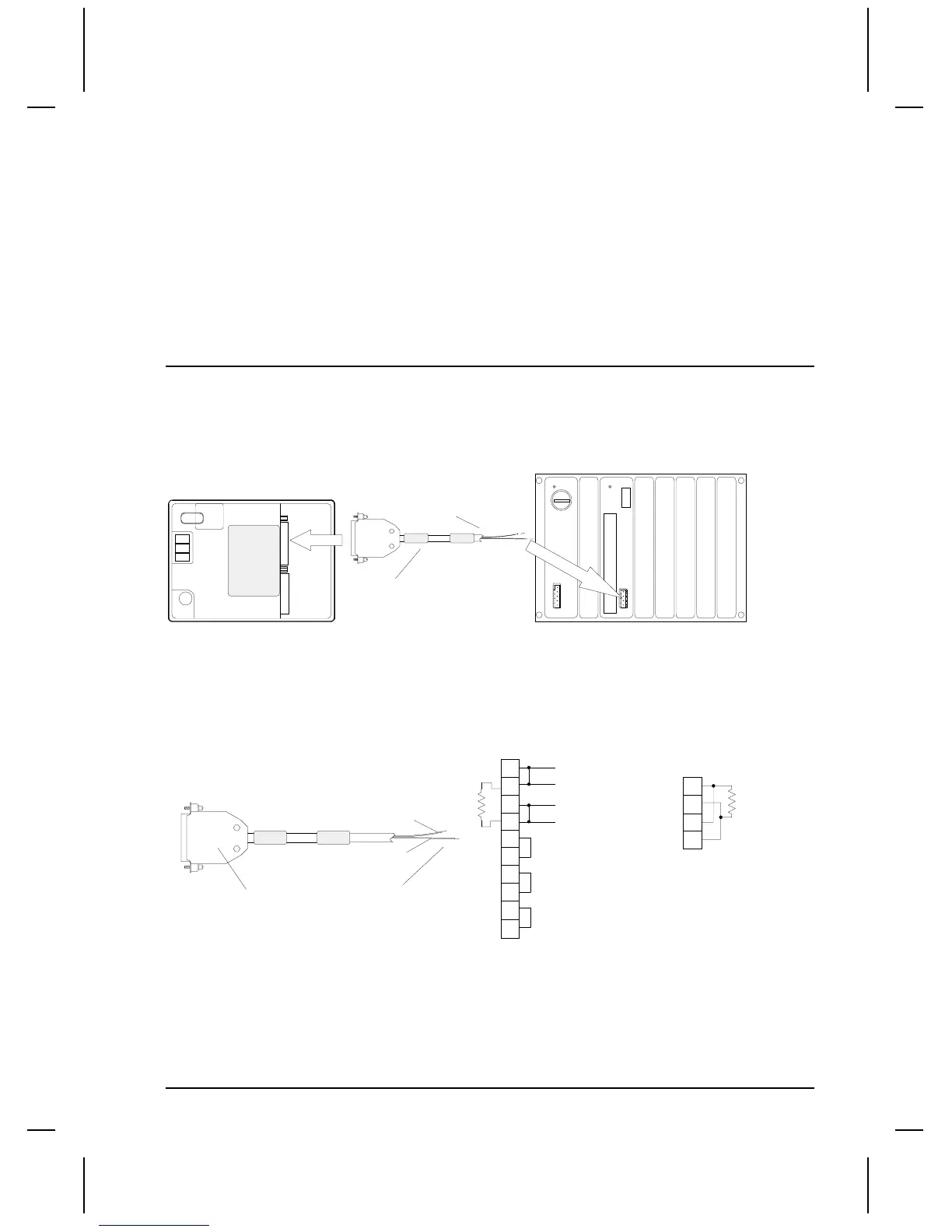

Connecting a target display to a B&R Minicontrol
QUICKPANEL jr.
B&R
TO B&R
TO TCP DEVICE
HMI-CAB-C98
NT/PS
DC out OK
BAT
CPU
STATU S
Serial
Interface
0
1
2
3
B&R
MINICONTROL
+
n.c.
_
+
_
HMI-CAB-C98 Cable
The HMI-CAB-C98 cable has two wires; one marked 0 and the other marked 1. Make sure the wire
marked 0 connects to the 0 terminal and the wire marked 1 connects to the 1 terminal. Jumper 0 to 2
and jumper 1 to 3 on the Phoenix connector. Add a 120 ohm, 1/4 watt resistor between 0 and 1 on the
Phoenix connector.
TO B&R
TO TCP DEVICE
HMI-CAB-C98
TO TCP DEVICE
TO PLC PORT
5
25 PIN MALE
10
4
RESISTOR
120 OHM-.25W
11
15
18
19
21
22
TXA (send data)
RXA (rec data +) ---0
RXB (rec data)
TXB (send data -) ---1
16
0
1
2
3
RESISTOR
120 OHM-.25W
RXA (rec data +) ---0
TXB (send data -) ---1

Allen-Bradley SLC 500 Specifications

General

Programming Software	RSLogix 500
Communication Ports	RS-232, DH-485, DH+
Power Supply	120/240V AC or 24V DC
Programming Languages	Ladder Logic
Operating Temperature	0°C to 60°C (32°F to 140°F)
Relative Humidity	5% to 95% (non-condensing)
Memory	4K to 64K words (depending on the processor)
