• IDEC QUICKDESIGNER
IDEC

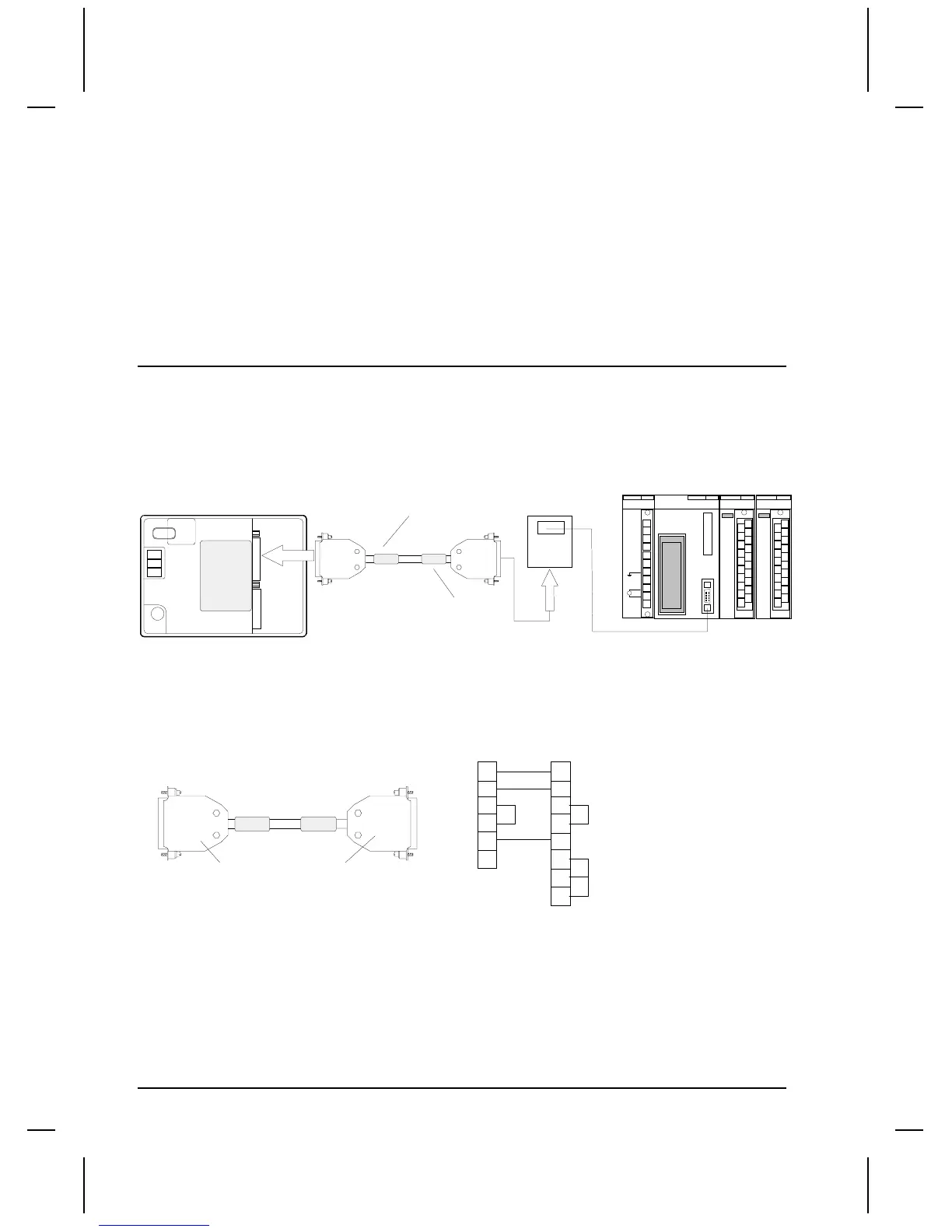

Connecting to an IDEC Link Adapter
The target display connects to an IDEC Micro-1 or FA-3S PLC using an HMI-CAB-C53 cable
connected to the IDEC Link Adapter. The FA-3S is shown in the following drawing.
POWER
SUPPLY
100-240 VA C
PROGRAMMABLE CONTROLLER
idec
FA-3S
IN
PSA1
POWER
CP12
POWER
ERROR
FORCE
N16A1
OUT
R161
QUICKPANEL jr.
TO TCP DEVICE
TO PLC PORT
HMI-CAB-C53
LINK ADAPTER
IDEC FA-3S
The target display connects to the IDEC Micro-1 PLC using an HMI-CAB-C53 cable connected to the
IDEC Link Adapter.
HMI-CAB-C53 Cable
HMI-CAB-C53/A
TO TCP DEVICE
TO PLC PORT
SHIELD
1
3
4
5
7
2
3
4
5
7
25 PIN MALE
TO PLC PORTTO TCP DEVICE
2
6
25 PIN MALE
8
20
