• Hitachi S10 QUICKDESIGNER
Hitachi S10
CAUTION
Do NOT use this protocol with QP1 devices. It is designed to be used with
ONLY QP2 devices. For example, QPJ-2D100-L2P is a QP2 device.

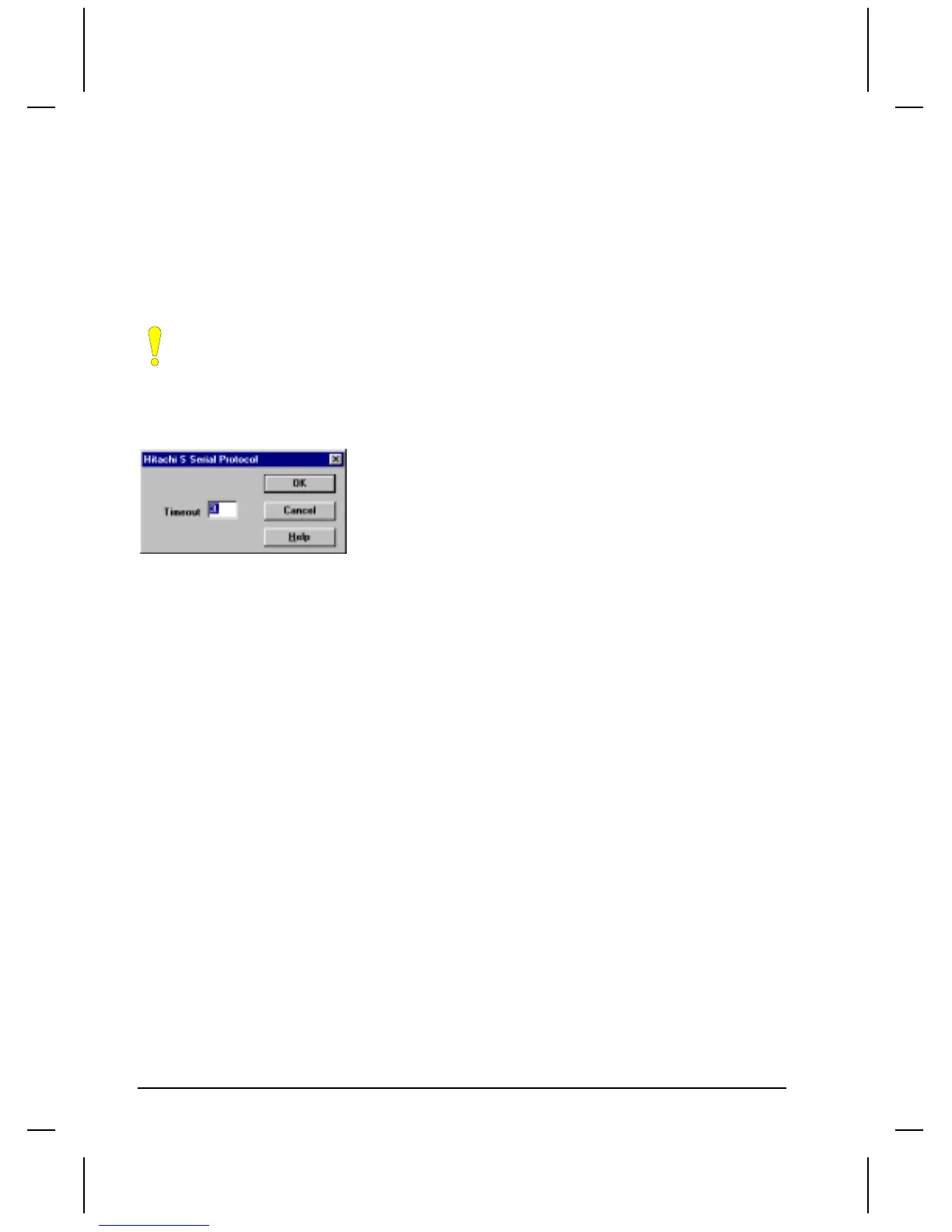

The drawing shows the setup dialog box for Hitachi S Protocol. The default setting for Timeout is
correct for most applications.
Serial Port Parameters for the Display
Click the Port button to display the Serial Parameters dialog. The following settings are recommended
for Hitachi S Protocol.
Elect. Format RS422/485 Half duplex
Baud Rate 19200
Data Bits 8
Parity Odd
Stop Bits 1
Handshake None
Click OK to return to the Project Setup dialog box.
HMI-CAB-C115 Cable
The target display connects to a Hitachi S PLC using an HMI-CAB-C115 cable. Connect the cable to
the PSE port on the PLC.
