Connecting to a PLC-2 Program Port
HMI-CAB-C90
This cable is used to connect the target display to an Allen-Bradley PLC-2 PLC.
A label is placed on each end of the cable to indicate which device should be connected to that end.
One of the labels will also indicate the cable part number so you can quickly verify you are using the

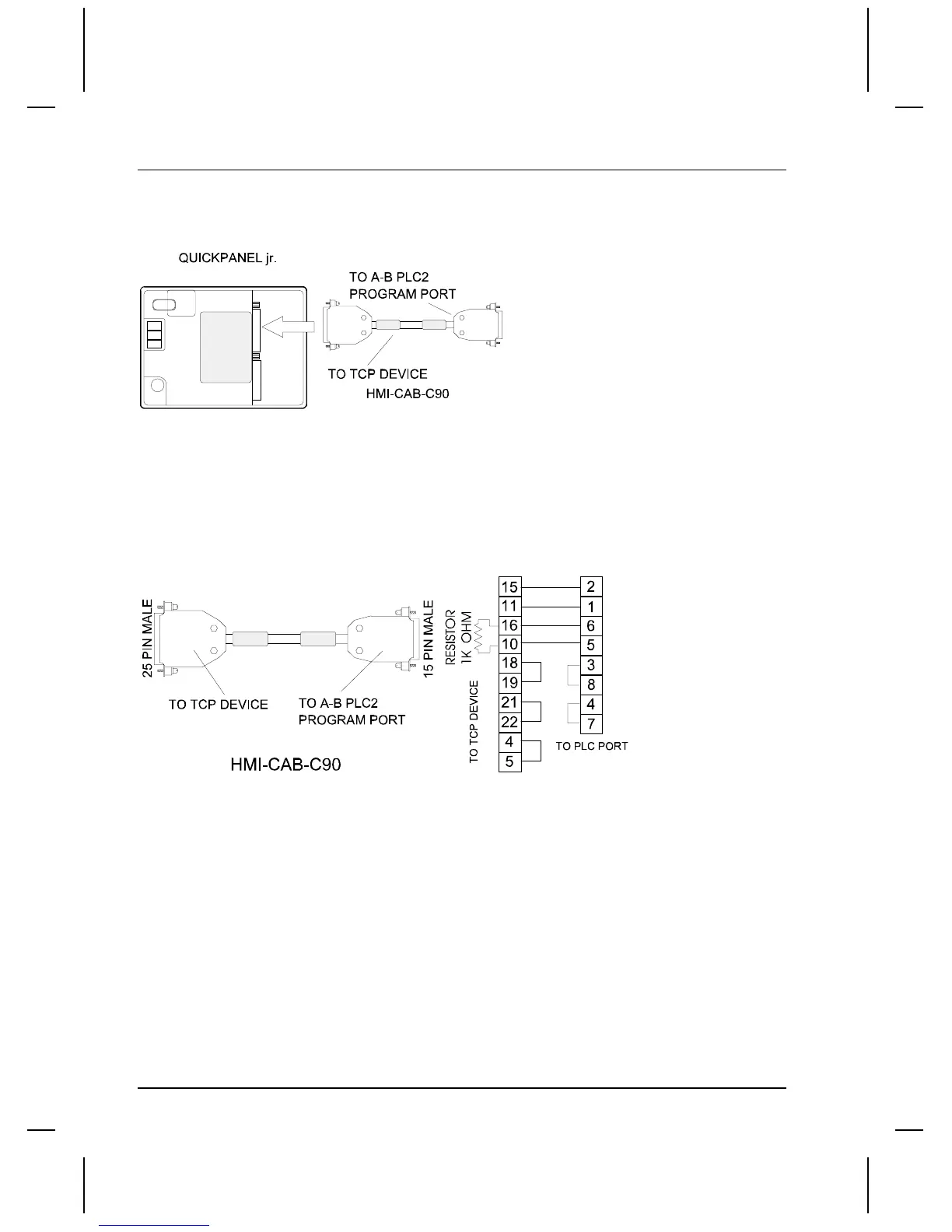

right cable for your application. You can make your own cable using the following wiring diagram.
