180 •
••
• PLC Direct QUICKDESIGNER
PLC Type
Select Direct 405/205 DirectNET from the list box.
Port Button
Click the Port button to display the Serial Parameters dialog. The port values are automatically set to
standard default values. The following settings are recommended for Direct 405/205 DirectNET.
Elect. Format RS232
Baud Rate 19200
Data Bits 8
Parity Odd
Stop Bits 1
Handshake None
Protocol Button

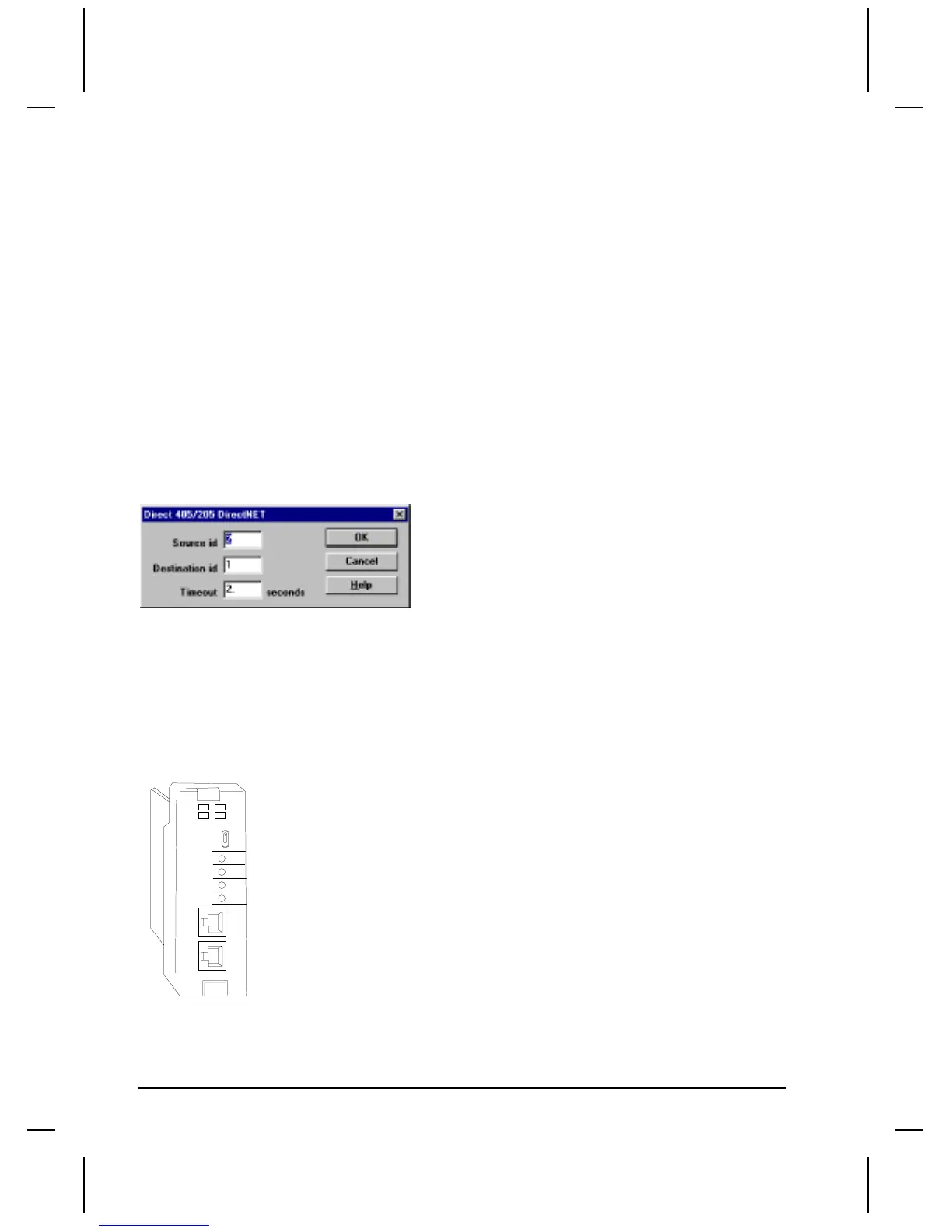

Click the Protocol button to display the dialog box associated with the Direct 405/205 DirectNET
PLC.
Enter the Source ID (QuickPanel ID) and Destination ID (PLC ID). The Timeout setting is correct for
most applications.
Click OK to return to the Project Setup dialog box.
DL240 Cable
The DL240 has two 6P6C phone connectors labeled PORT 1 and PORT2. Note that only PORT2 is a
DirectNET port. Use only PORT2 when connecting to a QuickPanel. The DL240 is shown below.
DL240
RUN
PORT2
PORT1
TERM
RUN
CPU
PWR
BATT
CH1
CH2
CH3
CH4
CPU
Use the HMI-CAB-C86 Cable for connecting a QuickPanel to a Direct Logic DL240 PORT2. (See the
drawing in a previous section).
