242 •
••
• Toyopuc PC1 QUICKDESIGNER
Toyopuc PC1
Toyopuc PC1
CAUTION
Do NOT use this protocol with QP1 devices. It is designed to be used with
ONLY QP2 devices. For example, QPJ-2D100-L2P is a QP2 device.
A computer link card needs to be installed into the bottom slot (Link 1).
Set the communication parameters as follows:
9600 baud
8 Data Bits
Even Parity
1 Stop Bit
RS422 half duplex

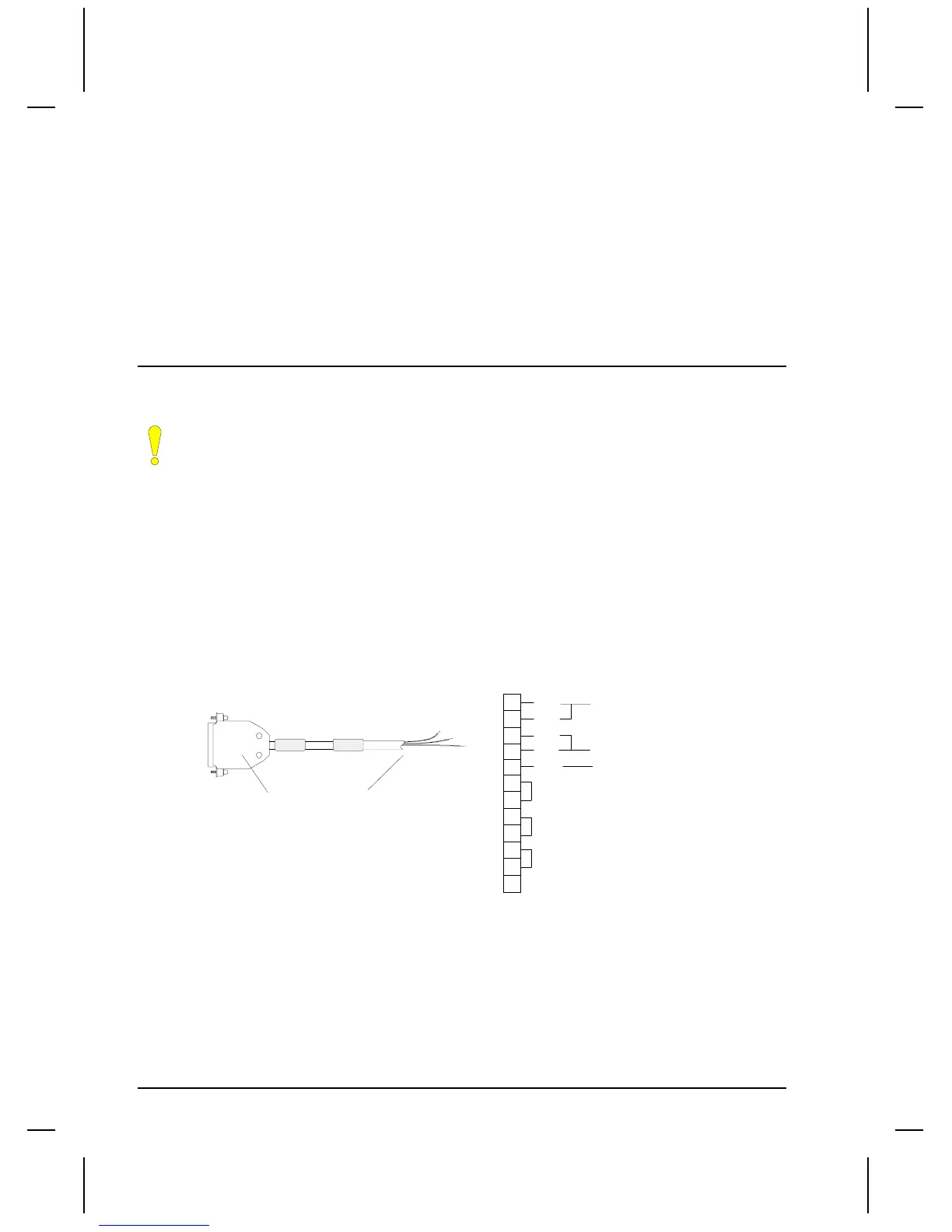

Cable
TO TOYOPUC
TO TCP DEVICE
HMI-CAB-C113
TO TCP DEVICE
TO PLC PORT
SHIELD
7
25 PIN MALE
1
16
10
11
15
18
19
21
22
TXA
RXA
RXB
TXB
GND
(L1) -
(L1) +
5
4
0V
Toyopuc Tag Variables
Bits range from 0 to 3777 octal
Words range from 4000 to 7776 octal
Words can have even addresses only
Valid tag strings consist of the address only
355 = bit 355
4002 = word 4002 (-32768 to 32767)
