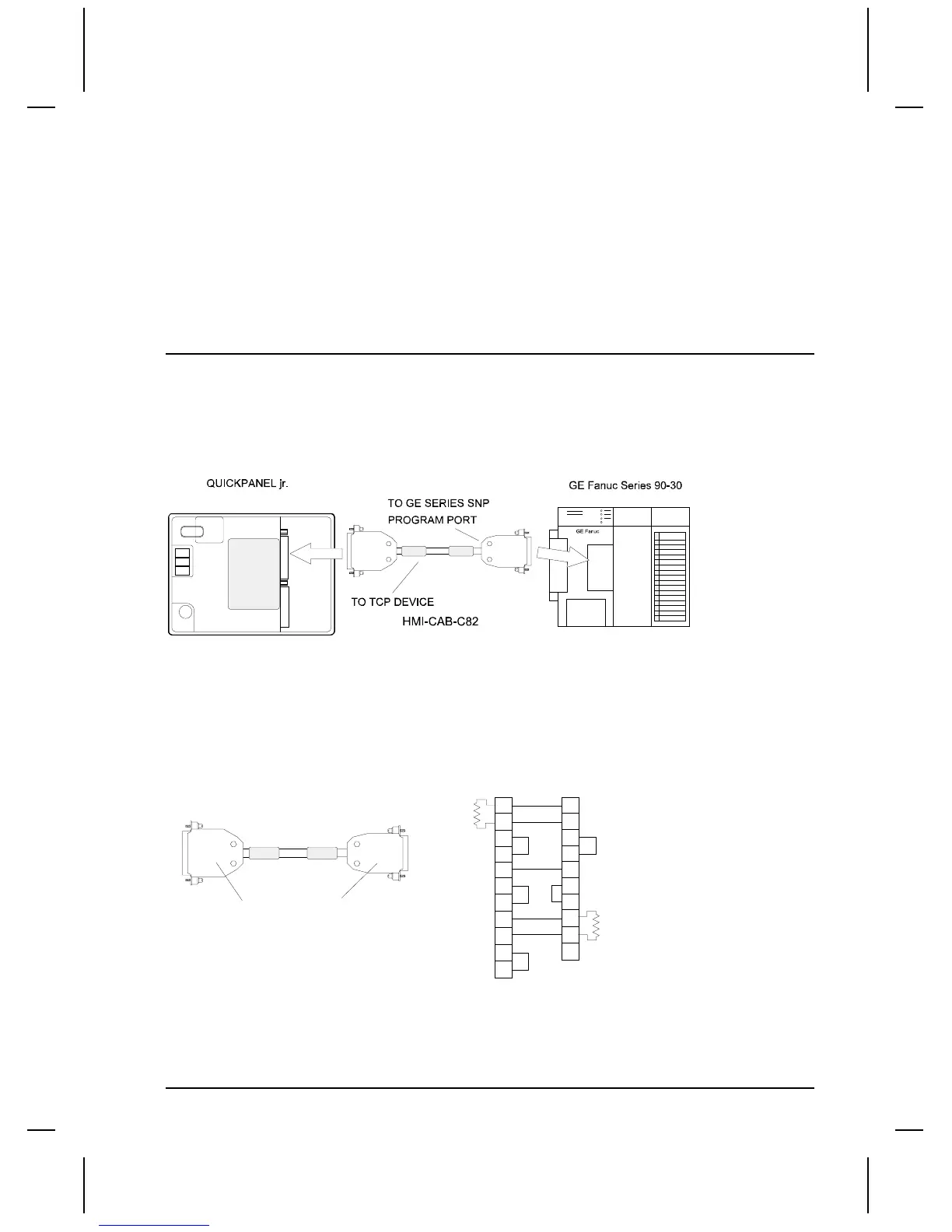

GE Fanuc Single Point Connection (90-30, 90-70)
Make sure you connect the target display to the end marked TO TCP DEVICE and connect the GE
Series SNP Program Port to the end marked GE SERIES SNP PROGRAM PORT.
HMI-CAB-C82 Cable
This cable connects the target display CN1 serial port to the GE Series SNP Program Port.
A label is placed on each end of the cable to indicate which device should be connected to that end.
One of the labels will also indicate the cable part number so you can quickly verify you are using the
right cable for your application. You can make your own HMI-CAB-C82 cable using the following
wiring diagram.
TO GE SERIES SNP
PROGRAM PORT
TO TCP DEVICE
HMI-CAB-C82
TO TCP DEVICE
TO PLC PORT
SHIELD
12
13
5
7
7
6
8
14
25 PIN MALE
15 PIN MALE
1
15
16
10
4
10
11
RESISTOR
120 OHM
RESISTOR
120 OHM
11
15
18
19
21
22
