QUICKDESIGNER Allen-Bradley •
••
• 31
Setup for using an A-B PLC-2 Program Port
Use the following procedure to ensure your target device is setup properly for the Allen-Bradley PLC2.
The procedure is in condensed format. Only the required settings are outlined. For additional details,
see Creating a New Project beginning on page 3.
Project Setup

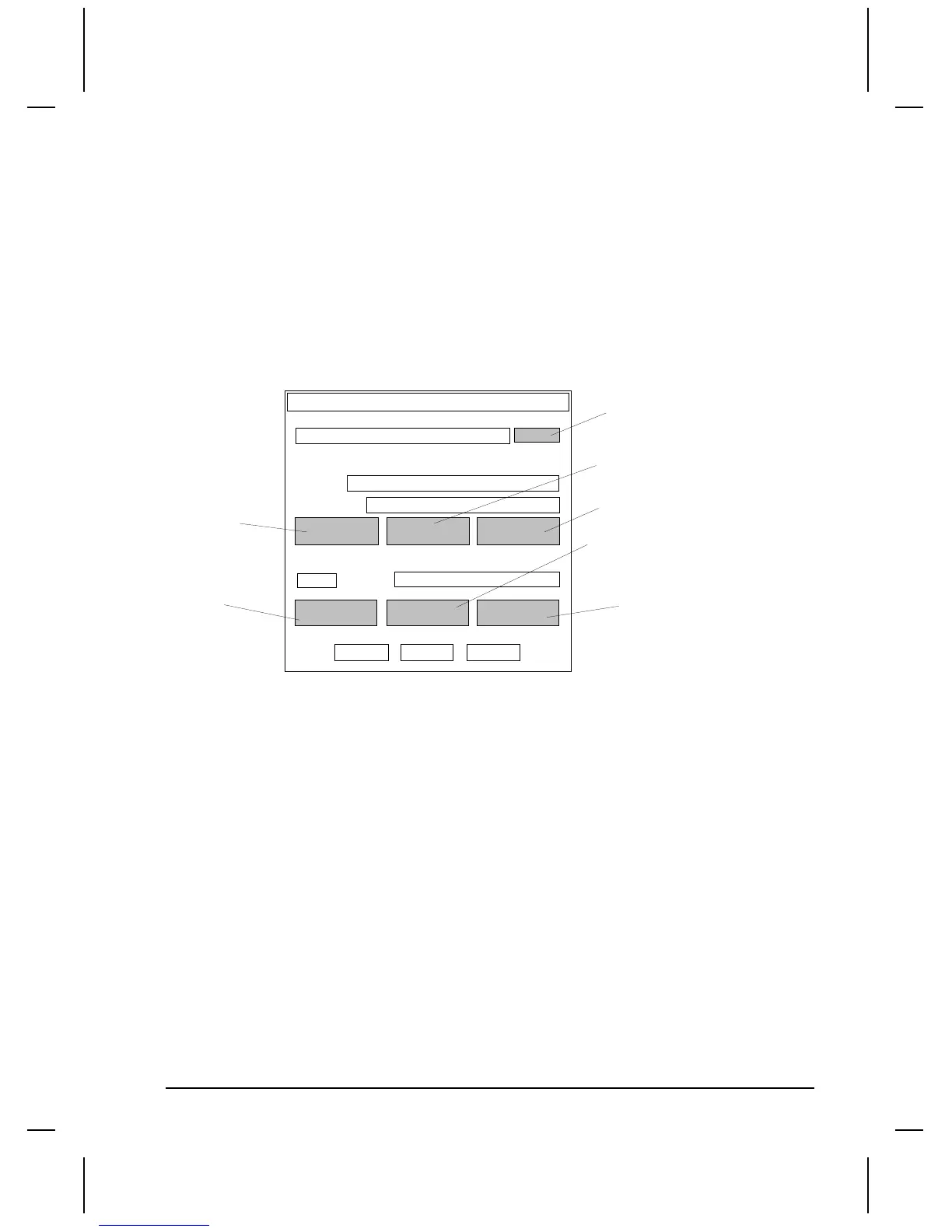

The drawing is a diagram of the Project Setup dialog box. Each button will display an additional dialog
box. Each button is described below. Verify the Project name and Display Device Model are correct.
Leave the Initial Screen name blank.
Project name:
Display Device
Model
Initial Screen
Display
Touch
Print
More
PLC & Protocols
CN1
PLC Type
PLC Protocol name appears here
Port Protocol System
OK Cancel Help
Project Setup
Default Panel Name
Screen Saver Timeout
Panel Trigger Tag
Watchdog Tag
Watchdog timeout
PLC Protocol setup
Disable Beeper
Electrical Format
Serial Parameters
Project name appears in this field
Model description appears in this field
Project Notes
Print (Inactive)
PLC Type
Select the PLC type from the list box. (AB PLC2 Prog. Port). See PLC Type on page 5.
Port Button
Click the Port button to display the Serial Parameters dialog. See Serial Parameters on page 6. The
following settings are recommended for AB PLC2 Prog. Port.
Elect. Format RS422/485 Full Duplex
Baud Rate 9600
Data Bits 8
Parity Even
Stop Bits 1
Handshake None
To Next Page
