Modicon Slot Mount 984 PLC
(9-pin Modbus Port)

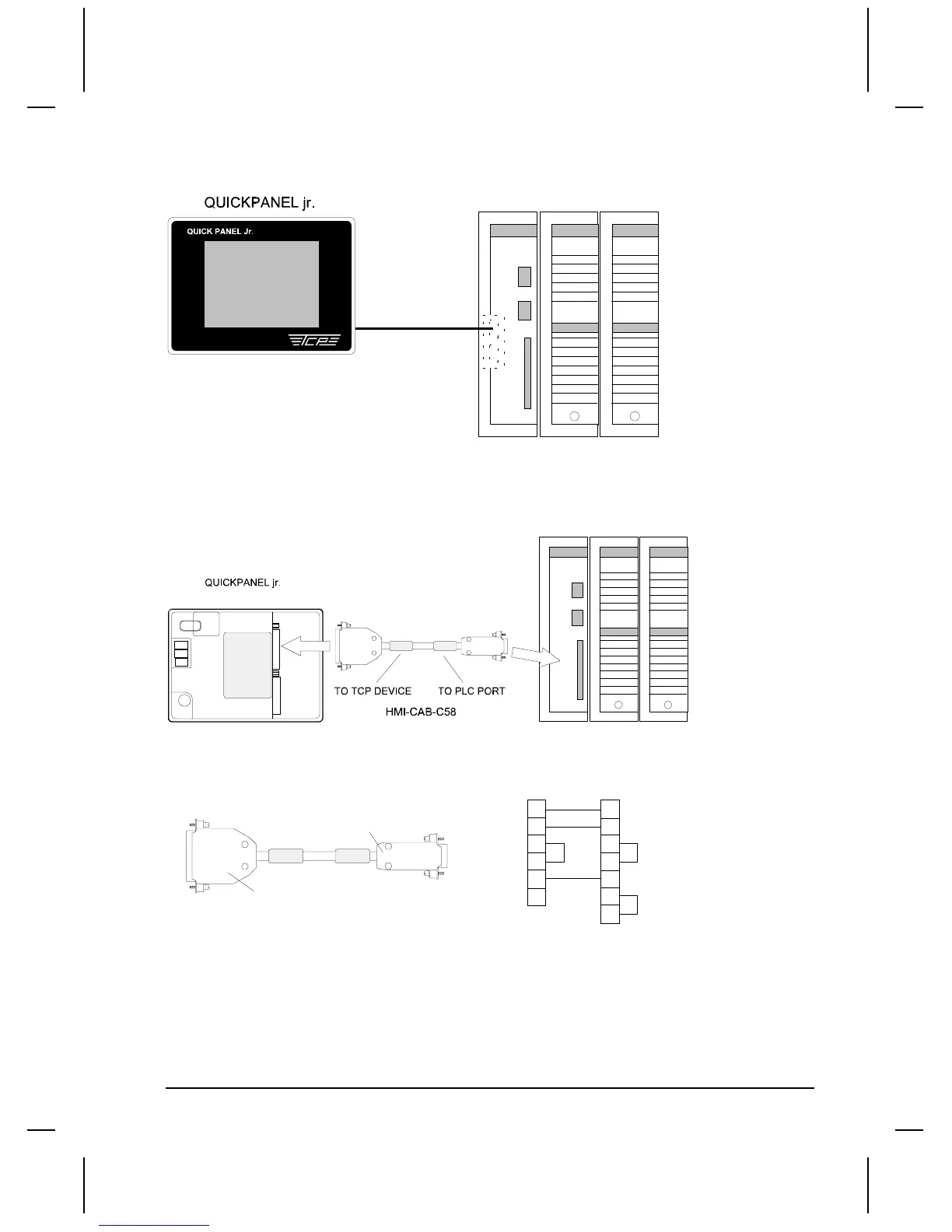

Connecting a Modicon Slot Mount 984 PLC
To connect a target display to a Modicon Slot Mount 984 PLC, use an HMI-CAB-C58 cable,
connected as shown below.
HMI-CAB-C58/A Cable
This cable is used to connect the target display to a Modicon Slot Mount 984 PLC.
TO TCP DEVICE
TO PLC PORT
SHIELD1
2
3
4
5
7
2
3
4
5
6
8
7
25 PIN MALE
HMI-CAB-C58
TO PLC PORT
TO TCP DEVICE
9 PIN MALE
