QUICKDESIGNER Siemens •
••
• 205
Port Button
Click the Port button to display the Serial Parameters dialog. The port values are automatically set to
standard default values. See Serial Parameters on page 6. The following settings are recommended for
TI CCM2 305/405
Elect. Format RS232
Baud Rate 9600
Data Bits 8
Parity Odd
Stop Bits 1
Handshake None
Protocol Button

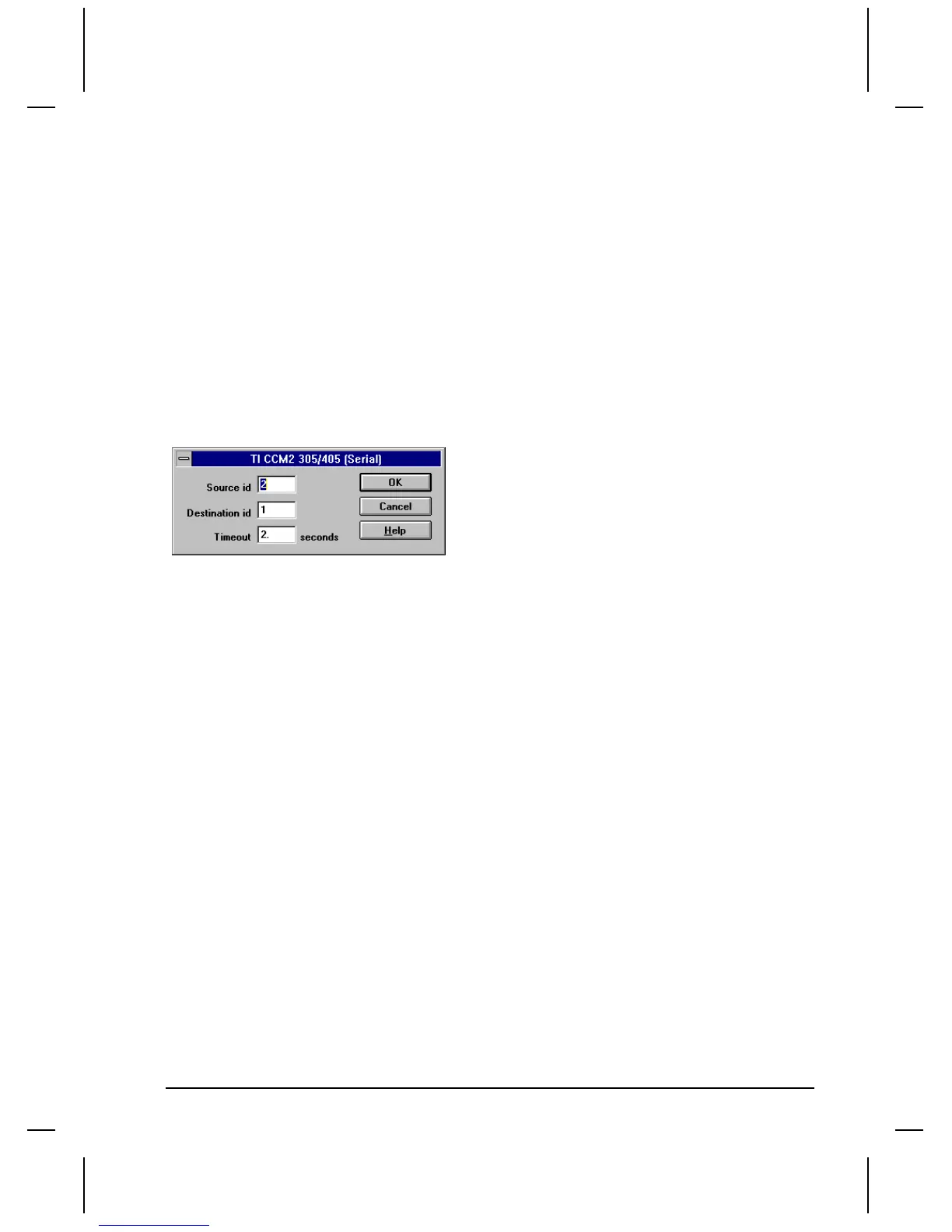

Click the Protocol button to display the dialog box associated with the selected PLC.
Enter the Source ID. Enter the Destination ID. (PLC address). Enter Timeout in seconds.
NOTE: The PLC secondary address should be set to 1, protocol to HEX and parity to ODD.
Click OK to return to the Project Setup dialog box.
Simatic TI 405 Tag Variable Table
Bit writes to C type variables are supported. The process of writing a single bit in a C variable is called
Read-Modify-Write, where the variable is read, the desired bit is changed and the whole byte is written
back to the PLC. If the contents of the C variable is changed by the PLC during the Read-Modify-Write
operation, the byte value will be the new value of the QUICKPANELï›› write operation.
V locations can be interpreted as Signed Integer, Unsigned Integer, or BCD. The normal interpretation
of a V location is Signed Integer. Reading V locations in a different format is done by adding a colon
and a suffix to the V location address.
V100:C Read or Write the contents of V100 as BCD 0000-9999
V100:I Read or Write the contents of V100 as Signed Integer -32767 to 32767
V100:U Read or Write the contents of V100 as an Unsigned Integer 0 to 65535
