• Sattcon 05-35 QUICKDESIGNER
Sattcon 05-35
Sattcon 05-35
Cable

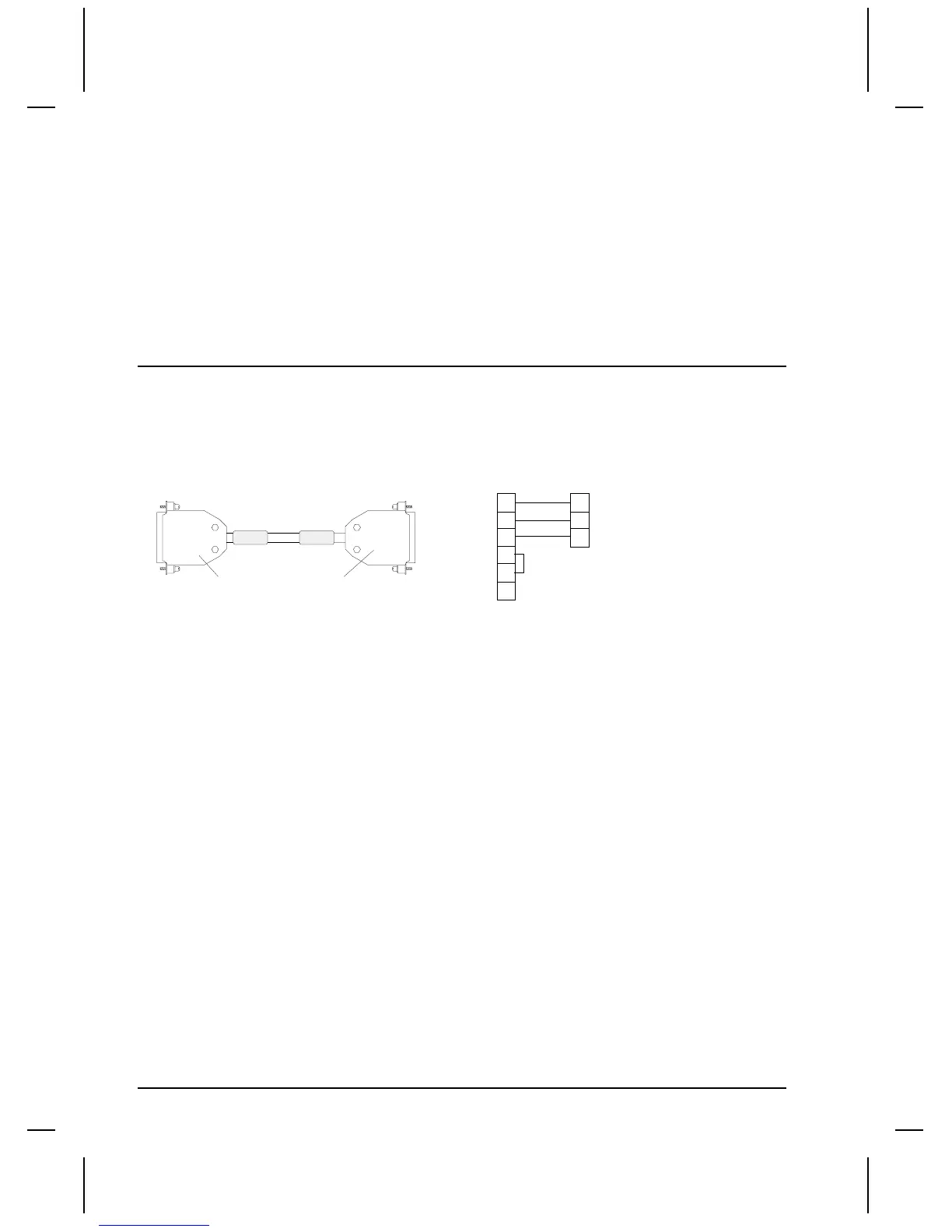

Use the HMI-CAB-C89 Cable for connecting a QuickPanel to a Sattcon 05-35 PLC.
HMI-CAB-C89
TO TCP DEVICE
TO PLC PORT
3
2
3
2
TO PLC PORTTO TCP DEVICE
25 PIN MALE
7
7
SHIELD
1
4
5
25 PIN MALE
Setup the QuickPanel to RS232C, 9600 baud, 8 data bits, none parity, 1 stop bit, and no handshake.
Connect the HMI-CAB-C89 cable between the I/O port on the QuickPanel and the port on the PLC.
Tag Variable Table
Name Address range Value range Writeable Type
R 0-3071 0-65535 Y integer
IOW 0-37760 0-65535 Y integer
Raaaa.bb 0-15 0-1 Y integer
0-37777 0-1 Y integer
Note: Raaaa.bb, aaaa is a valid R address, and bb is a bit number from 1 to 15.
