• Idec Micro3 QUICKDESIGNER
Idec Micro3
Idec Micro3 Serial Protocol
CAUTION
Do NOT use this protocol with QP1 devices. It is designed to be used with
ONLY QP2 devices. For example, QPJ-2D100-L2P is a QP2 device.

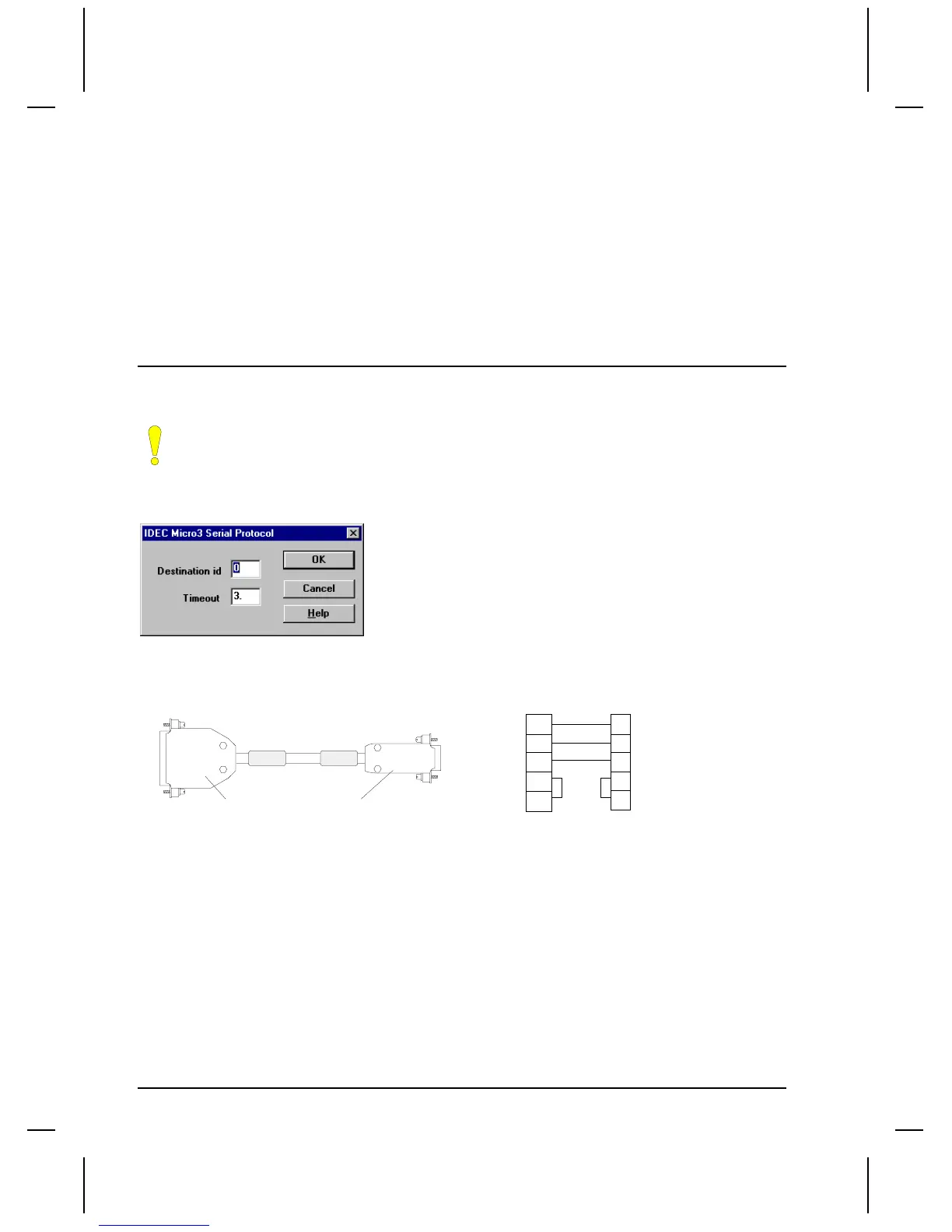

The following dialog box is displayed when you select IDEC Micro3 protocol. The Destination ID is
the address of the PLC.
HMI-CAB-C109 Cable
Use the HMI-CAB-C109 cable to connect the target display to the IDEC Micro 3 PLC.
TO PLC PORT
3
2
7
5
25 PIN MALE
HMI-CAB-C109
TO PLC PORTTO TCP DEVICE
9 PIN MALE
7
3
2
4
5
TO TCP DEVICE
8
