Allen-Bradley SLC 500

146 •
••
• Keyence Program Port QUICKDESIGNER

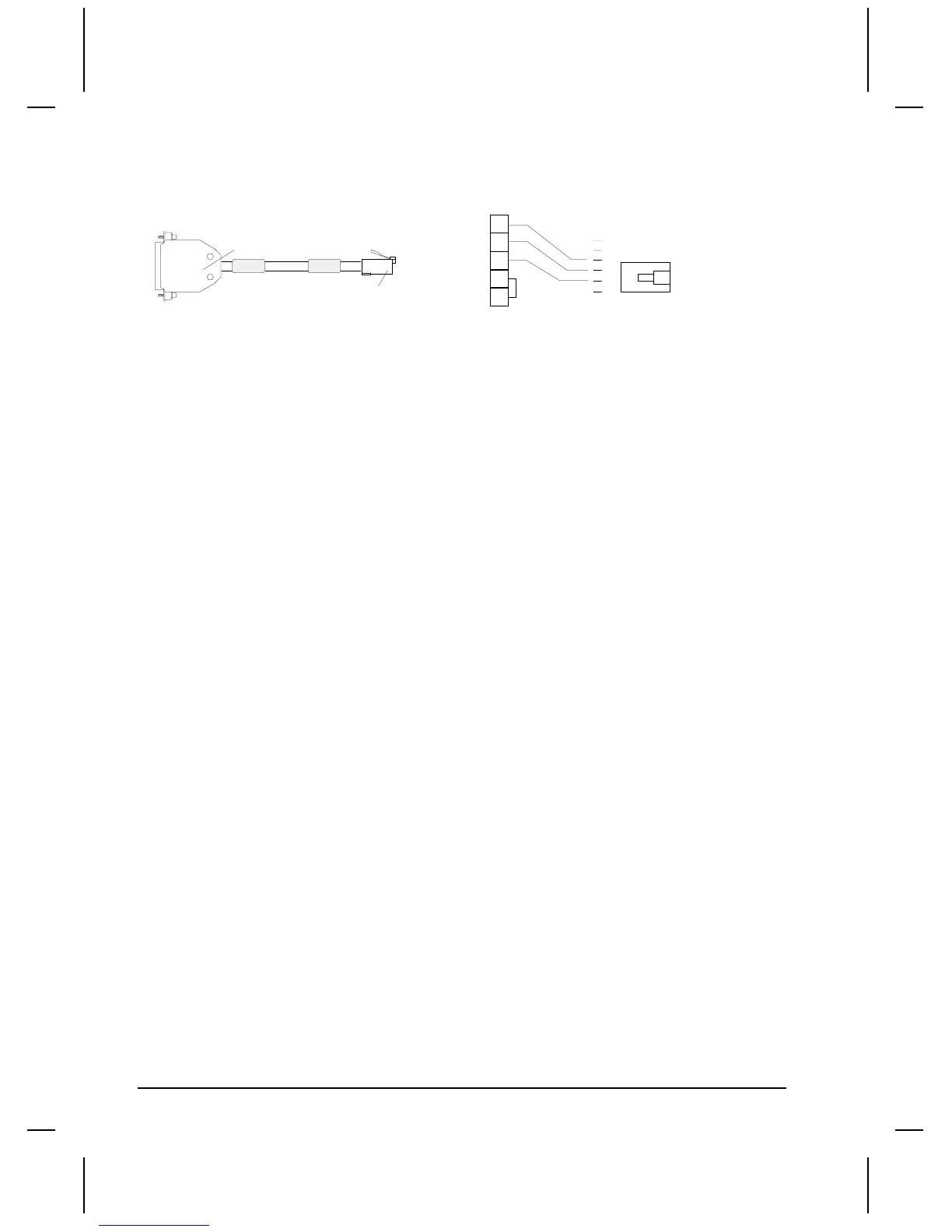

Program Port Cable
TO TCP DEVICE
25-PIN MALE
6-PIN MODULAR
PHONE RJ-11
HMI-CAB-C112
TOP
2
5
4
1
2
3
4
3
7
25-PIN MALE
5
6
TO PLC PORT
TO TCP DEVICE
BLK
RED
ORG
