PLC Direct
DL305 DirectNET
This protocol supports the DirectNET serial interface on many PLC Direct PLCs. This section
describes the operation of the DL305 Series PLC. The series includes the DL330/330P with D3-232-
DCU, DL340 and DL350. The QuickPanel must be connected to a port configured as a DirectNET
Master.
Setup for using a DL305 DirectNET PLC
Use the following procedure to ensure your target device is setup properly for the DL330/330P with
D3-232-DCU, DL340 and DL350 PLC. The procedure is in condensed format. Only the required
settings are outlined. For additional details, see Creating a New Project in the Communications User
Manual.
Project Setup

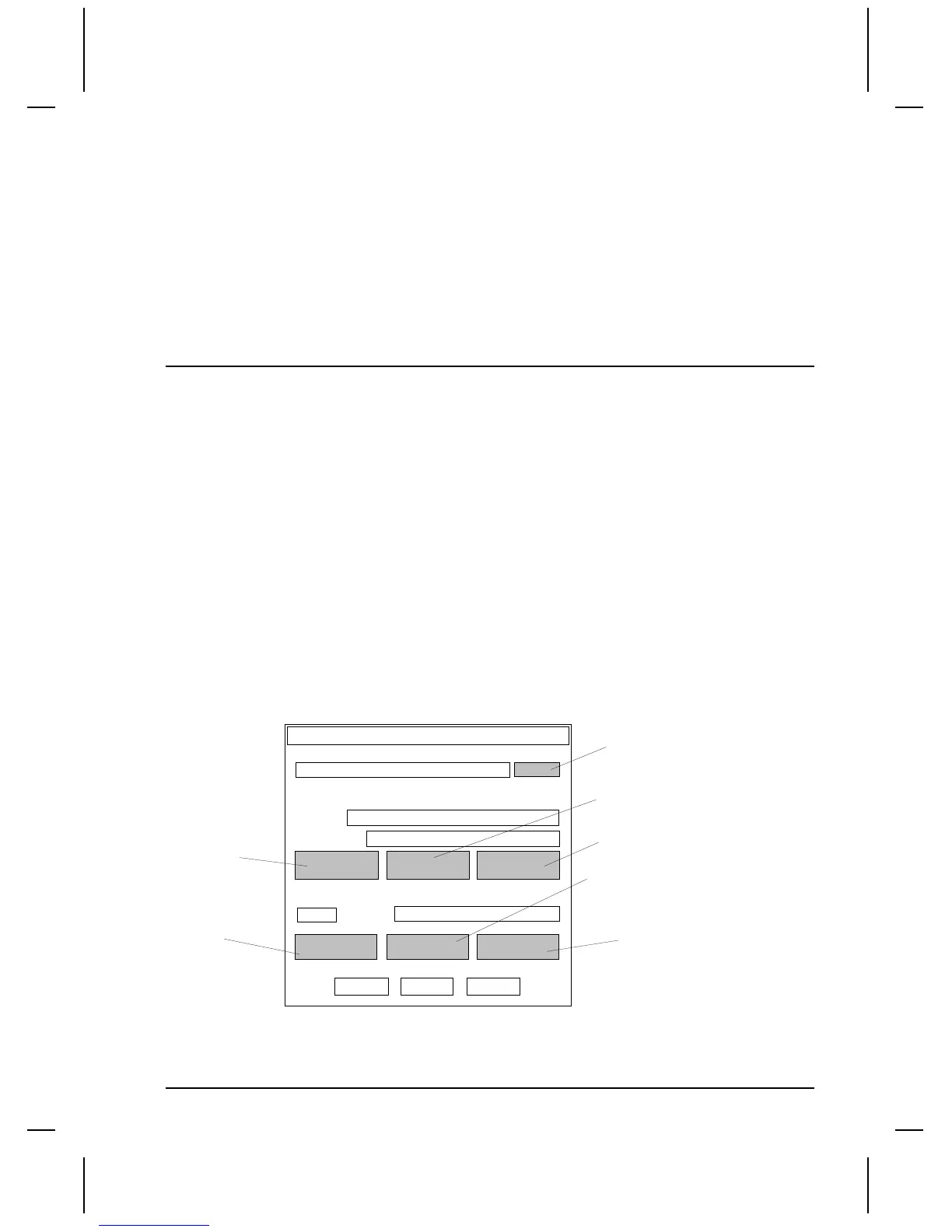

The drawing is a diagram of the Project Setup dialog box. Each button will display an additional dialog
box. Many settings are options and are not required to establish communications. Verify the Project
name and Display Device Model are correct. Leave the Initial Screen name blank.
Project name:
Display Device
Model
Initial Screen
Display
Touch
Print
More
PLC & Protocols
CN1
PLC Type
PLC Protocol name appears here
Port Protocol System
OK Cancel Help
Project Setup
Default Panel Name
Screen Saver Timeout
Panel Trigger Tag
Watchdog Tag
Watchdog timeout
PLC Protocol setup
Disable Beeper
Electrical Format
Serial Parameters
Project name appears in this field
Model description appears in this field
Project Notes
Print (Inactive)
PLC Type
Select Direct 305 DirectNET from the list box.
