• ASCII Flex Protocol QUICKDESIGNER

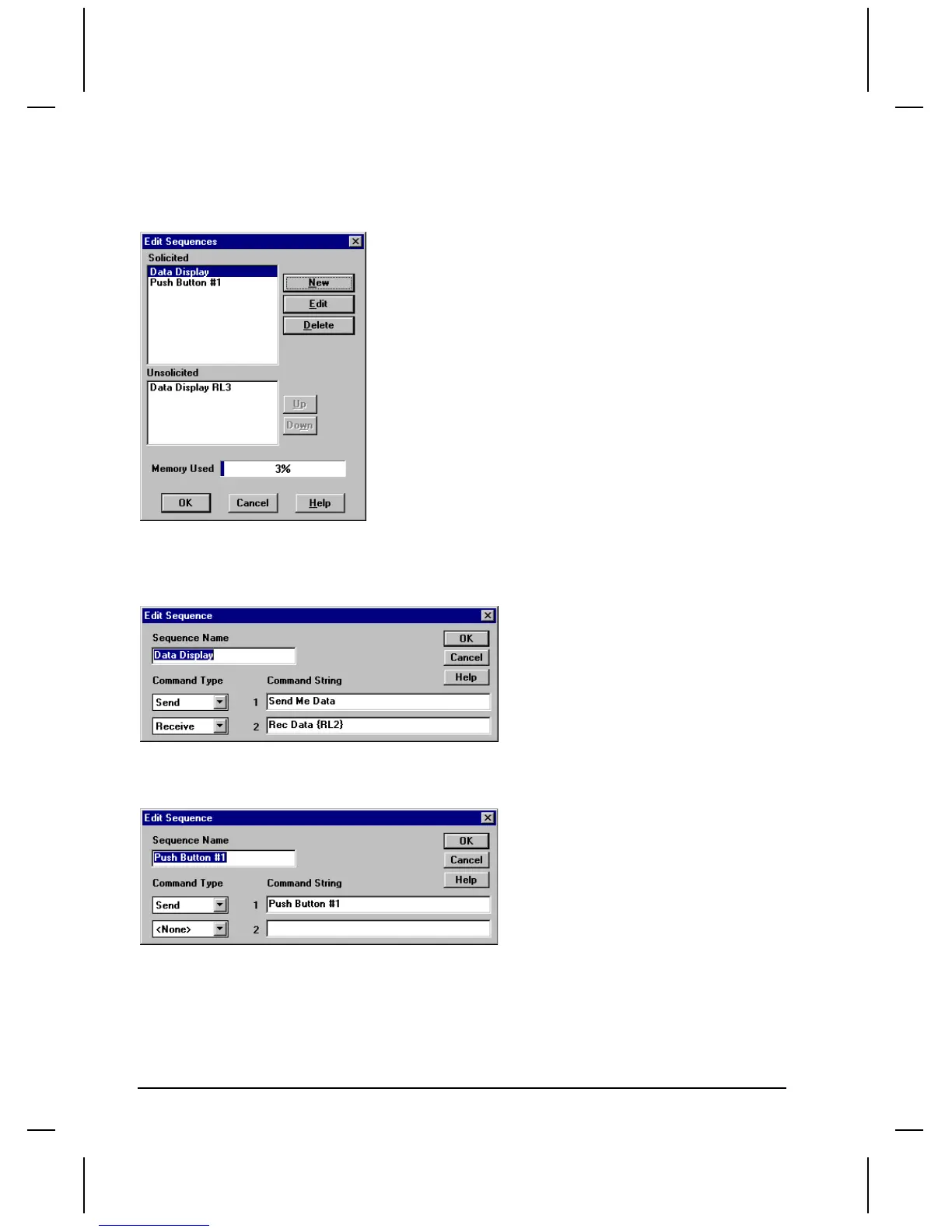

Edit Sequence
The Edit Sequences dialog box shows a list of all Solicited and Unsolicited sequences. Click on any
sequence to Edit or Delete it.
Click the New button to create the sequences for the demo. The first sequence is Data Display. Note
that this sequence has a Send and Receive command. The Command String is sent out and a reply is
expected in the format shown for the Receive Command String. The format must match or an error
message is generated. Note also that the Receive Command String uses RL2 to store the incoming data.
The next sequence is the Push Button. In this sequence, only the Send command is used. The Command
String will be sent to the terminal when the Push Button is pressed. This association will be setup in a
different dialog box.
