QUICKDESIGNER Hitachi S10 •
••
• 125

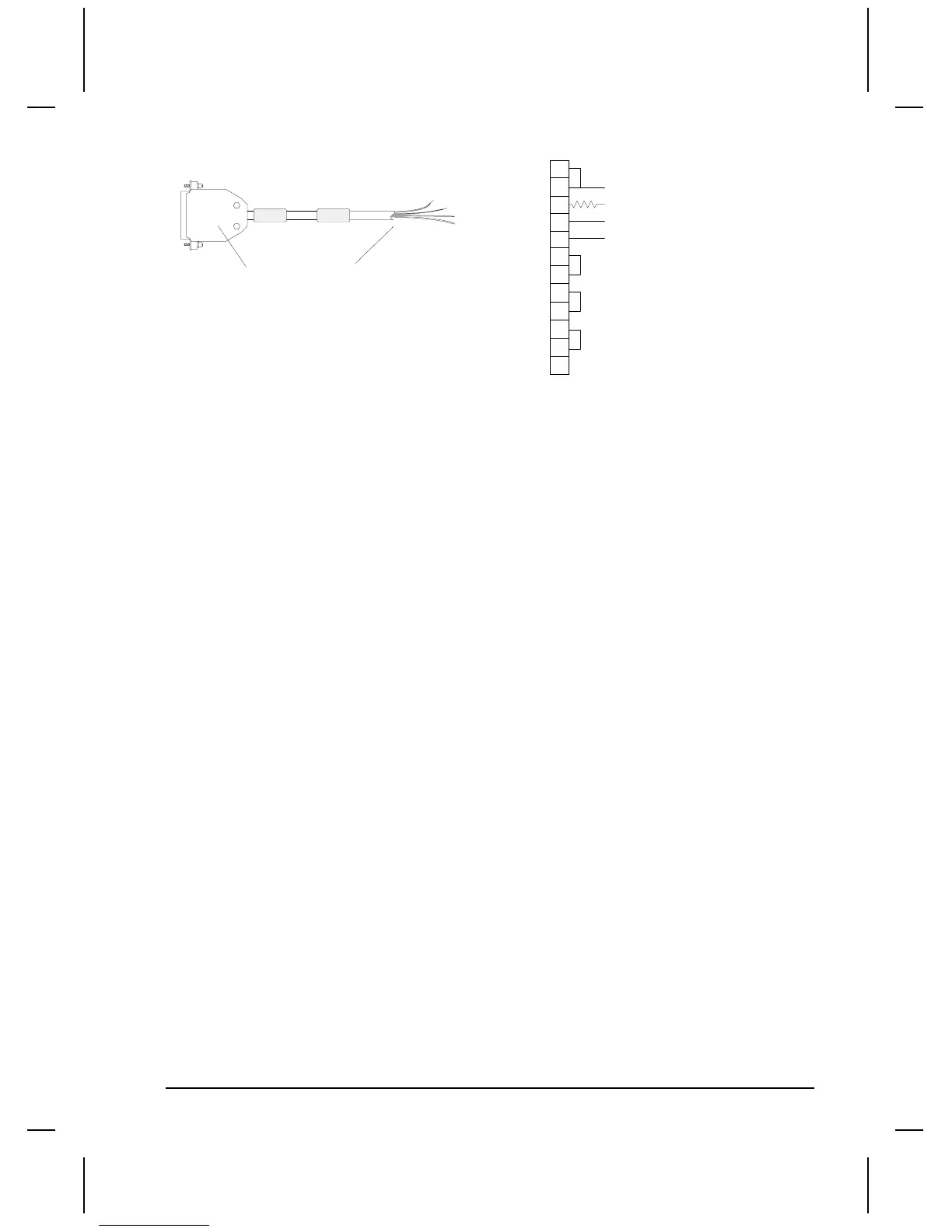

TO HITACHI S10
TO TCP DEVICE
HMI-CAB-C115
TO TCP DEVICE
TO PLC PORT
SHIELD
25 PIN MALE
1
10
15
18
19
21
22
TXH
RXH (1/2W, 100 Ohm)
RXL
TXL
9
11
16
5
4
WORKING CONFIGURATION
Setup the Quick Panel to RS422/485 Half Duplex, 19200 baud, 8 data bits, odd parity, 1 stop bit, and
none handshake. Connect the HMI-CAB-C115 cable between the I/O port on the Quick panel and the
PSE port on the PLC. Verify that the following rotary switches are set as described: MAIN/SUB – 0,
CPU NO. – 3, PROT ADDR. – 0, ADDR. – 1 and 0.
Hitachi S10 Tag Variable Table
Device Adr Range Address Data Range Bit write Read Description & Notes Memory
Prefix Min./Max. Format Min./Max. (y/n/rmw) Write Location
WORDS ONLY
(LSD
is for the bit number, it is ignored with word tools & used with bit tools)
TP 0-1FF
F
3Hex 0 65535 Yes Both On-Delay timer present value F0000
TS 0-1FF
F
3Hex 0 65535 Yes Both On-Delay timer setup value (2) 63000
UP 0-FF
F
2Hex 0 65535 Yes Both One Shot timer present value F0400
US 0-FF
F
2Hex 0 65535 Yes Both One Shot timer setup value (2) 63400
CP 0-FF
F
2Hex 0 65535 Yes Both Up/Down Counter present value F0600
CS 0-FF
F
2Hex 0 65535 Yes Both Up/Down Counter setup value (2) 63600
XW 0-FF
F
3Hex 0 65535 Yes Both Input Relay E0000
YW 0-FF
F
3Hex 0 65535 Yes Both Output Relay E0400
RW 0-FF
F
3Hex 0 65535 Yes Both Internal Relay E0C00
KW 0-FF
F
3Hex 0 65535 Yes Both Keep Relay E1000
GW 0-FF
F
3Hex 0 65535 Yes Both Global Link E0800
SW 0-BF
F
3Hex 0 65535 Yes Both System Register (1) E1E80
EW 0-FF
F
3Hex 0 65535 Yes Both Event E1C00
TW 0-1F
F
3Hex 0 65535 Yes Both On-Delay timer E1300
UW 0-F
F
3Hex 0 65535 Yes Both One Shot timer E1500
CW 0-F
F
3Hex 0 65535 Yes Both Up/Down Counter E1700
DW 0-FFFF 4Hex 0 65535 Yes Both Data Register (2) 61000
FW 0-BFFF 4Hex 0 65535 Yes Both Work Register (2) E2000
MS 0-FFFFF 5Hex 0 65535 Yes Both Extended Memory (2) 100000
BITS
(LSD
is for the bit number, 0 - F) (4)
D 0-FFFF 4Hex 0 1 Yes Both Data Register (2)(3) 61000
F 0-BFFF 4Hex 0 1 Yes Both Work Register (2)(3) E2000
M 0-FFFFF 5Hex 0 1 Yes Both Extended Memory (2)(3) 100000
X0-FF
F
3Hex 0 1 Yes Both Input Relay A0000
Y0-FF
F
3Hex 0 1 Yes Both Output Relay A4000
R0-FF
F
3Hex 0 1 Yes Both Internal Relay AC000
K0-FF
F
3Hex 0 1 Yes Both Keep Relay B0000
G0-FF
F
3Hex 0 1 Yes Both Global Link A8000
S0-BF
F
3Hex 0 1 Yes Both System Register BE800
E0-FF
F
3Hex 0 1 Yes Both Event BC000
T0-1F
F
3Hex 0 1 Yes Both On-Delay timer B3000
