• GE Fanuc SNPX QUICKDESIGNER
GE Fanuc SNPX
GE SNPX protocol provides multi-drop capabilities for GE Series 90 PLC Processors.
Setup for using a GE Fanuc Series 90 PLC:
The following procedure outlines the typical default settings of the GE SNP program port of the GE
series 90 PLC. NOTE: This setup procedure DOES NOT guarantee that your PLC is configured
similarly. This is the QuickPanel’s default communication setting. These setting were selected
because of the default settings of the PLC. Please check communication settings on the PLC to ensure
trouble-free communication.
Project Setup

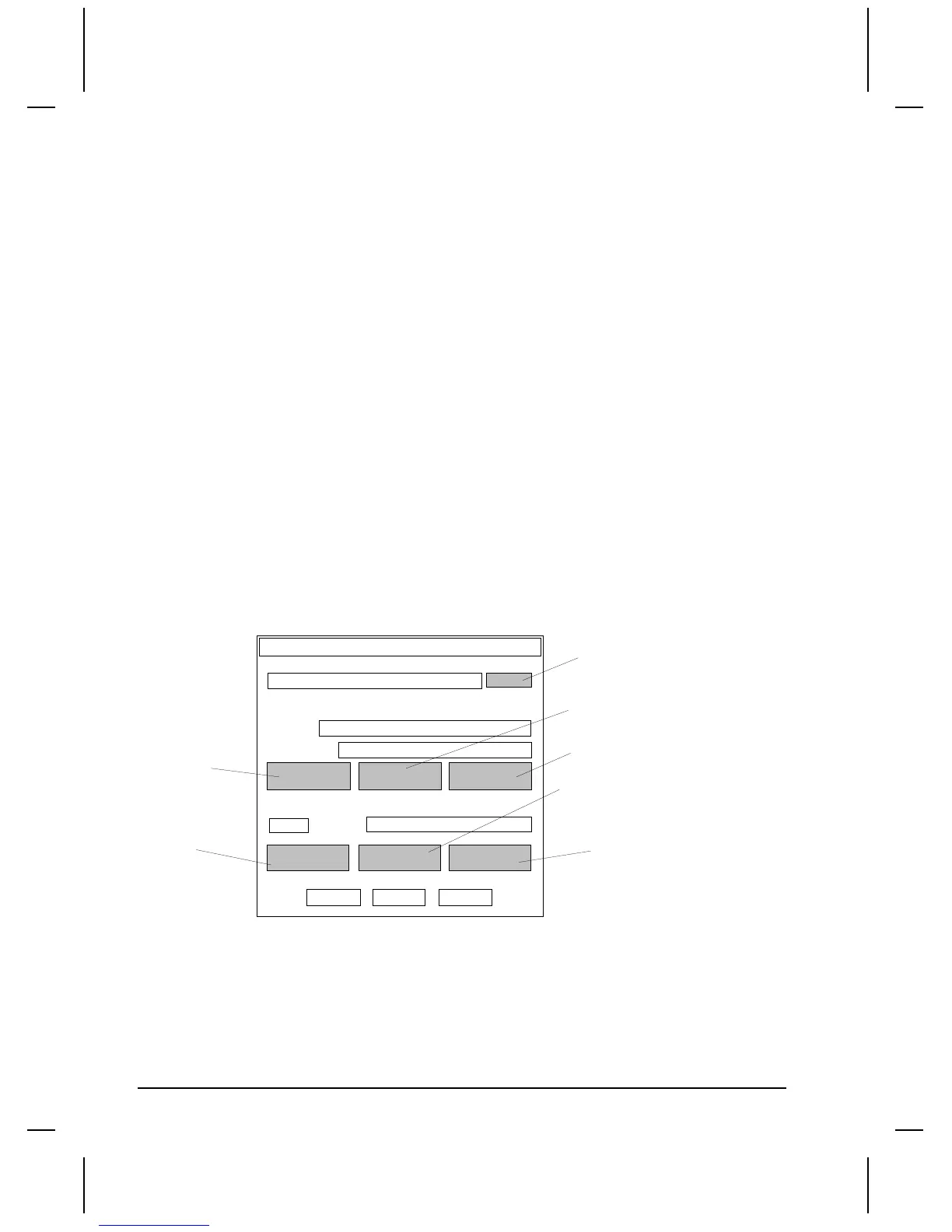

The drawing is a diagram of the Project Setup dialog box. Each button will display an additional dialog
box. Many settings are options and are not required to establish communications. Verify the Project
name and Display Device Model are correct. Leave the Initial Screen name blank.
Project name:
Display Device
Model
Initial Screen
Display
Touch
Print
More
PLC & Protocols
CN1
PLC Type
PLC Protocol name appears here
Port Protocol System
OK Cancel Help
Project Setup
Default Panel Name
Screen Saver Timeout
Panel Trigger Tag
Watchdog Tag
Watchdog timeout
PLC Protocol setup
Disable Beeper
Electrical Format
Serial Parameters
Project name appears in this field
Model description appears in this field
Project Notes
Print (Inactive)
PLC Type
Select the PLC type from the list box. (GE SNPX)

Allen-Bradley SLC 500 Specifications

General

Programming Software	RSLogix 500
Communication Ports	RS-232, DH-485, DH+
Power Supply	120/240V AC or 24V DC
Programming Languages	Ladder Logic
Operating Temperature	0°C to 60°C (32°F to 140°F)
Relative Humidity	5% to 95% (non-condensing)
Memory	4K to 64K words (depending on the processor)
