QUICKDESIGNER Siemens •
••
• 203
Siemens
TI CCM2 305/405
NOTE: Koyo manufactures an identical unit for several models of the TI 305/405 family. See PLC
Direct section for more information.
DL330 TI330
DL330P TI330S
DL340 TI335
DL430 TI425/430
DL440 TI435
The Koyo DL205 can be connected to the display using the HMI-CAB-C86 cable.
Connecting to Simatic TI 405 CCM2

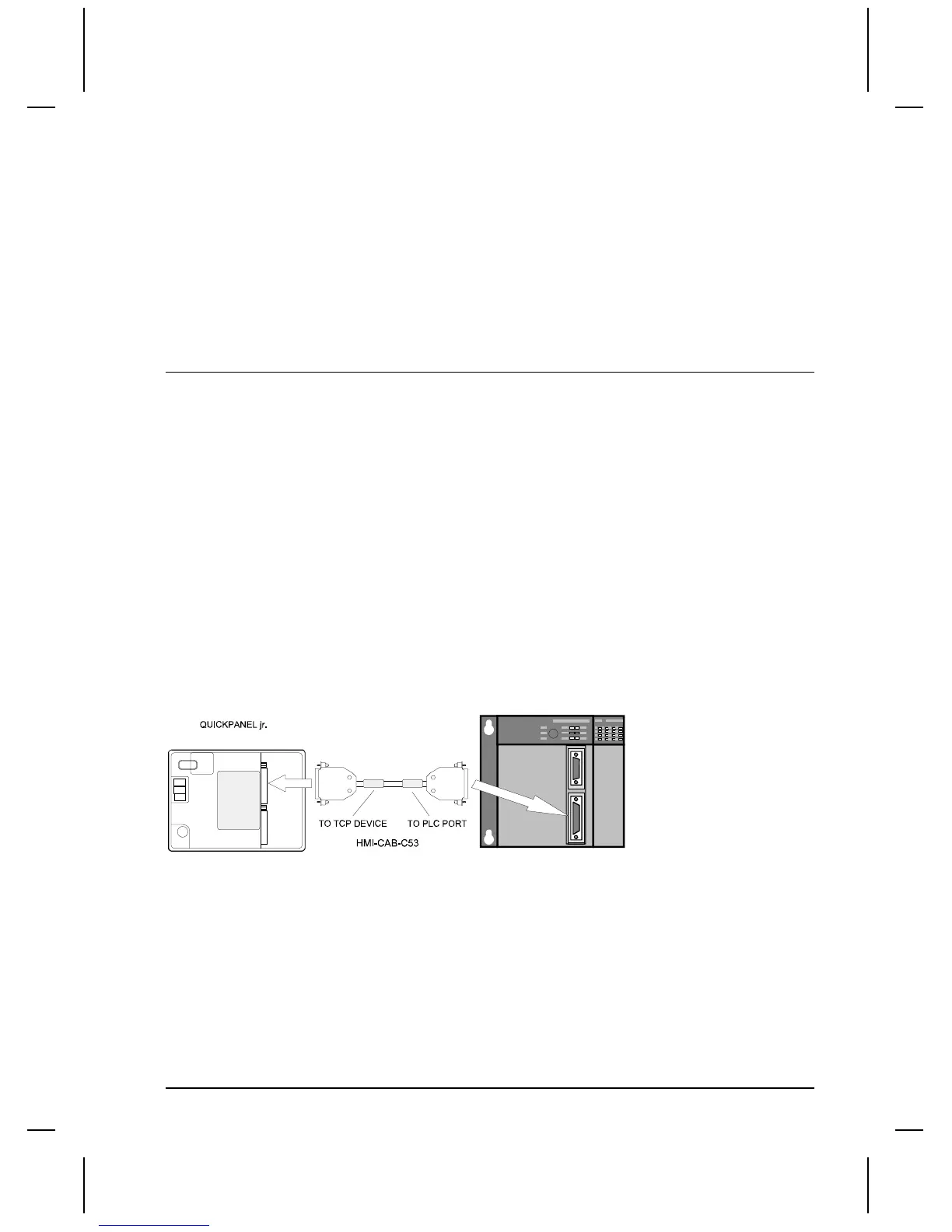

To connect a target display to a Simatic TI 405 CCM2 port, use an HMI-CAB-C53 cable, connected as
shown below.
Make sure you connect the target display to the end marked TO TCP DEVICE and connect the Simatic
TI 305/405 PLC to the end marked TO PLC PORT.
