Allen-Bradley SLC 500

116 •
••
• GE GENIUS QUICKDESIGNER
The Device Number is selected by positioning the cursor at a numbered slot on the bus display, then
entering the device type. For example, positioning the cursor as shown above would assign a
QuickPanel to Device Number 28.
In this example, the Bus Controller itself has been configured to use Device Number 31.
Selecting the Device Type

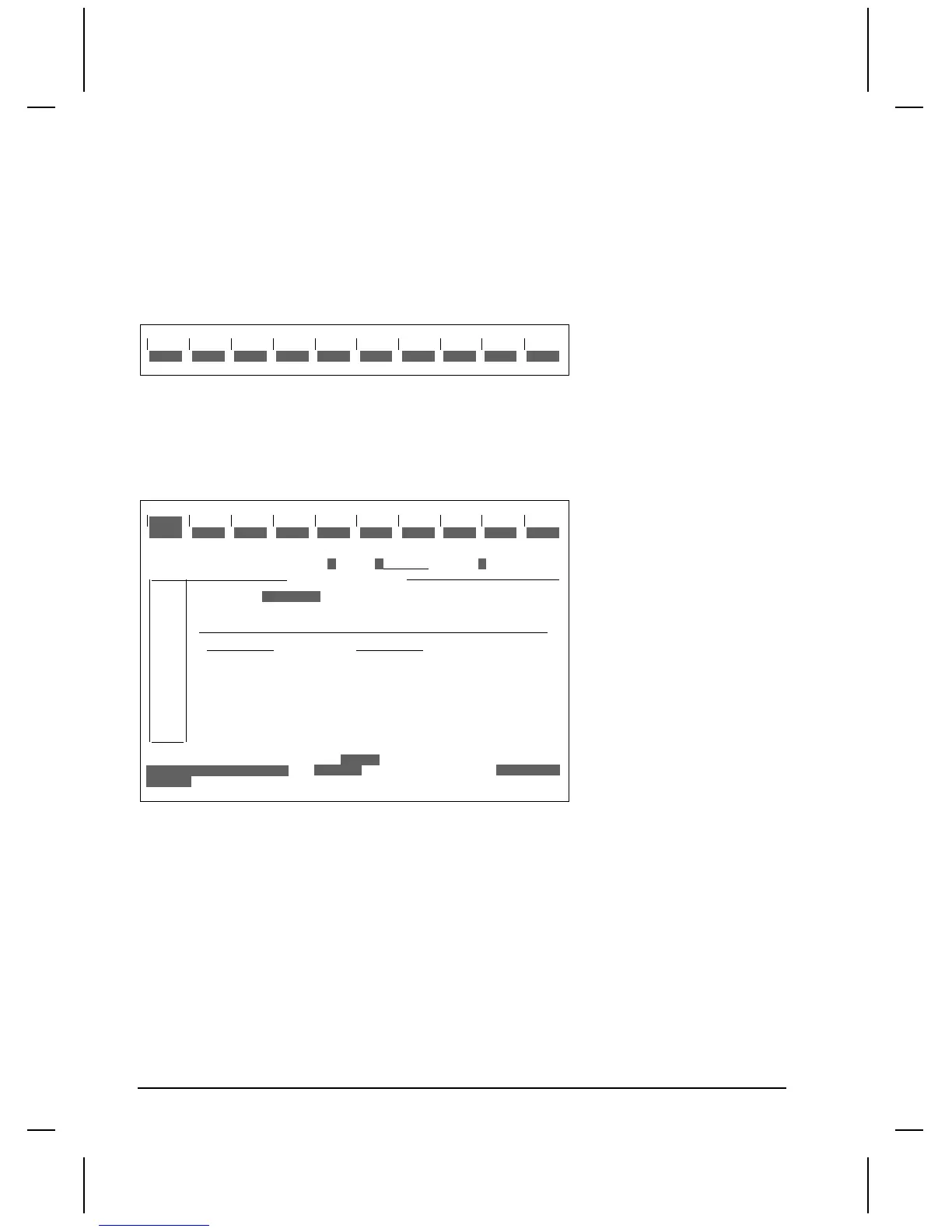

With the cursor positioned at the correct Device Number, press the F7 (other) function key to select a
device type.
1 2 3 4 5 6 7 8 9 10
d out d mix a in a out a mix other zoomd in
other (F7):
May represent another Bus Controller, a High-speed Counter block, a Power Monitor Module, a PCIM,
GENI or GENA.
From the list of available bus interface modules that appears, select GENI MODULE type with the
cursor and press the Enter key. A configuration screen for the GENI module will appear.
>
RACK
0
BUS ADR
C: \ LM90\ name
REPLACE
OFF LI N E
PRG: name CONFIG VALID
Catalog #:
IC660CBB902
30
CBB 902
SLOT
4
SOFTWARE CONFIGURATION
BUS
1
SERIES 6 GENIUS BC PHB W/DIAG
Input Len :
0
%R0001
To :
S 6 GBC
1 2 3 4 5 6 7 8 9 10
d out d mix a in a out a mix otherd in
RACK REF VU
RECEI VE GLOBAL DATA
Receiving Global Data from a QUICKPANEL
The QuickPanel will be sending Global Data. You select a memory address and length in MANUAL
config. mode. Do NOT use AUTO mode.
To: This specifies the location where the Series 90-70 CPU will place the data. Enter a beginning
address in %I, %Q, %G, %AI, %AQ, or %R memory. When this device broadcasts Global Data, the
message includes an identifier that indicates where the message came from.
Input Length: This is the amount of Global Data expected to be received. For bit-oriented data, this is
the number of bits. For word-oriented data, it is the number of words. If the expected data length
(defined by configuration) and the actual data length (defined by the content of the Read ID Reply
message from the module) don't agree, a System Configuration Mismatch fault is registered in the PLC
Fault Table.
