Allen-Bradley SLC 500

QUICKDESIGNER Allen-Bradley •
••
• 27

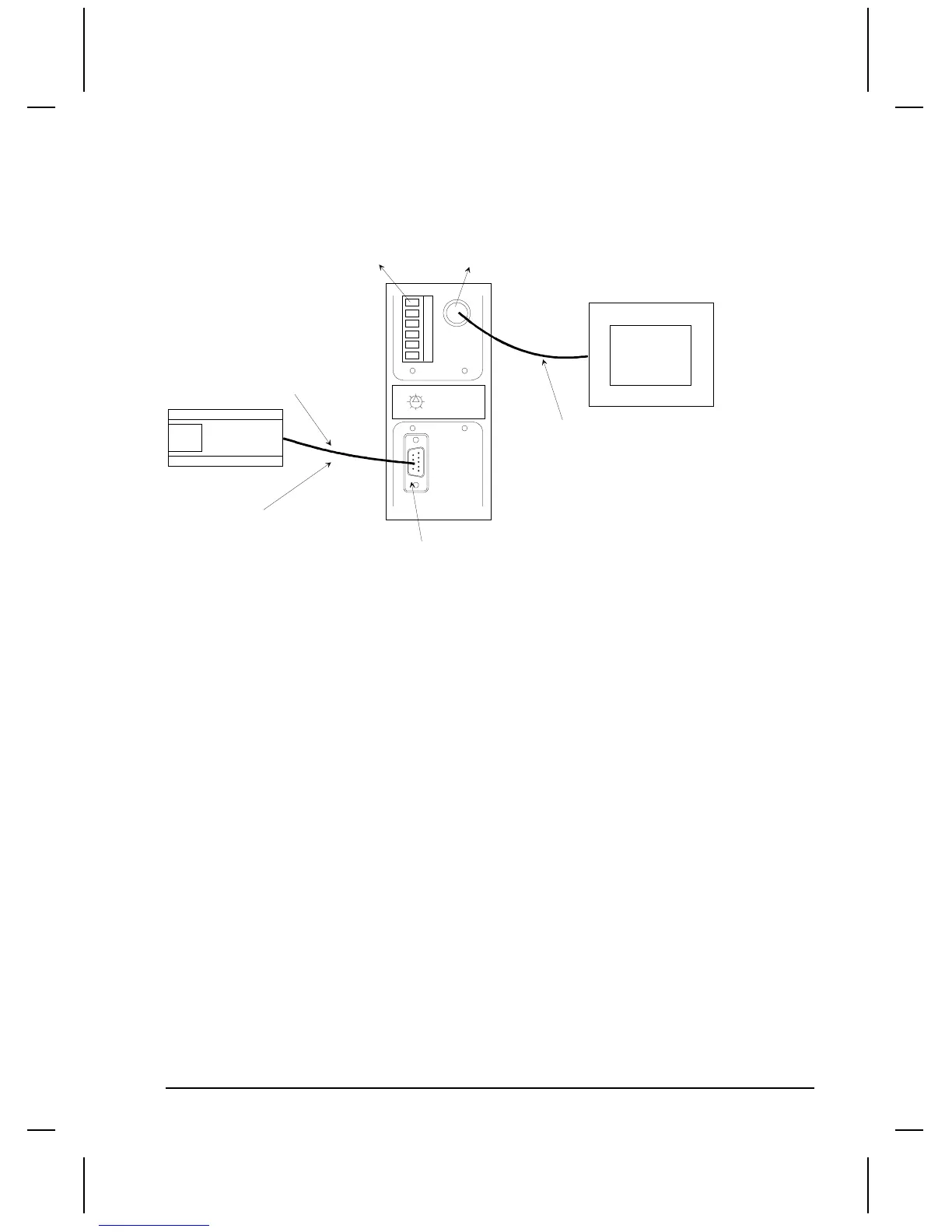

This example shows the AIC module as a point-to-point isolator. Here the QuickPanel is connected
using RS-232 to Port 2 on the AIC module. A MicroLogix 1000 (Series C or Higher) can be connected
to the AIC RS-232 Port 1, or you can connect a SLC 5/03 or SLC 5/04 Channel 0 port to Port 1 on the
AIC module.
19200
14400
9600
4800
2400
1200
600
AUTO
TX TX
TX PWR
AIC+
QUICKPANEL
1761-CBL-PM02
OR
1761-CBL-AP00
FOR MICROLOGIX 1000
(SERIES C OR HIGHER)
HMI-CAB-C106
PORT 2
MINI-DIN 8 RS-232
PORT 1
DB-9 RS-232, DTE
PORT 3 DH485/DF1
MASTER-SLAVE
1747-CP3
OR
1761-CBL-AC00
FOR SLC5/03 OR SLC 5/04
CHANNEL 0
