Allen-Bradley SLC 500

92 •
••
• GECCM QUICKDESIGNER
Note: Address Format for the above tag variables is Decimal.
The Node ID delimiter for all variables is an underscore ( _ ). The Node ID Range is 1-90 (decimal).
The Address Range for the Auxiliary and Channel I/O variables is 1-1024.
The Data Range for the Auxiliary and Channel I/O variables is 0 - 1.
Device Name Format Example Description & Notes
RDaaaaa_dd RD1 Register - Signed Double Word
RFaaaaa_dd RF1 Register – Float
Raaaaa.bb_dd R1.10 Register - Signed Word
Iaaaa_bb I1 Input – Bit
Oaaaa_bb O1 Output – Bit
AIaaaa_bb AI1 Auxiliary Input – Bit
AOaaaa_bb AO1 Auxiliary Output – Bit
Ia+bbbb_cc I1+1 + Channel Input – Bit
Oa+bbbb_cc O1+1 + Channel Output – Bit
Ia-bbbb_cc I1-1 - Channel Input – Bit
Oa-bbbb_cc O1-1 - Channel Output - Bit

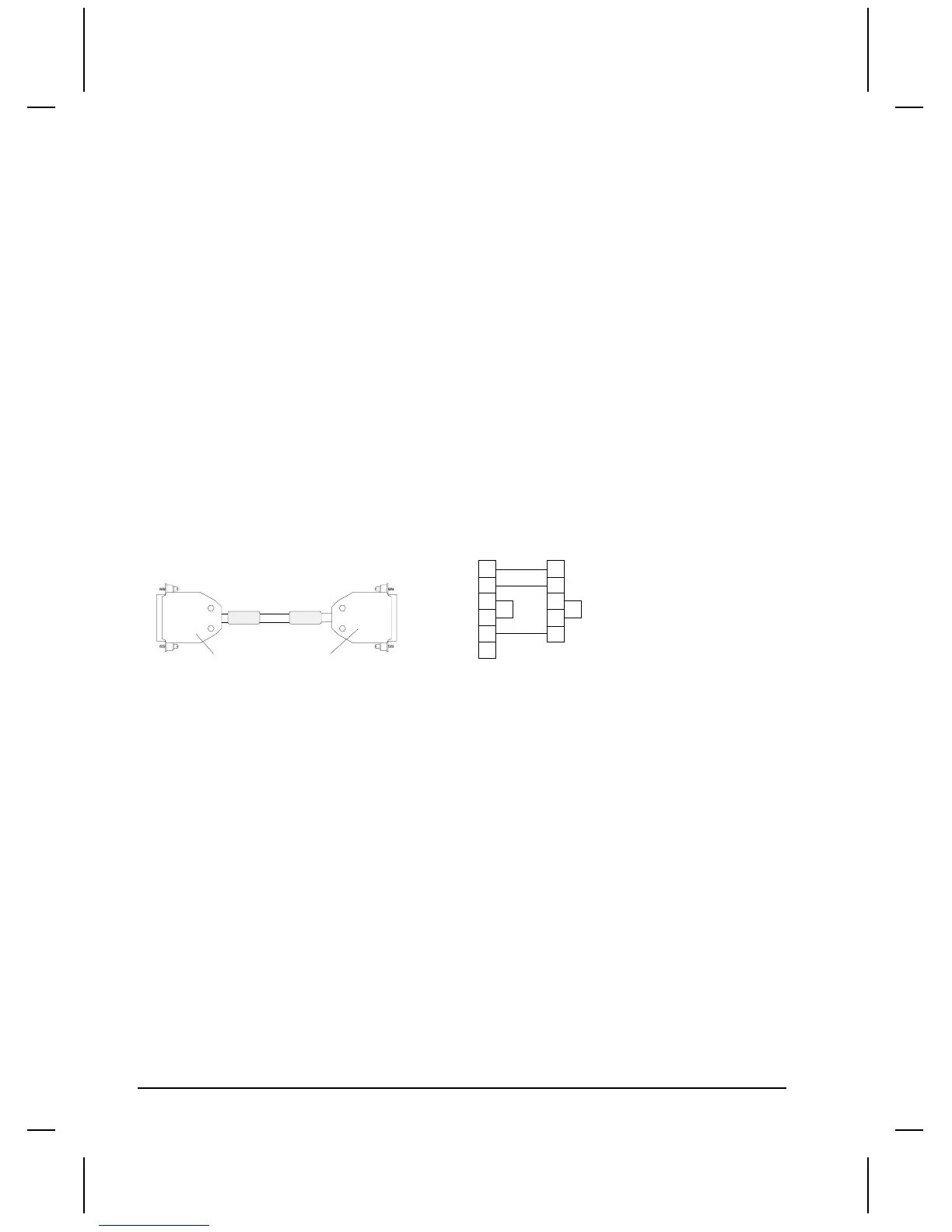

HMI-CAB-C118 Cable
This cable is used to connect a QuickPanel display to a GE CCM PLC.
HMI-CAB-C118
TO TCP DEVICE
TO PLC PORT
SHIELD
1
3
4
5
7
2
3
4
5
7
25 PIN MALE
TO PLC PORTTO TCP DEVICE
2
25 PIN MALE
