• Toyopuc-2 QUICKDESIGNER
Connect the cable shown in the CABLE section between the I/O port on the QuickPanel and the port on
the PLC.

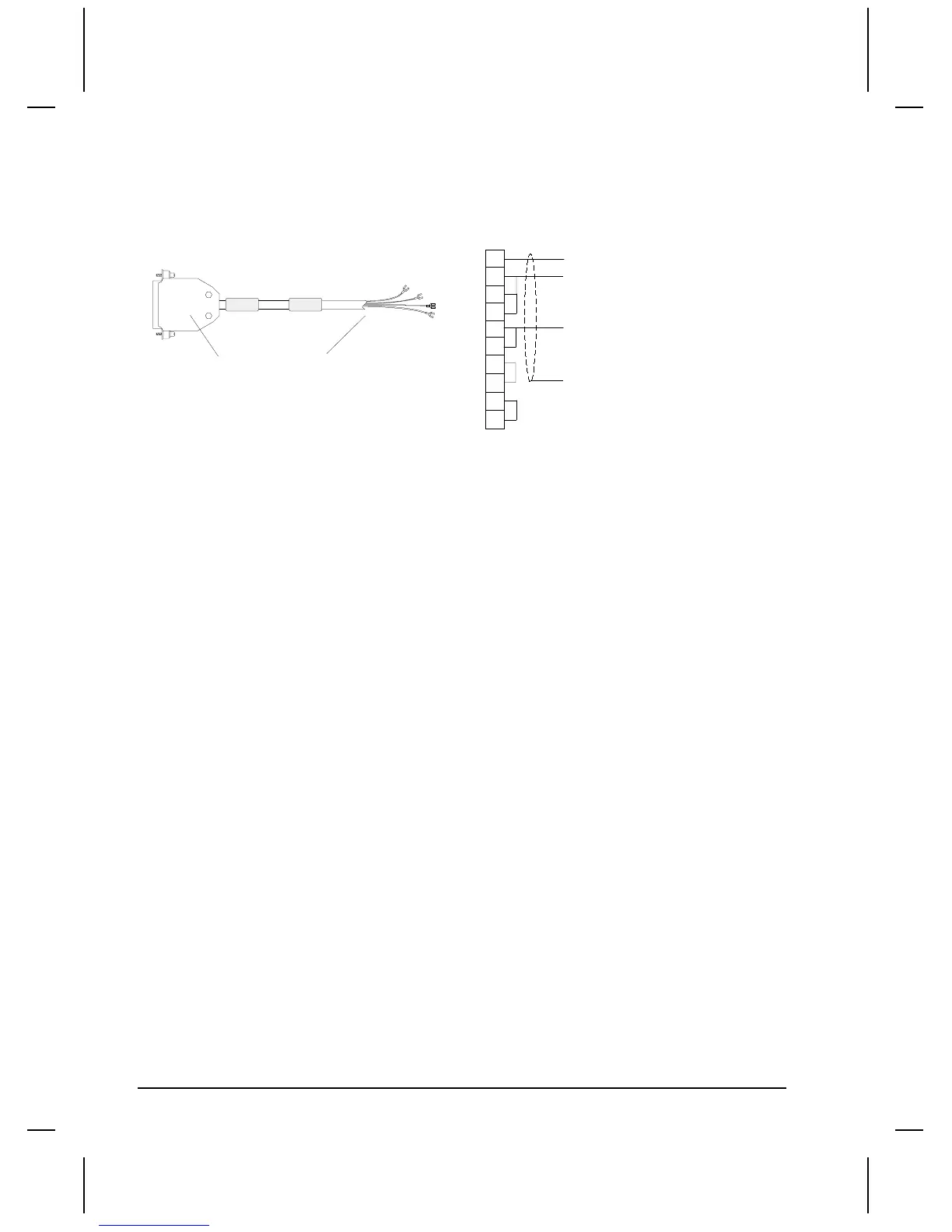

Cable
TO TOYOPUC2
TO TCP DEVICE
HMI-CAB-C114
TO TCP DEVICE
TO PLC PORT
SHIELD
11
15
25 PIN MALE
7
9
10
18
16
19
21
22
LO + (BLACK)
LO 0V
LO -(WHITE)
LO G(PE)
