Example 10: Power Versus Time Data Logging Measurement Examples
7-28 PN: 10585-00001 Rev. P ML2437A/38A OM/PM
The way the power meter measures power versus time is to divide the data display time
period into 200 blocks of time. For example, with a data display time period of 200
minutes, the duration of each block of time would be 1 minute. If the display time were
100 minutes, each block of time would be of 30 seconds duration.
Press [DATA HOLD] and toggle the setting by repeatedly pressing the soft key until
the representation type you require is displayed.
Normal: This is the default setting and returns the last measurement taken within
each block of time.
Average: This looks at all the measurements within the block of time and returns the
average power.

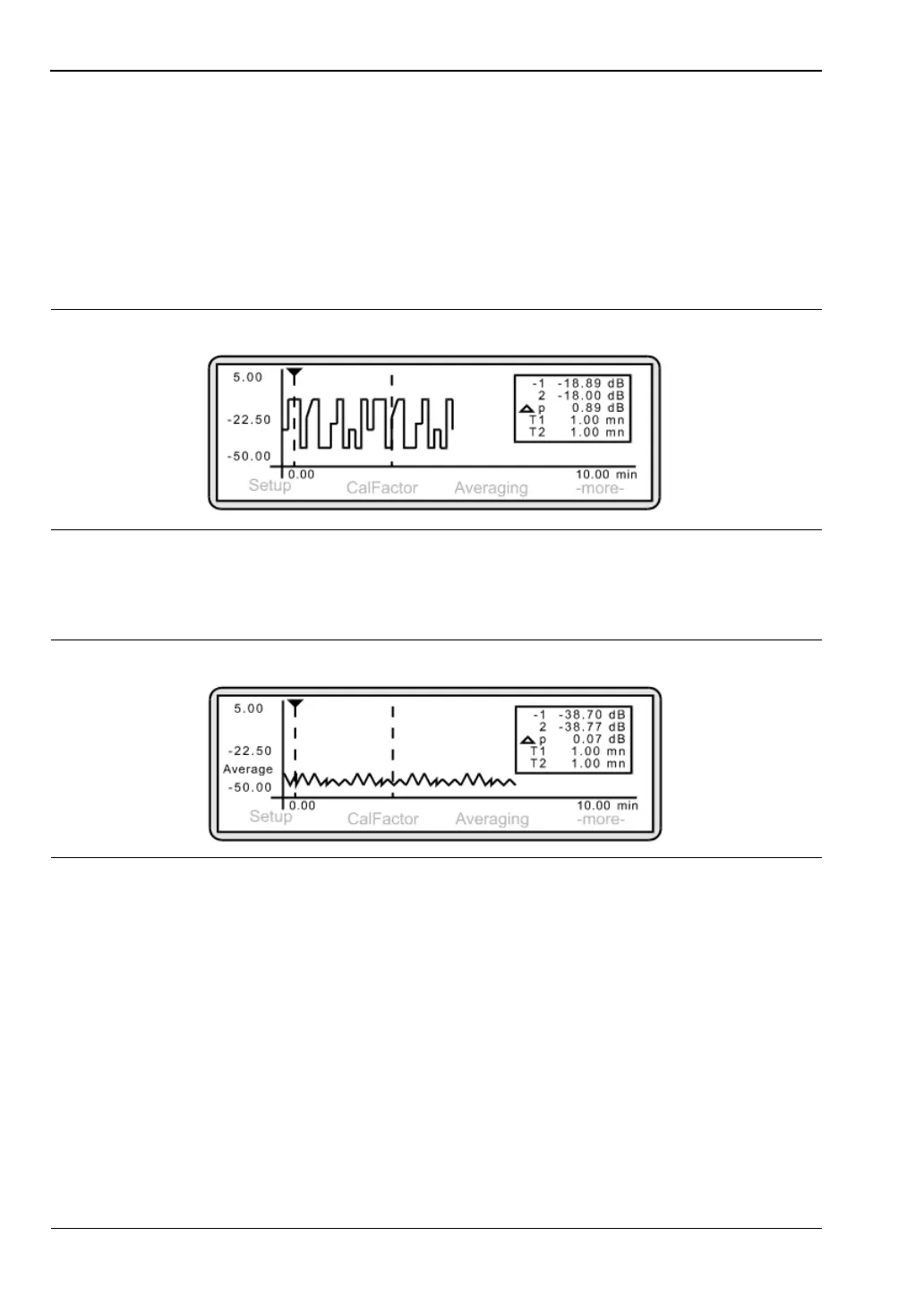

Figure 7-42.
Figure 7-43.
