Measurement Examples Example 10: Power Versus Time Data Logging
ML2437A/38A OM/PM PN: 10585-00001 Rev. P 7-29

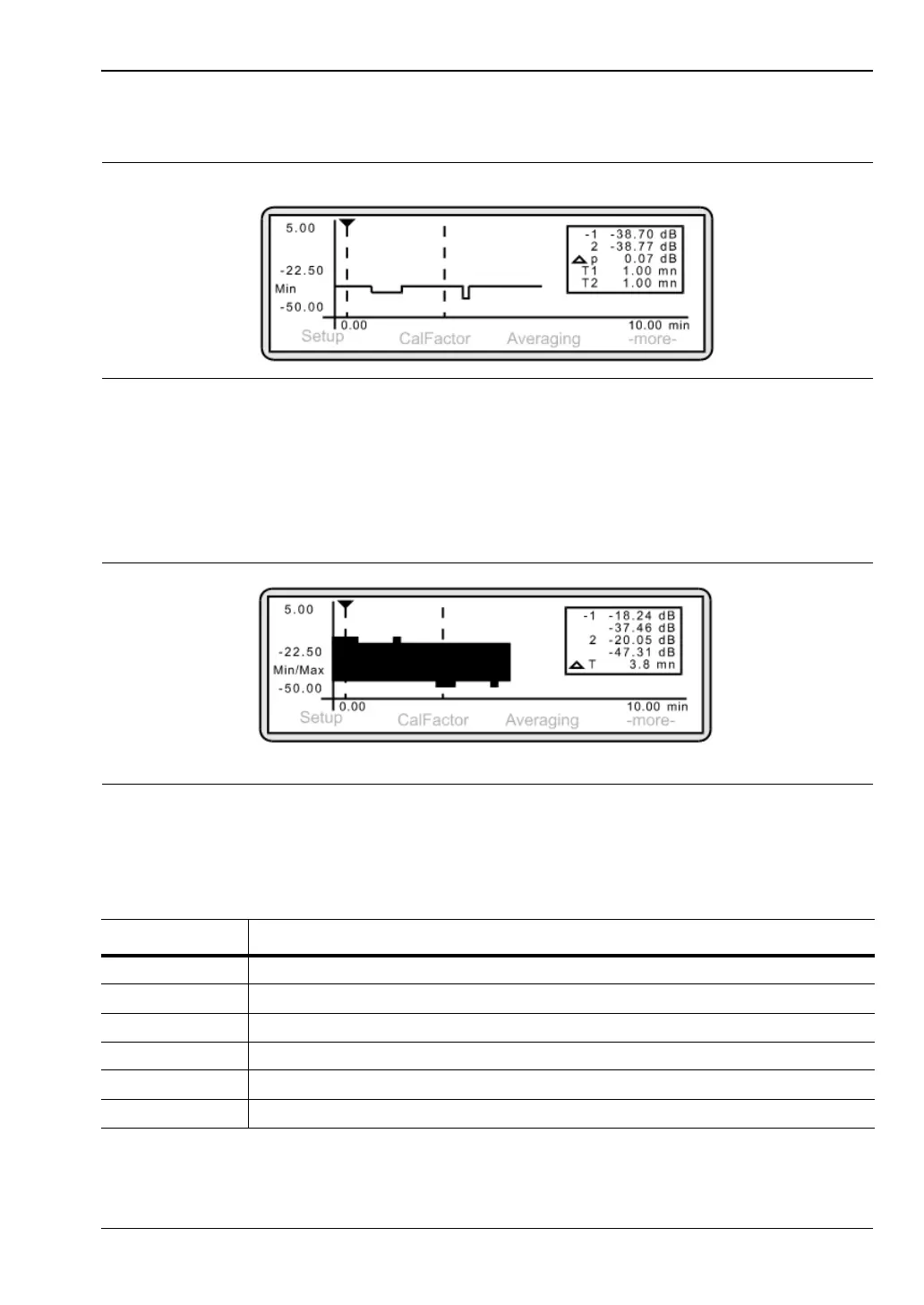

Min: This looks at all the measurements within the block of time and returns the
minimum power.
Max: This looks at all the measurements within the block of time and returns the
maximum power. The Measurement screen is similar to that achieved with Min.
Min/Max: This looks at all the measurements within the block of time and returns both
the minimum and the maximum power. Both readings are connected on the graph by a
line which results in a similar display to that shown below.
Press any hard key to return to the Measurement screen. The display readout box on
the right-hand side shows a combination of:
Figure 7-44.
Figure 7-45.
Table 7-5. Display Meanings
Item Meaning
1 the power measurement at cursor 1
2 the power measurement at cursor 2
p the power difference between cursors 1 and 2
t the time difference between cursors 1 and 2
the time at cursor 1
T2 the time at cursor 2
