Attaching the Mounting Bracket
Follow the steps below to attach the mounting bracket to the unit:
Non-Slim Transmitters
Note: Steps for non-slim transmitters (KE6900, KE6900A, KE6900AiT,
KE6910, KE6912, KE6920, KE6922, KE6940, KE6940A,
KE6940AiT, KE8950, KE8952, KE9950, and KE9952) are the same,
and are exemplified using KE6900.

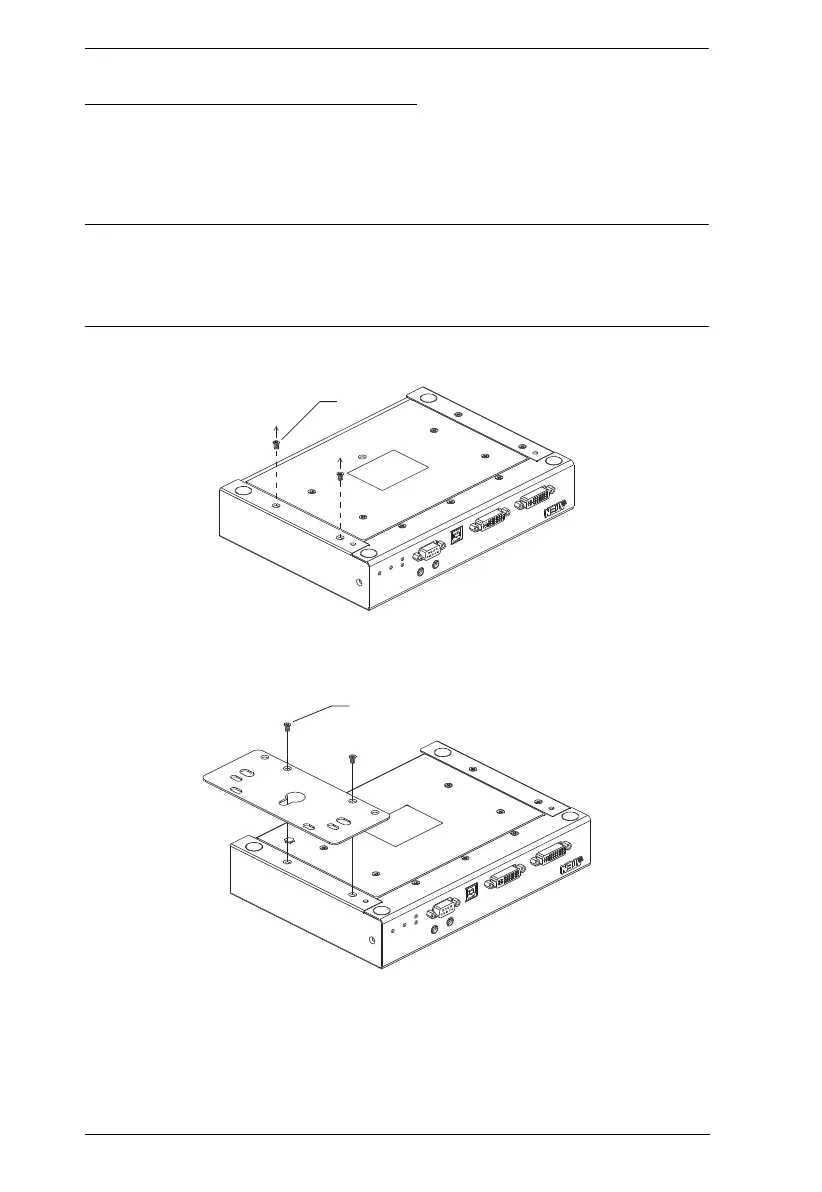

1. Unscrew the screws from the side, as shown in the diagram below.
2. Use the screws from step 1 to attach the mounting bracket to the bottom of
the transmitter, as shown below.
M3 x 5
M3 x 5
