KVM over IP Matrix System User Manual
74

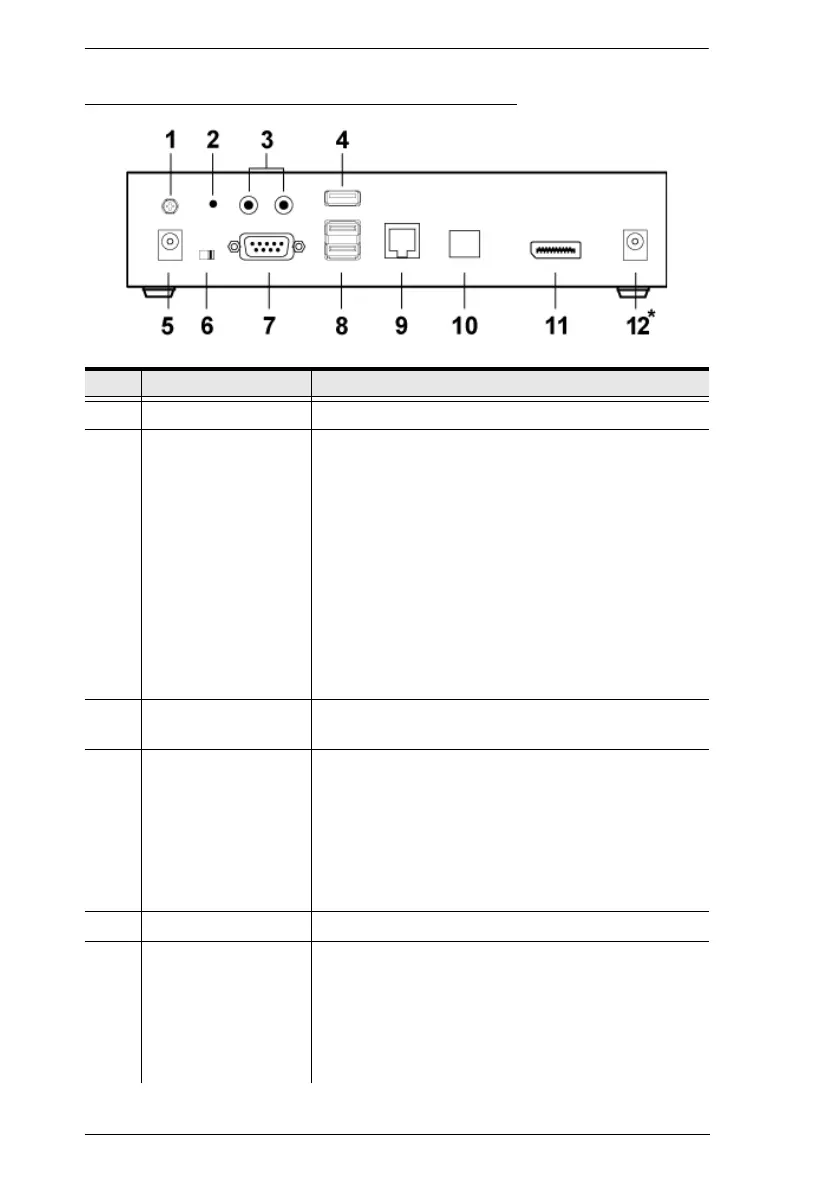

KE9950R / KE9952R (Receiver) Rear View
No. Component Description
1 grounding terminal The wire used to ground the unit connects here.
2 reset button This button must be pushed with a thin object, such as
the end of a paper clip.
Press and release to reboot the device.
Power off, hold reset then power on the device
while pressing reset to recover from a firmware
upgrade failure.
Press and hold it in for more then three seconds
resets the unit back to its factory default
settings*.
Note: The Reset to Factory Default function resets everything
but the login information (username/password) to the factory
default settings. To reset the login information, refer to Reset
All Information on page 423.
3 audio ports These mini stereo ports are for the local speakers
(green) and microphone (pink).
4 USB port Use this port for virtual media or a USB peripheral
device.
Note: 1. When using a USB disk plugged into this
port, see USB Mode, page 250.
2. This USB port does not support isochronous
endpoints and can support USB peripherals
that stream audio but not video.
5 power jack The cable from the DC power adapter connects here.
6 function switch Use this slide switch to set the unit’s mode:
Extension: Sets the device to use the normal TX to
RX extension mode.
RS-232 Config: The device is ready to be
configured via serial commands through the RS-232
port.
To Next Page
