ATEN KE6900T - KE6900 A; KE6940 A Point-to-Point Installation 1 of 2

Chapter 2. Hardware Setup
89
Note: 1. If installing the KE6940A with two DVI monitors, connect the second
DVI monitor via a DVI cable into the additional ports on the KE6940
and computer.
2. A keyboard or mouse with special functions may be required to be
connected using the USB ports for the functions to work (see USB
Mode, page 250).
3. The SFP module 2A-136G / 2A-137G is sold separately. Contact
your ATEN dealer for product information.

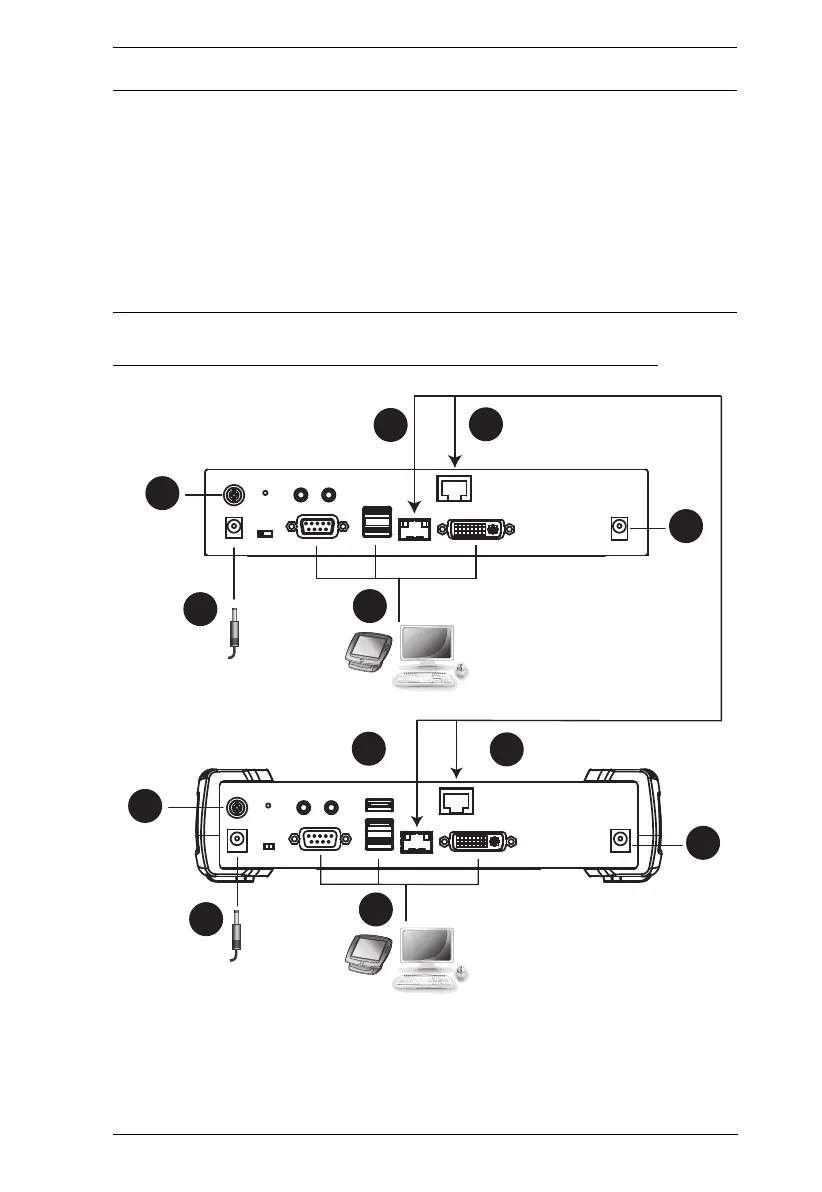

KE6900A / KE6940A Point-to-Point Installation 1 of 2
KE6900AR (Rear)
KE6900AT (Rear)
Cat 5e/6 cable
Optical Fiber Cable
2
7
10
6
9
Cat 5e/6 cable
Optical Fiber Cable
9
8
10
1
11
DC 5V
DC 5V
1
11
Serial
Device
Serial
Device
