Chapter 1. Introduction
61

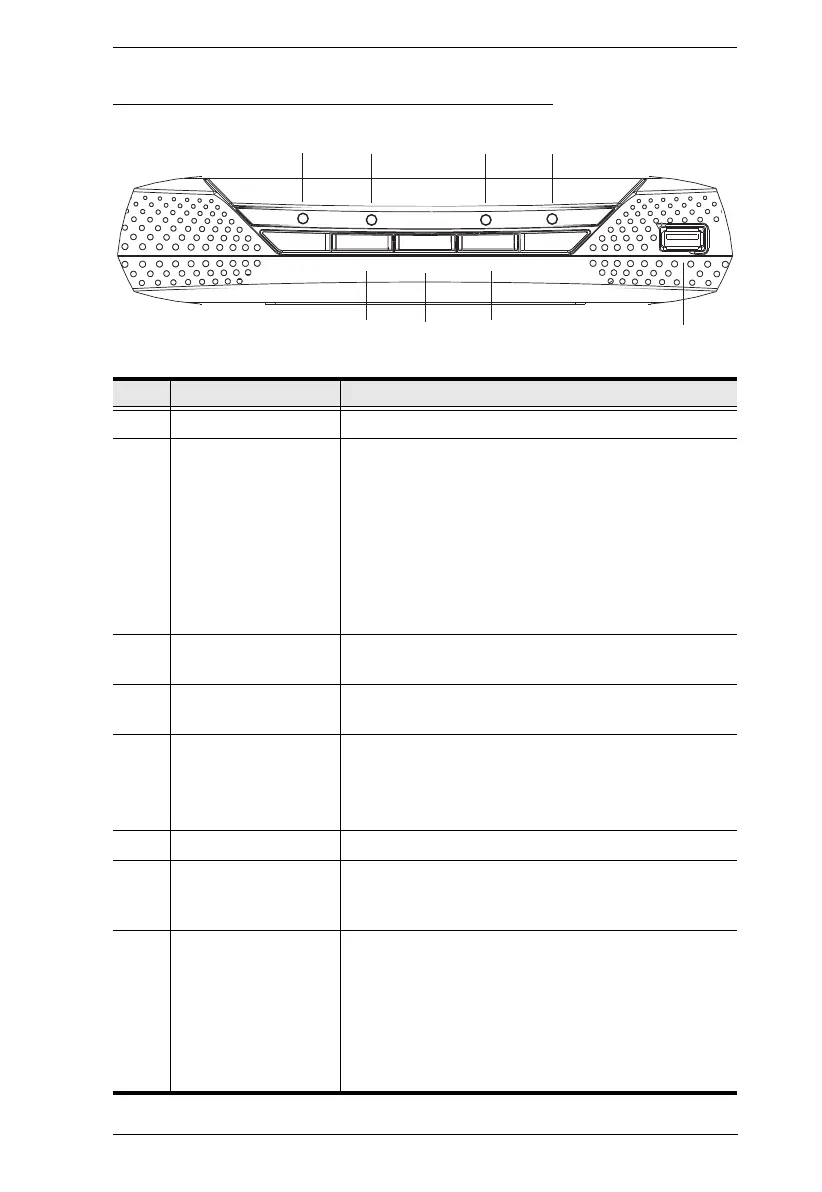

KE8950R / KE8952R (Receiver) Front View
No. Component Description
1 power LED Lights blue to indicate the unit is turned on.
2 LAN LED This LED indicates the network status.
 Lights when connected to the LAN and blinks when
the Ethernet connection is active:
 Orange: 10 Mbps
 Orange + Green: 100 Mbps
 Green: 1000 Mbps
 Off when not connected to the LAN.
3 local LED Lights green to Indicate the Transmitter has KVM
access of the computer.
4 remote LED Lights green to Indicate the Receiver has KVM access
of the computer.
5 graphics pushbutton Sets the image quality of the display to the highest
possible grade so that images are optimized. This
toggle button turns off the Video Pushbutton option.
Graphics mode is selected by default.
6 OSD pushbutton Use this pushbutton to open the OSD menu.
7 video pushbutton Sets the image quality of the display to a grade that is
optimized for playing videos. This toggle button turns
off the Graphics Pushbutton option.
8 USB port Use this port for virtual media or a USB peripheral
device.
Note: 1. When using a USB disk plugged into this
port, see USB Mode, page 250.
2. This USB port does not support isochronous
endpoints and can support USB peripherals
that stream audio but not video.
1 432
Graphics
OSD
Video
POWER
LAN LOCAL
REMOTE
5 6 7
8
