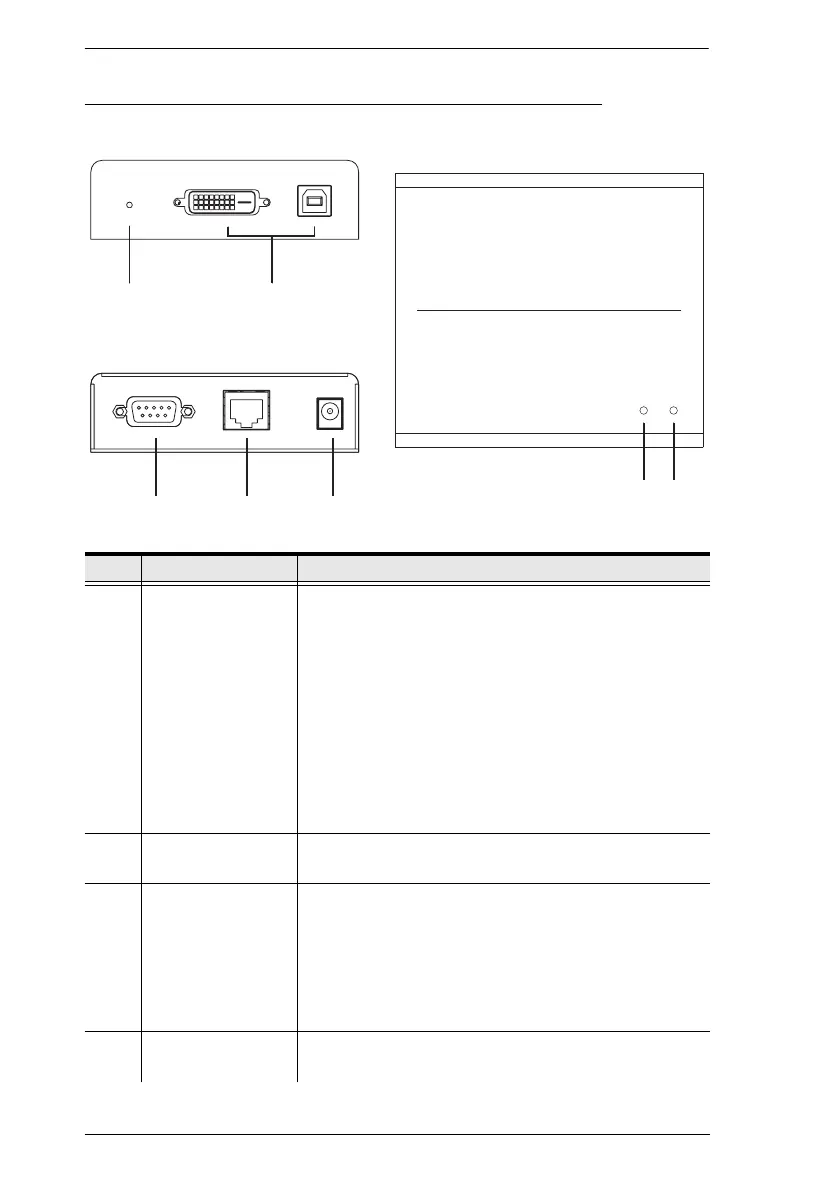

KE6900ST (Transmitter) Front, Rear and Top View
No. Component Description
1 reset button This button must be pushed with a thin object, such as
the end of a paper clip.
Press and release to reboot the device.
Power off, hold reset then power on the device
while pressing reset to recover from a firmware
upgrade failure.
Press and hold it in for more then three seconds
resets the unit back to its factory default settings*.
Note: The Reset to Factory Default function resets everything
but the login information (username/password) to the factory
default settings. To reset the login information, refer to Reset All
Information on page 423.
2 KVM port The USB KVM cable supplied with the package that links
the Transmitter to the computer plugs into these ports.
3 RS-232 port This RS-232 serial port is for connecting to the computer
for serial control.
Note: When a LAN connection is detected serial
commands bypass the KE6900ST and are sent across
the network to the receiver. When no LAN connection is
detected serial commands are automatically directed to
the KE6900ST for local configuration and control.
4 LAN port The cable that connects the unit to the LAN plugs in
here.
4
5
3
Rear View
21
Front View
6 7
Top View
