11. Plug the power adapters into AC sources with the power cords and plug
the other ends into the transmitter and receiver’s power jacks respectively.
12. (Optional) For power redundancy, connect another power adapter
(available for purchase separately) to the power jack of each extender and
make sure the adapter is powered.
13. Power on the computer.
Note: 1. For the advanced features of connecting a keyboard or mouse with
special functions, see USB Mode, page 250.
2. The SFP module 2A-136G / 2A-137G is sold separately. Contact
your ATEN dealer for product information.

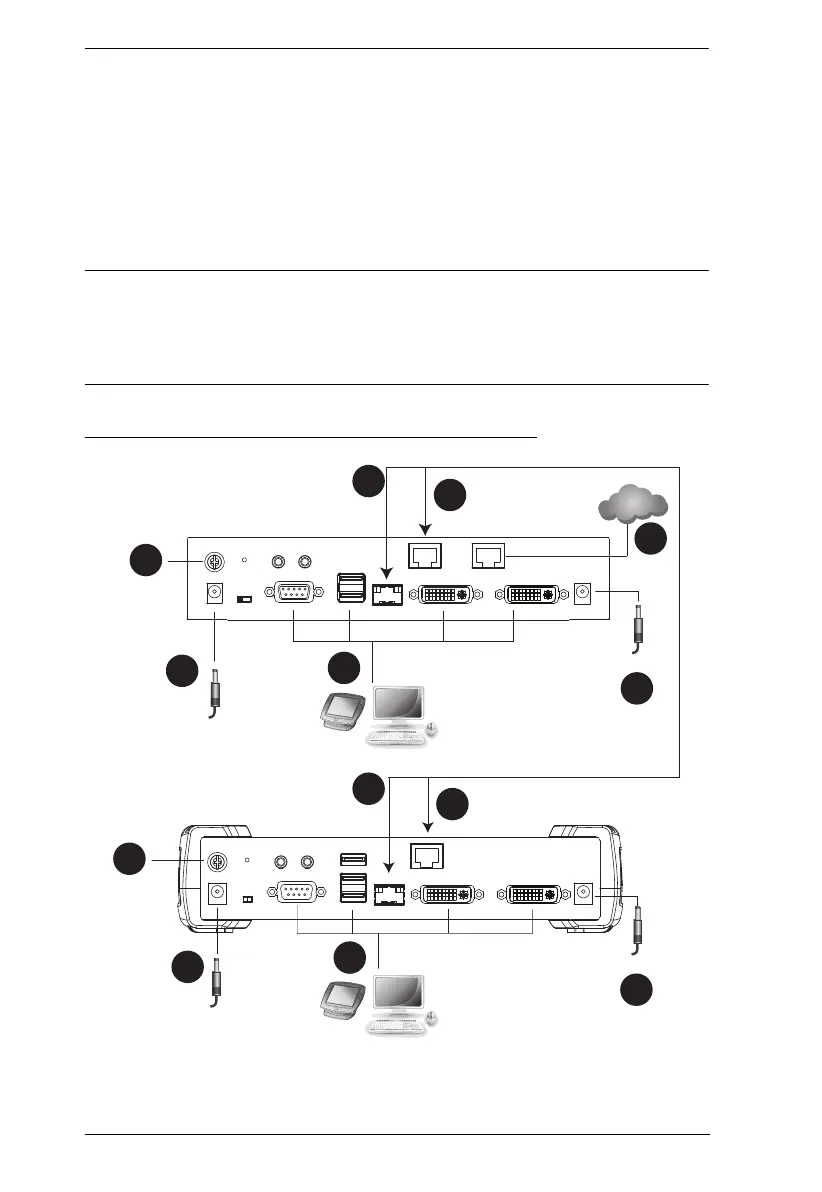

KE6940AiT Point-to-Point Installation 1 of 2
KE6940AR (Rear)
KE6940AiT (Rear)
Cat 5e/6 cable
Optical Fiber Cable
2
6
11
10
7
Cat 5e/6 cable
Optical Fiber Cable
8
11
1
12
DC 12V
DC 5V
1
Serial
Device
Serial
Device
Office LAN
9
10
DC 12V
12
DC 5V
