307
Chapter 8
Connections
Overview

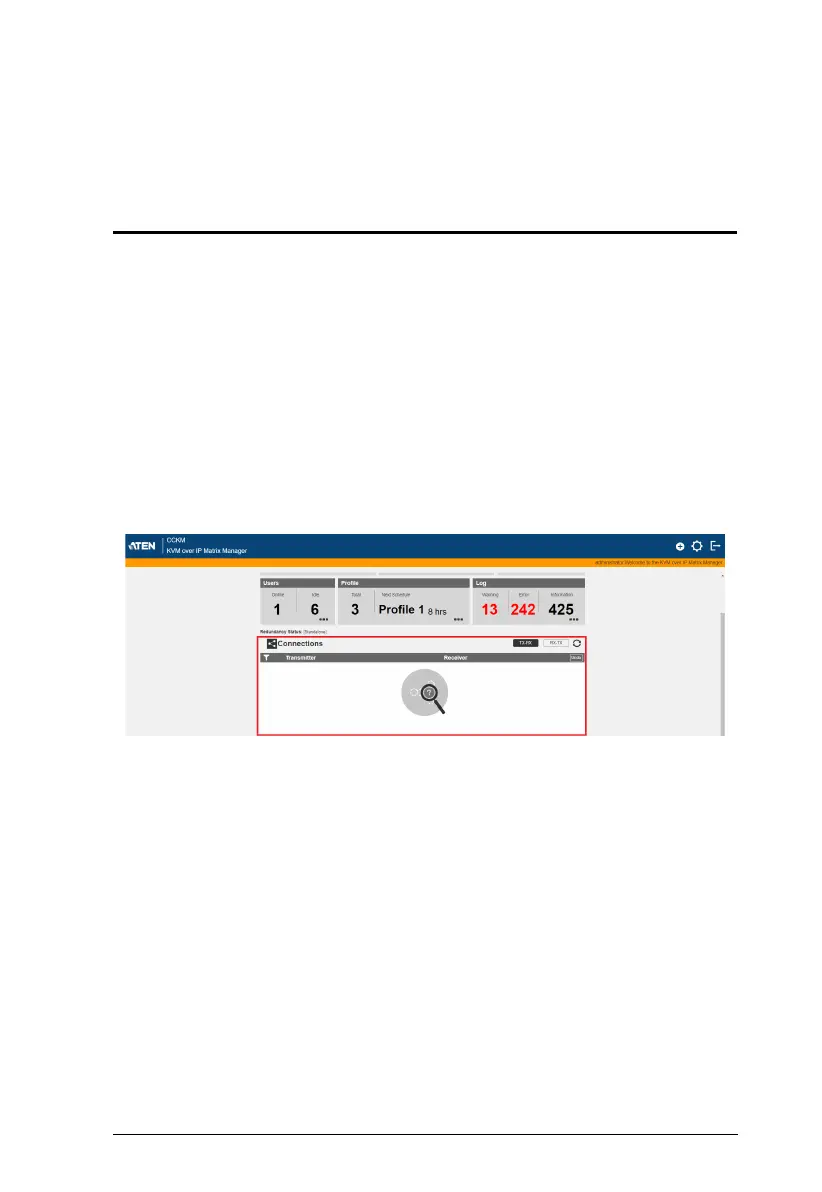

The Connections panel is found on the KVM over IP Matrix Manager main
page, just below System Status. Connections provides a diagram of current
Transmitter to Receiver connections. Before connections are established the
panel appears blank, as shown below. To connect Receivers to Transmitters,
use the Instant Link panel (page 215), or create a connection Profile
(page 269).
When connections are made, clicking a device in the left column provides a
way to view the connection, hovering the mouse cursor over the connection
diagram in the right column allows you to disconnect the device, as explained
in the sections that follows.
