Chapter 2. Hardware Setup
129
the receiver to a local area TCP/IP network. Refer to the diagrams on the
following page and connect accordingly.
Repeat these steps for each Transmitter and Receiver you wish to install on the
network then power on the computer(s).
Note: If you wish to use CCVSR and/or remote access with WinClient/
JavaClient, you will still need to connect the Internet Port of the
KE6900AiT / KE6940AiT to an office LAN.
It is highly recommended to mount the AiT unit(s) onto a system rack
or wall, and avoid stacked setup to ensure proper ventilation.

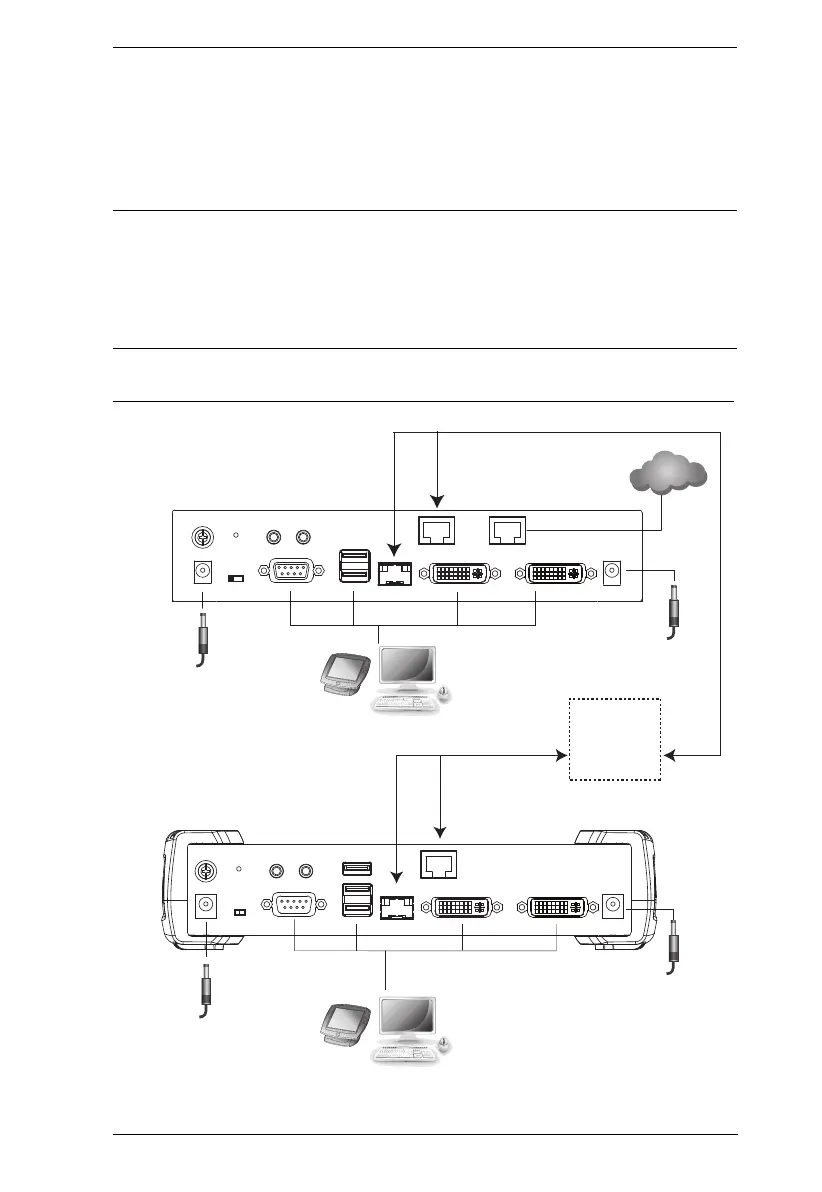

KE6900AiT / KE6940AiT Network Installation Diagram 1 of 2
KE6940AR (Rear)
KE6940AiT (Rear)
Cat 5e/6 cable
Optical Fiber Cable
Cat 5e/6 cable
Optical Fiber Cable
DC 12V
DC 5V
Serial
Device
Serial
Device
Office LAN
DC 12V
DC 5V
TCP/IP
LAN
