KVM over IP Matrix System User Manual
242
Intelligent Dual Video Output Management
For the A models (KE6900A, KE6940A), the Intelligent Dual Video Output
Management feature allows the separation of a Dual Display Transmitter’s
(KE6940AT) video outputs (DVI:1 and DVI:2) as two separate Virtual
Transmitters. These separated outputs can be accessed from different
Receivers (KE6900AR or KE6940AR). Receivers can switch between and
connect to both Virtual Transmitters independently with the Access Type
determining which Receiver has control (see page 244).

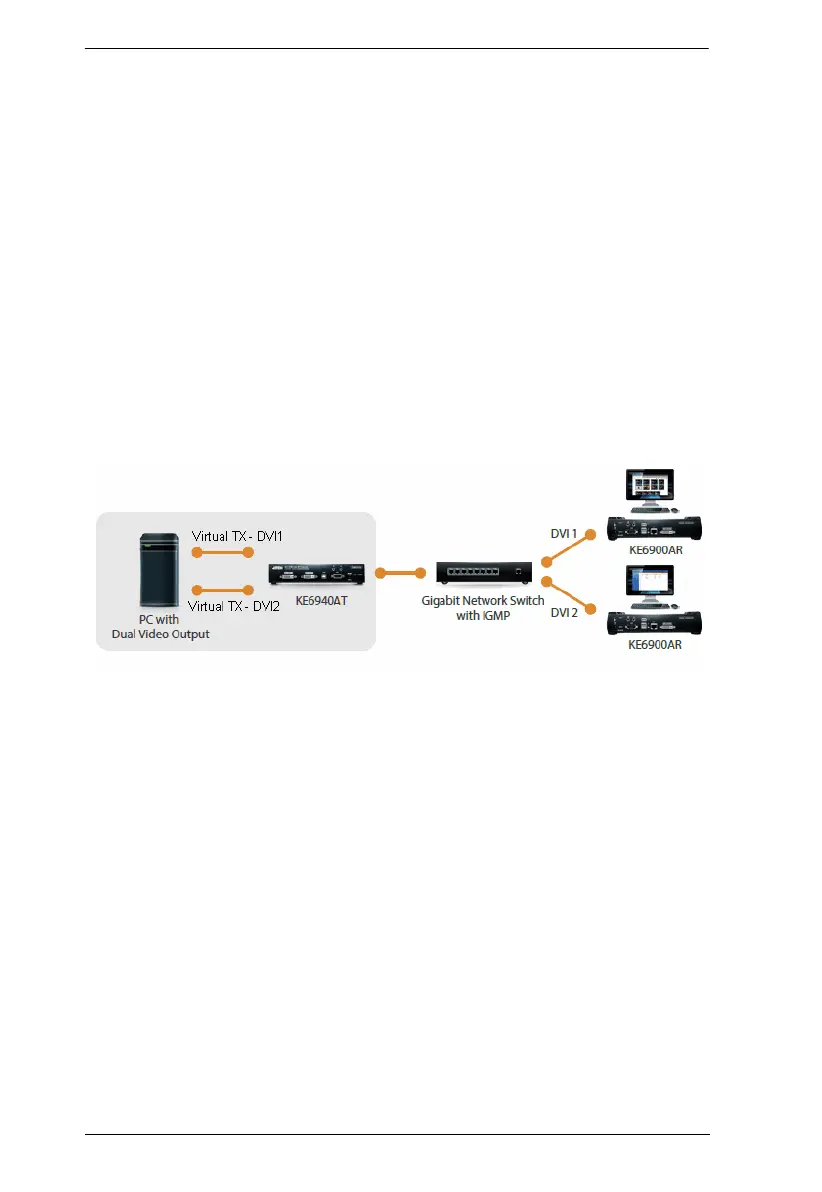

To use this setup, install the KE devices as shown below and create two Virtual
Transmitters, selecting DVI:1 and DVI:2 as the KVM source for each Virtual
Transmitter.
For non-A model receivers (e.g. KE6910R, KE6912R), you can select between
DVI:1 or DVI:2, but you will always be getting video output from DVI:1.
When connecting to either of the two Virtual Transmitters in the setup shown
above, the mouse cursor may reside on the main or extended dual display
screen, out of view. Therefore even if you have control of the mouse it may not
be visible. To bring the mouse cursor into view on either of the dual display
screens, first enable Boundless Switching (see Boundless Switching, page 256)
and then use the hotkey F8+F9.
