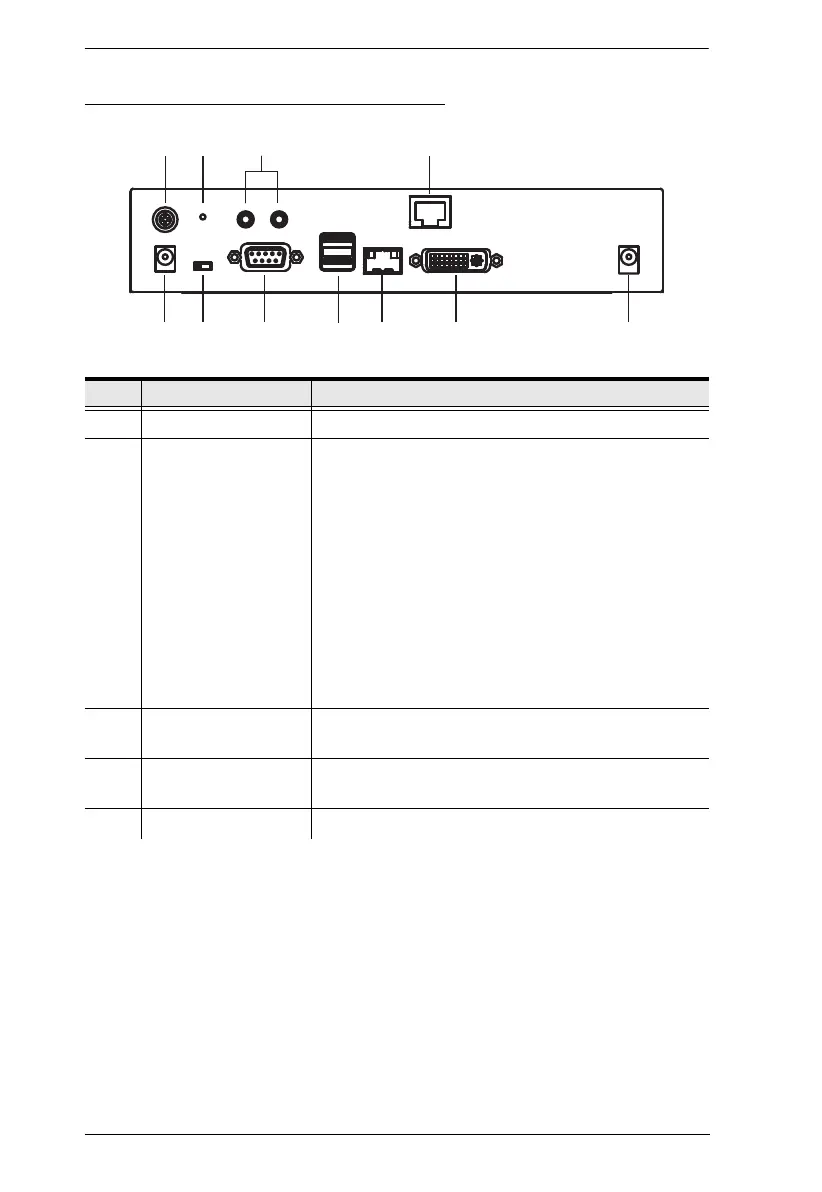

KE6900AT (Transmitter) Rear View
No. Component Description
1 grounding terminal The wire used to ground the unit connects here.
2 reset button This button must be pushed with a thin object, such as
the end of a paper clip.
 Press and release to reboot the device.
 Power off, hold reset then power on the device
while pressing reset to recover from a firmware
upgrade failure.
 Press and hold it in for more then three seconds
resets the unit back to its factory default
settings*.
Note: The Reset to Factory Default function resets everything
but the login information (username/password) to the factory
default settings. To reset the login information, refer to Reset
All Information on page 423.
3 audio ports These mini stereo ports are for the speakers (green)
and microphone (pink).
4 LAN port The cable that connects the unit to the LAN plugs in
here.
5 power jack The cable from the DC power adapter connects here.
