Components

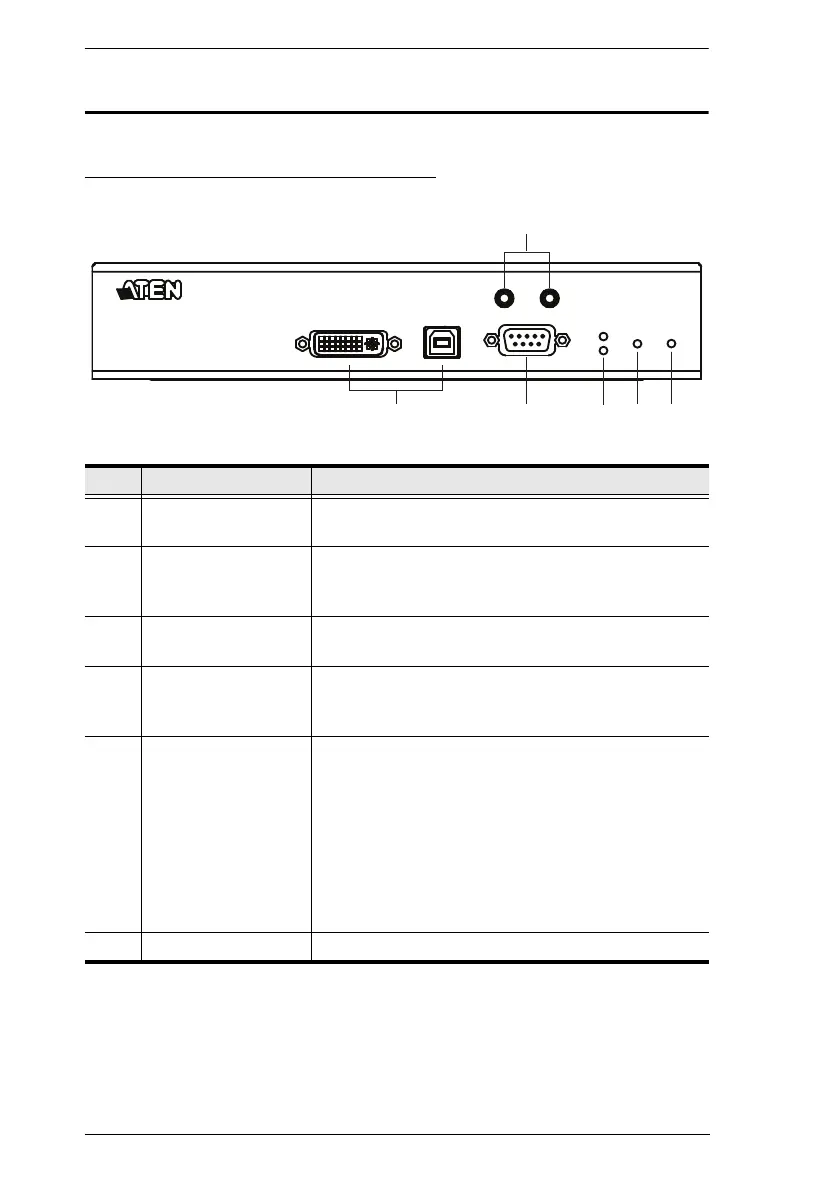

KE6900T (Transmitter) Front View
No. Component Description
1 audio ports These mini stereo ports are for the speakers (green)
and microphone (pink).
2 KVM ports The USB KVM cable supplied with the package that
links the Transmitter to the computer plugs into these
ports.
3 RS-232 port This RS-232 serial port is for connecting to the
computer for serial control.
4 remote / local LED Lights green to indicate which side of the installation
(local or remote) currently has KVM control of the
computer.
5 LAN LED This LED indicates the network status.
 Lights when connected to the LAN and blinks when
the Ethernet connection is active:
 Orange: 10 Mbps
 Orange + Green: 100 Mbps
 Green: 1000 Mbps
 Off when not connected to the LAN.
6 power LED Lights blue to indicate the unit is turned on.
