Appendix

419

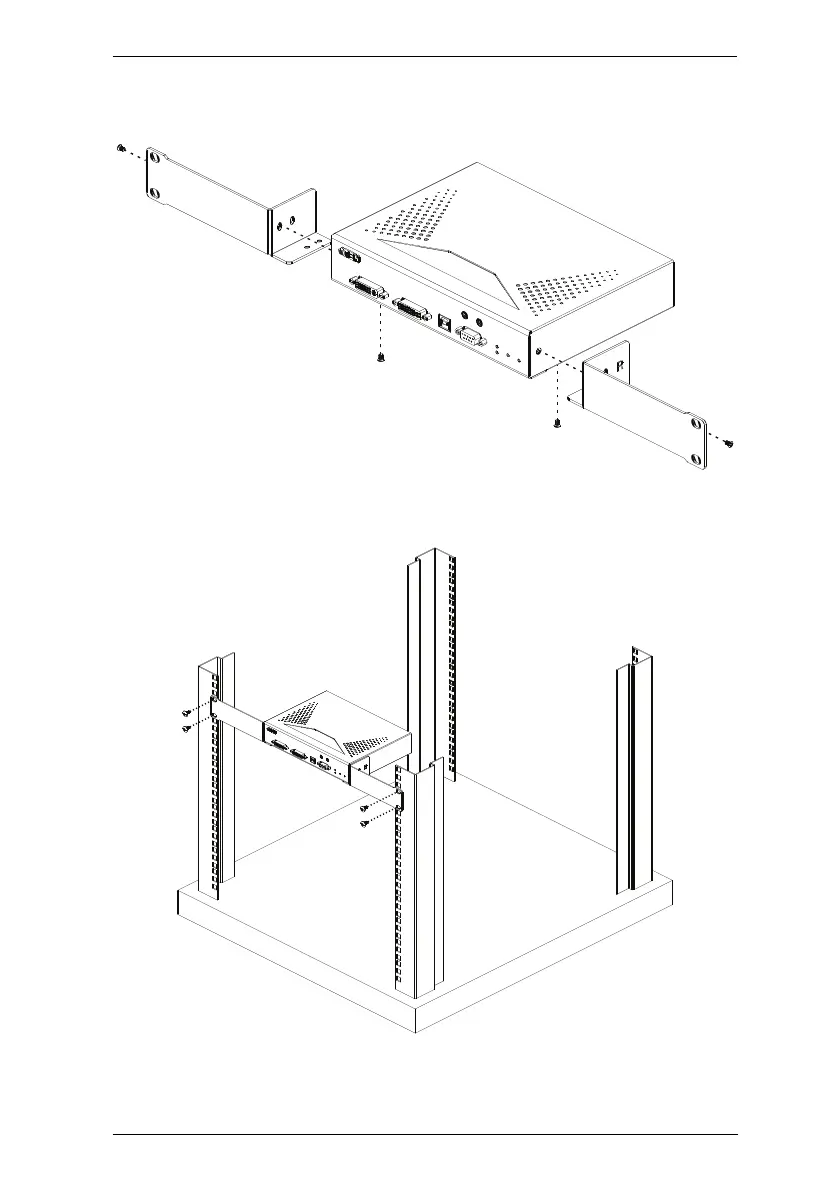

3. Use the screws in step 2 to install the right and left mounting brackets.

4. Screw the mounting brackets onto the rack.
