2000X energy Power Supply Chapter 6: Operation
Instruction Manual Setting Other Weld Parameters
011-003-991 EN 6-35
Setting Pretrigger
You can select whether the ultrasonic energy will be started before the horn makes contact
with the part. If you select ON, you can set the distance at which the pretrigger ultrasonics
will be started, and the amplitude that will be used. Autopretrigger is the default. When
Auto Pretrigger is used, ultrasonic energy will start when the horn leaves the home position
[1/8 in. (3.175 mm) travel].
Take this action… To get this result…
Using the arrow keys, scroll downward
through the menu until you see Pretrigger.
Press the Select key that corresponds to
Pretrigger.
Press the same Select key again to toggle
between Off and On.
Press Enter on the numeric keypad to save
the new value, or press Go Back/Esc to
make no change to the value.

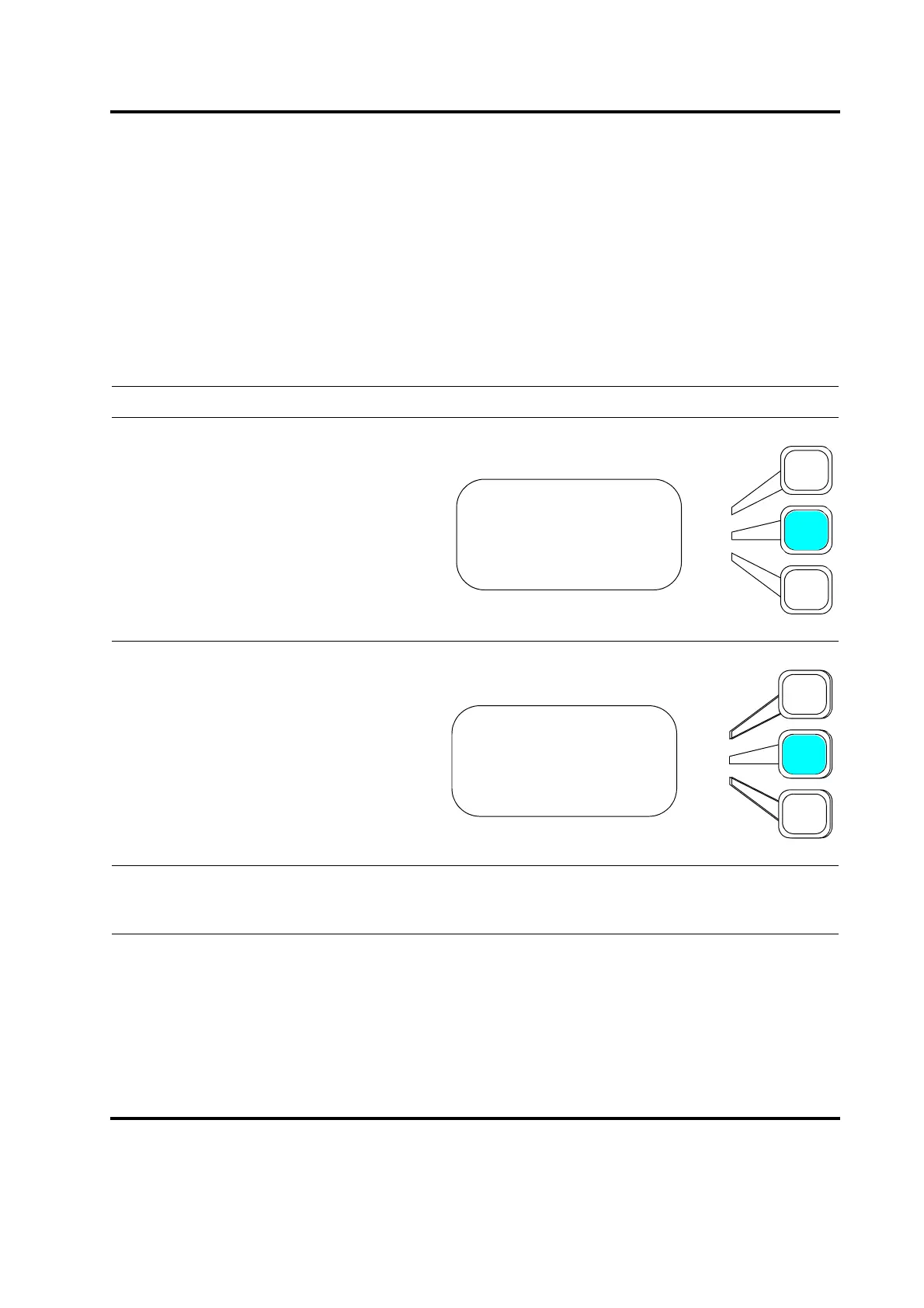

WELD SETUP Pg4of15
Amplitude(%) =100
Pretrigger> Off
Afterburst> Off
WELD SETUP Pg4of15
Amplitude(%) =100
Pretrigger> On
Afterburst Off
Select
Select
Select
Select
Select
Select
To Next Page
