5

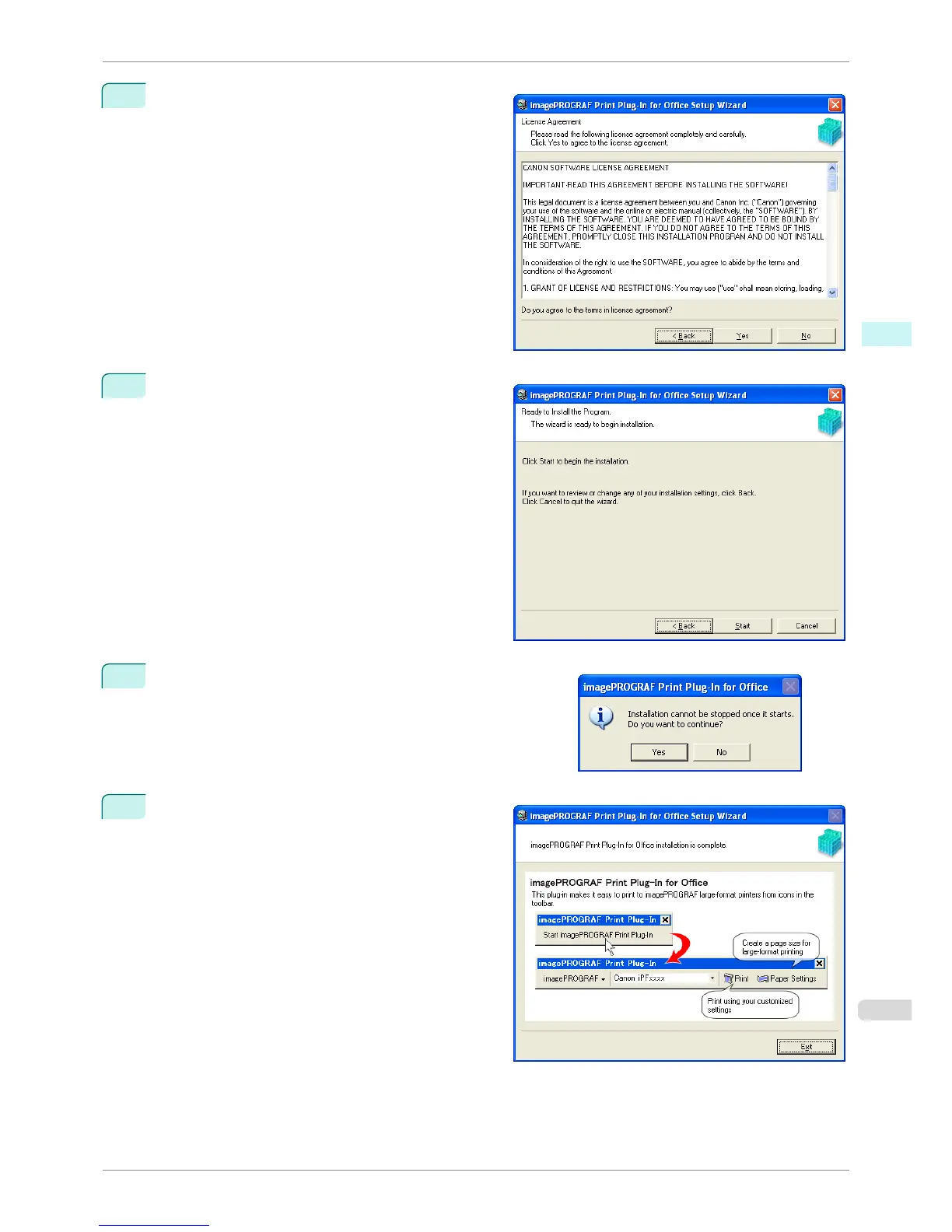

Read the License Agreement, and click the Yes

button.

6

Click the Start button.

7

Click the Yes button.

8

Click the Exit button.

The installation for Print Plug-In for Office is com-

plete.

iPF8400S

Steps to install

User's Guide

Windows Software Print Plug-In for Office

283
