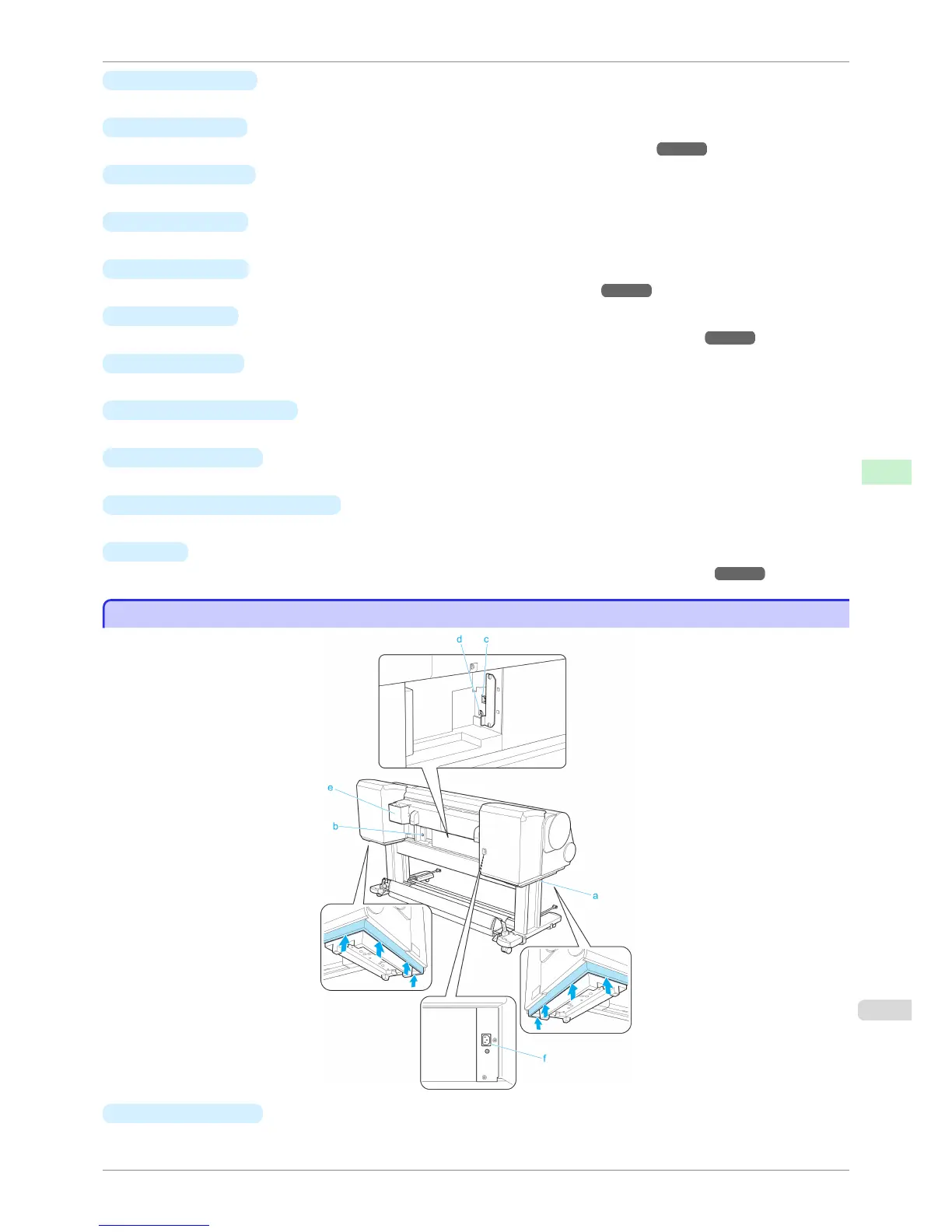

Canon IPF8400S - Back

f Ejection Support
Prevents printed documents from winding around the Roll Holder or being drawn into the Paper Feed Slot.
g Output Stacker
A cloth tray that catches ejected documents. (See "Parts of the Output Stacker.") ➔ P.499
h Paper Feed Slot
When loading a roll, insert the edge of the roll paper here.
i Holder Stopper
Secure rolls on the Roll Holder with this part.
j Ink Tank Cover
Open this cover to replace an Ink Tank. (See "Ink Tank Cover (Inside).") ➔ P.612
k
Control Panel
Use this panel to operate the printer and check the printer status. (See "Control Panel.") ➔ P.574
l Release Lever
Releases the Paper Retainer. Lift this lever toward the front of the printer when loading paper.
m Maintenance Cartridge
Absorbs ink used for maintenance purposes such as head cleaning. (Replace the cartridge when it is full.)
n Carrying Handles
When carrying the printer, have six people hold it by these handles under both sides.
o
Maintenance Cartridge Cover
Open this cover to replace the Maintenance Cartridge.
p Stand
A stand that holds the printer. Equipped with casters to facilitate moving it. (See "Stand.") ➔ P.613
Back
Back
a
Carrying Handles
When carrying the printer, have six people hold it by these handles under both sides.
iPF8400S
Back
User's Guide
