Parts of the Output Stacker
Parts of the Output Stacker

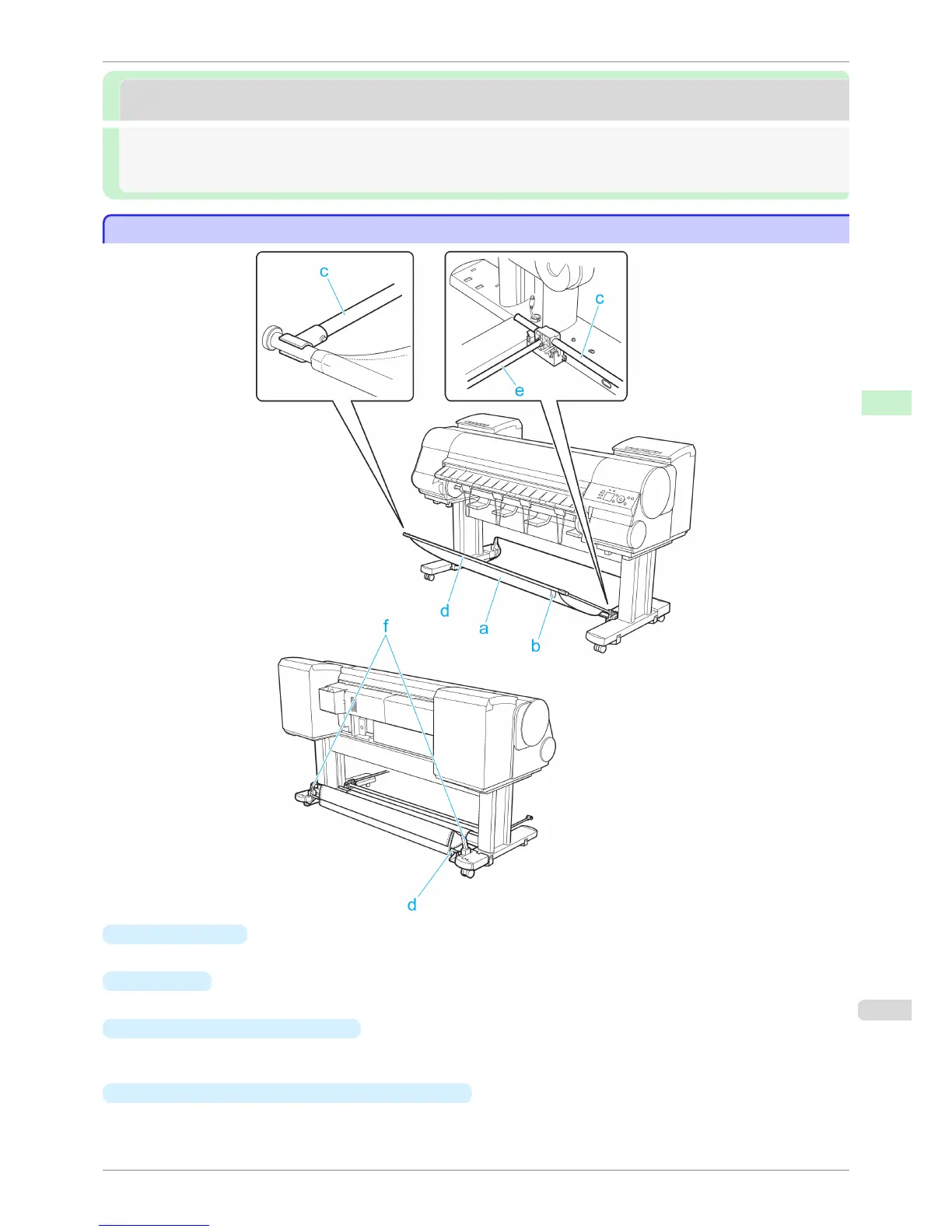

a
Output Stacker
A cloth tray that catches ejected documents.
b White tag
A point of reference for attaching the Output Stacker in the right direction.
c Basket Arm R and Basket Arm L
Holds the Basket Rod (tag side) attached to the Output Stacker. When the Output Stacker is not used, push it
down and store it next to the Stand Leg.
d
Basket Rod (tag side) and Basket Rod (cord side)
Holds the cloth Output Stacker securely in specific positions.
iPF8400S
Parts of the Output Stacker
