7.

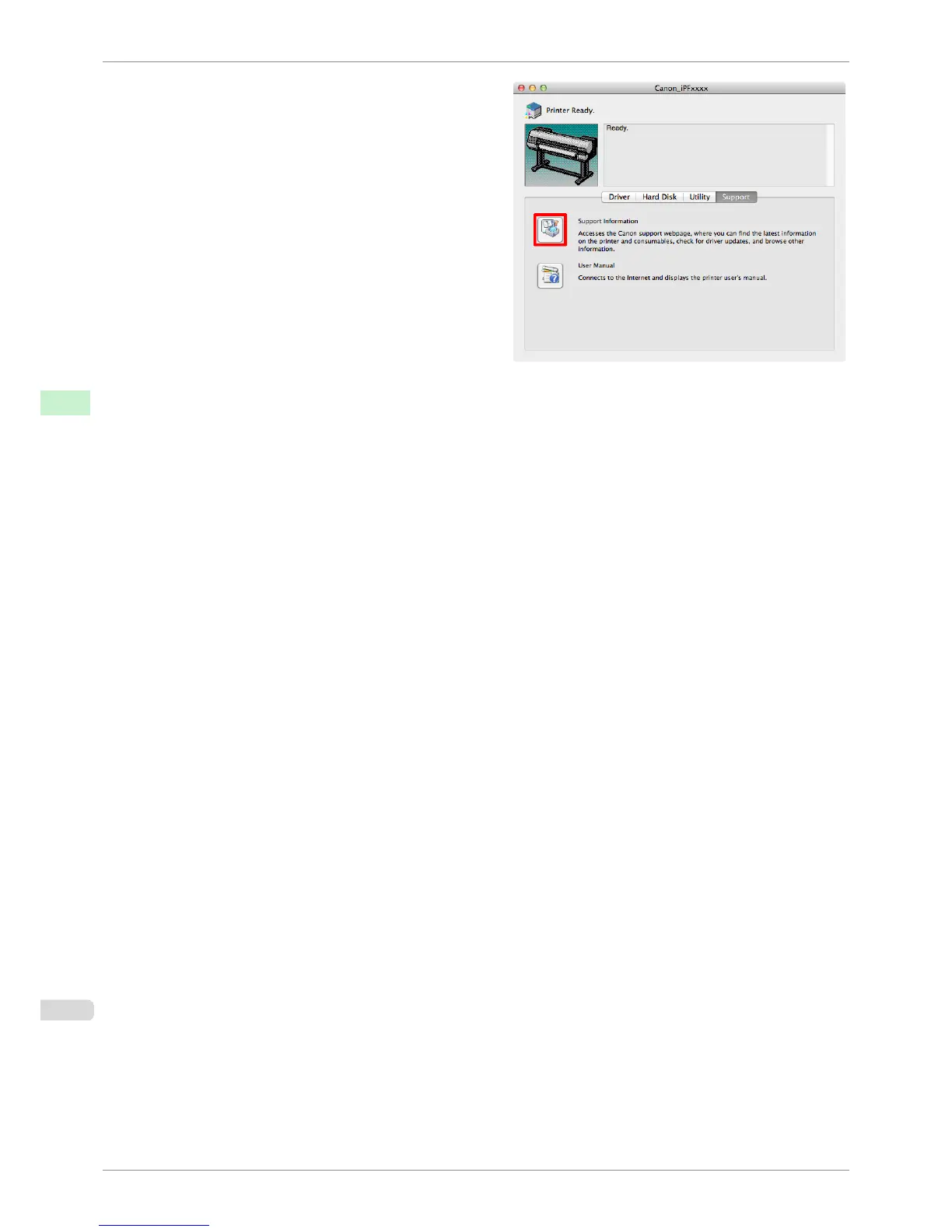

Click the Support Information button.

The default browser on your computer is started

and the imagePROGRAF webpage is displayed.

Updating paper information

iPF8400S

User's Guide

Handling and Use of Paper Paper

468
