3

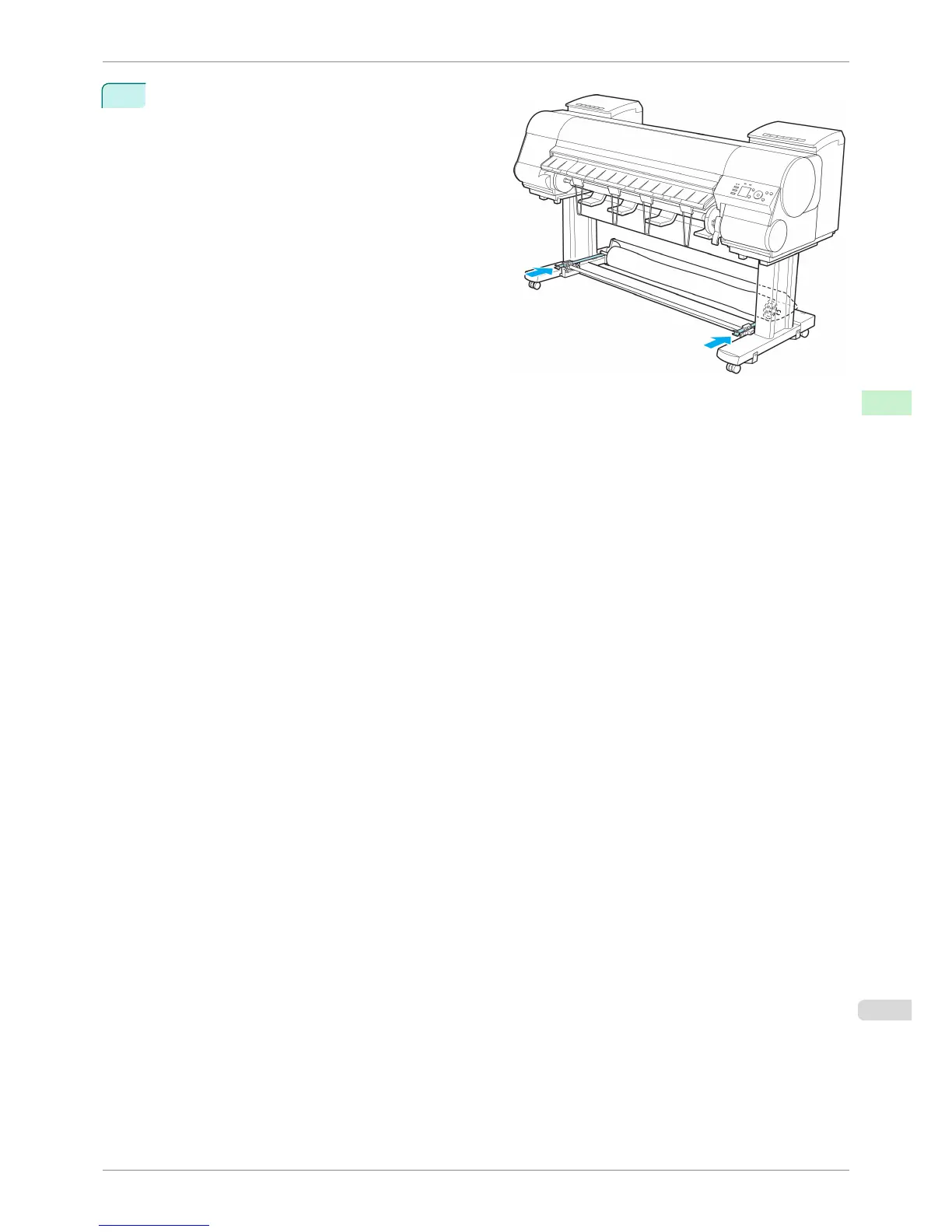

Push in the left and right basket arms toward the

back all the way, until they stop.

iPF8400S

Storing the Output Stacker

User's Guide

Handling and Use of Paper Output Stacker

505
