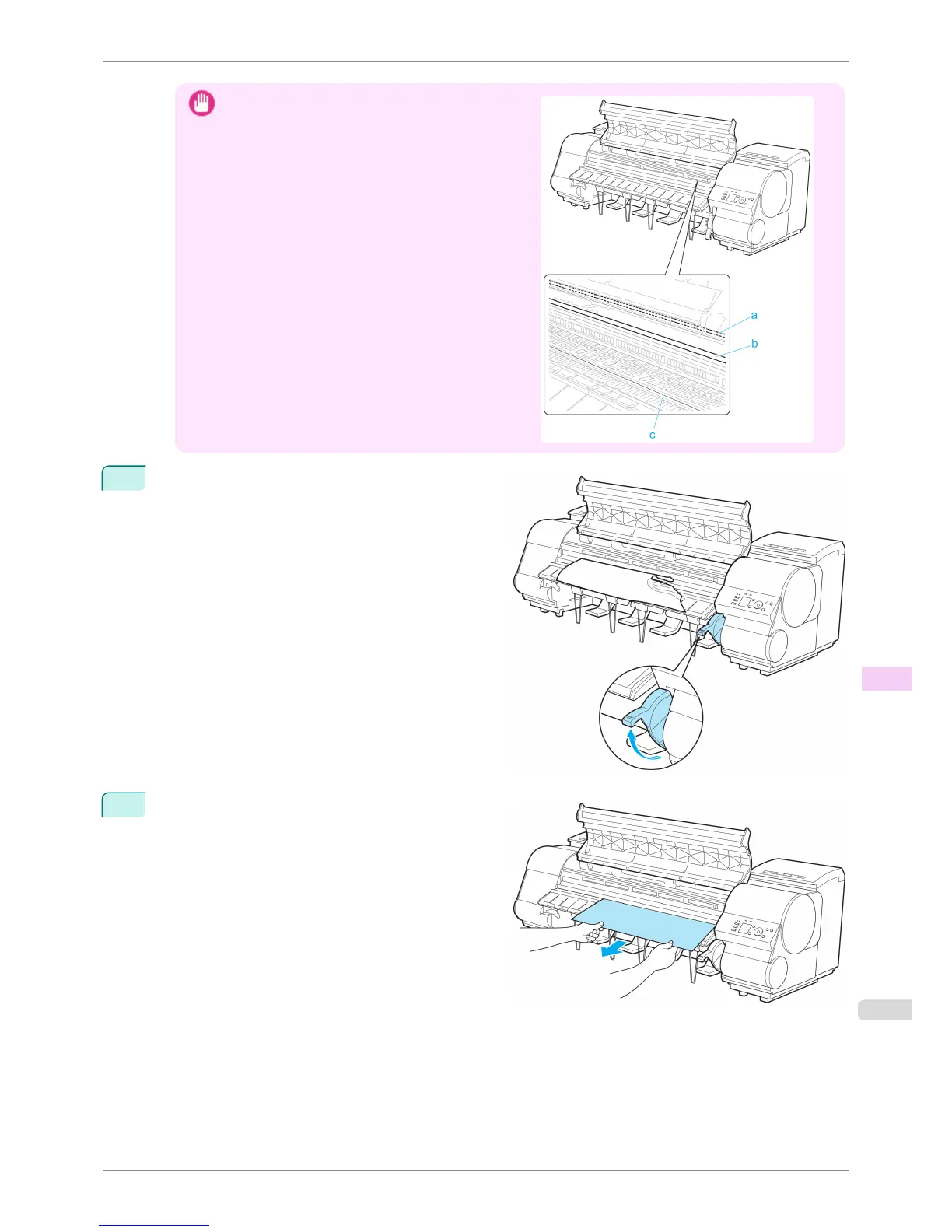

Important

•

Do not touch the Linear Scale (a), Carriage Shaft (b),

or Fixed Blade (c). This may stain your hands and

damage the printer.

4

Lift the Release Lever.

5

If the paper is visible, hold the paper and pull it out to-

ward the front.

iPF8400S

Clearing a Jammed Sheet

User's Guide

Troubleshooting Problems Regarding Paper

857
