15-6

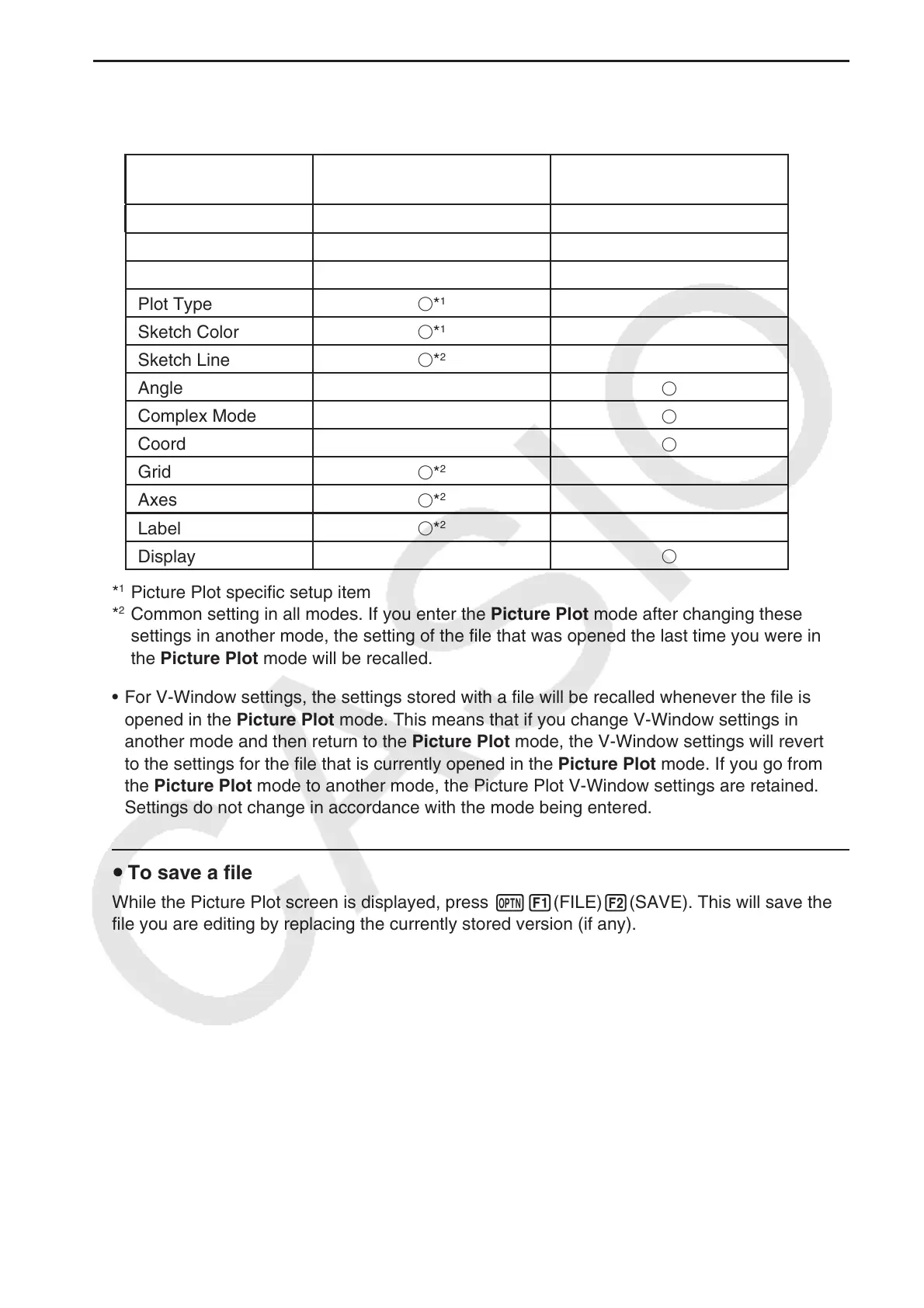

u Picture Plot Settings Saved to Image Files
• Picture Plot settings that can be changed on the Setup screen are divided into two groups:
settings that are saved in the image file and settings that are saved by the calculator.
Item name
Settings saved to the
image file
Settings saved by the
calculator
Axtrans Wind
*
1
Graph Func
Plot Color
*
1
Plot Type
*
1
Sketch Color
*
1
Sketch Line
*
2
Angle
Complex Mode
Coord
Grid
*
2
Axes
*
2
Label
*
2
Display
*
1
Picture Plot specific setup item
*
2
Common setting in all modes. If you enter the Picture Plot mode after changing these
settings in another mode, the setting of the file that was opened the last time you were in
the Picture Plot mode will be recalled.
• For V-Window settings, the settings stored with a file will be recalled whenever the file is
opened in the Picture Plot mode. This means that if you change V-Window settings in
another mode and then return to the Picture Plot mode, the V-Window settings will revert
to the settings for the file that is currently opened in the Picture Plot mode. If you go from
the Picture Plot mode to another mode, the Picture Plot V-Window settings are retained.
Settings do not change in accordance with the mode being entered.
u To save a file
While the Picture Plot screen is displayed, press K1(FILE)2(SAVE). This will save the
file you are editing by replacing the currently stored version (if any).
