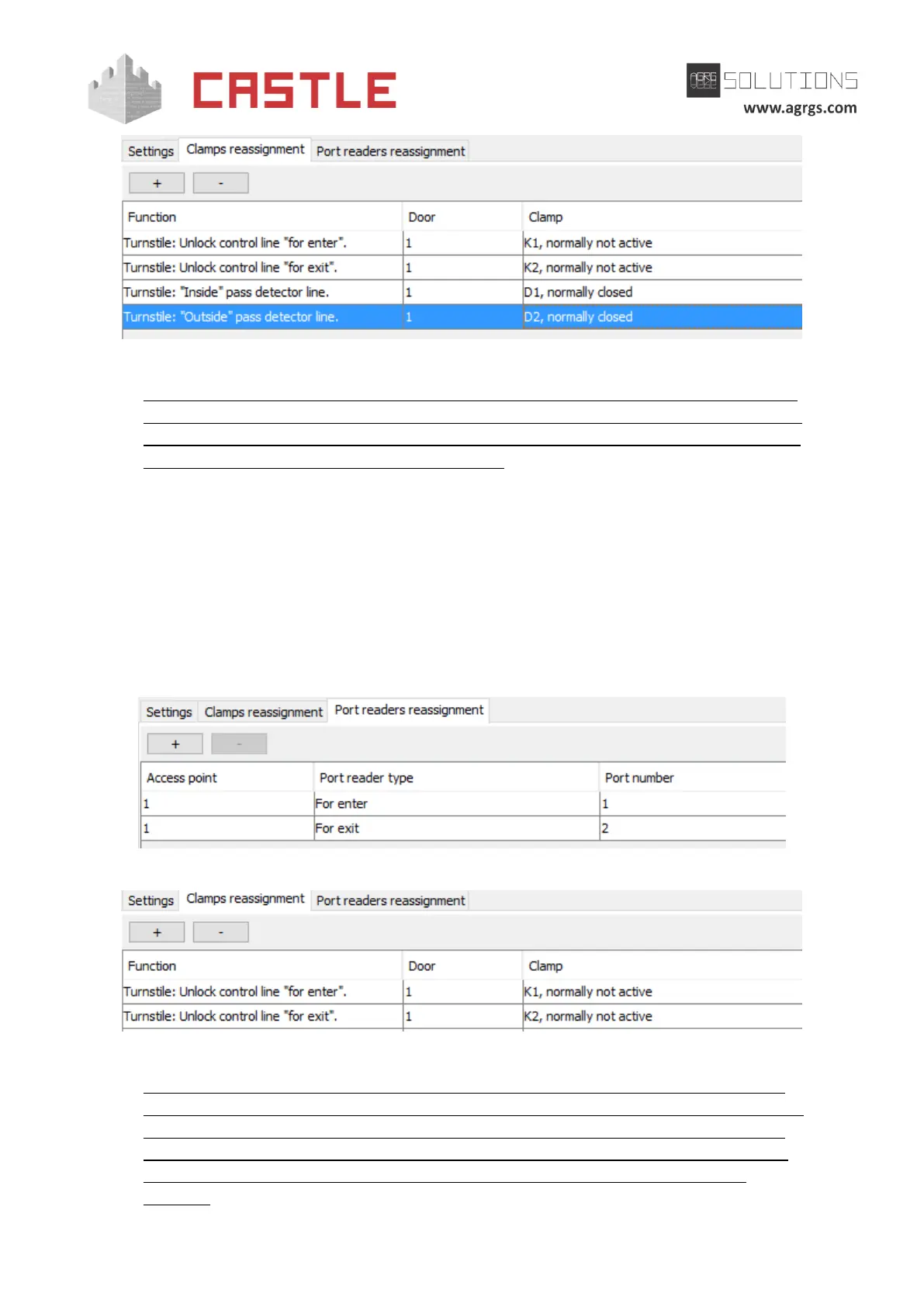

Pic 132. Reassigning terminals
2. After the passage through the turnstile is completed, it is registered by the system as
if it was a break-in in the passage direction (e.g., someone has presented a card at the
entrance, the turnstile has opened in the IN direction, but the passage was registered
by the system as a break-in in the IN direction).
Do the following stepwise:
● Change the IN/OUT direction of the readers, by reversing the wires on PORT1 and
PORT2 terminals of the controller or using the terminal reassignment function
(Clamps reassignment tab).
● Change the direction of feeding commands "Open IN" and "Open OUT", by
reversing the wires on K1 and K2 terminals of the controller relay or using the
terminal reassignment function.
Here is an example of reassigning readers and terminals for the above described case:
Pic 133. Reassigning reader ports
Pic 134. Reassigning terminals
3. When the passage is authorized, the turnstile opens in the opposite direction. After
the turnstile bars are rotated in the opened direction, the passage is registered by the
system as if it was a passage in the correct direction (e.g., someone has presented a
card at the entrance, the turnstile has opened in the OUT direction, but the passage
was registered by the system as a passage in the IN direction after the bars are
rotated).
