To eliminate mutual influence of sensors, it is recommended to mount them according to the
following scheme: "At one wall the transmitter of the first sensor and the receiver of the second
one; at the opposite wall the receiver of the first sensor and the transmitter of the second one".
Sensor A is triggered first on OUT passage. Sensor B is triggered first on IN passage.

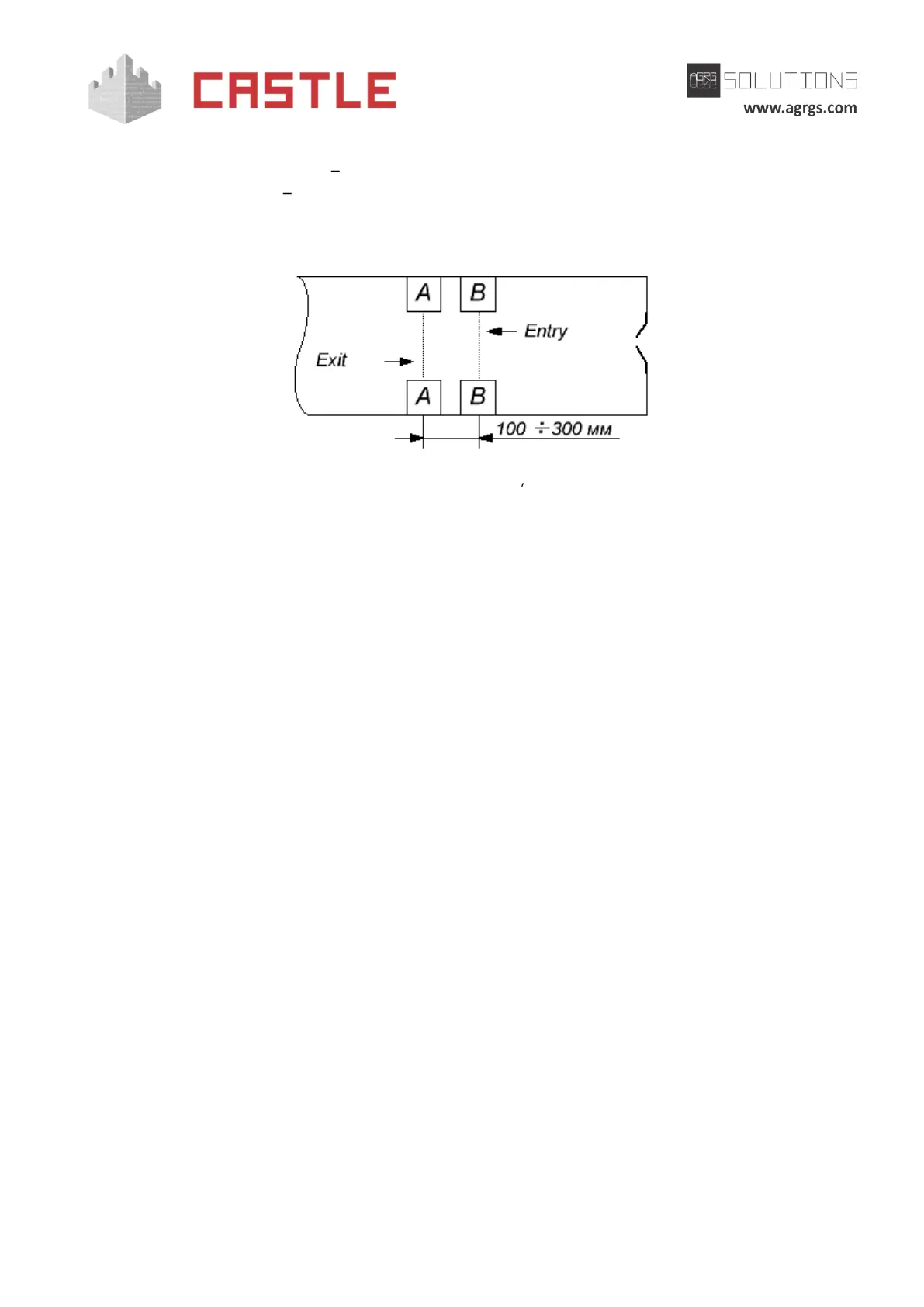

Pic 18. Example of the passage sensors location in the hallway
